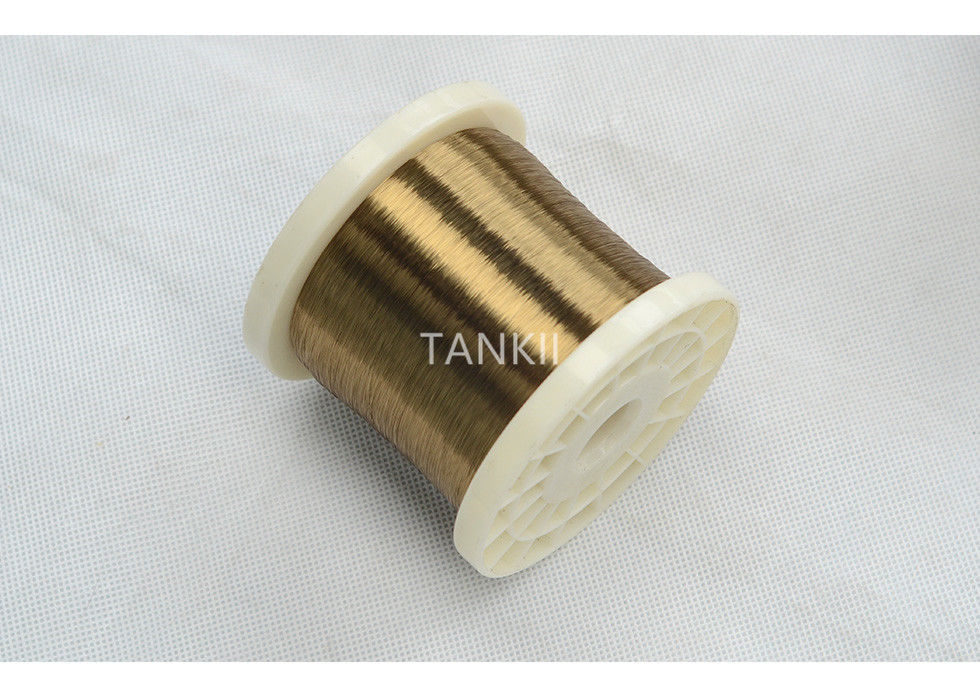

High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance

High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance

    • High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance
    • High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance
    • High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance
    • High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance
  • High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: Constantan

    Payment & Shipping Terms:

    Minimum Order Quantity: 15kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Conductor Wire: Constantan Temperature Class: 130, 155, 180
    Diameter: As Clients Required Enamel: Polyurethane,Polyester Imine...
    Thickness: Single, Double, Etc BDV: According To The Wire Diameter

    0.15mm Constantan/ Manganin 1UEW/155 Enamelled Wire/ Varnished Wire





    Constantan is a copper-nickel alloy that contains small amounts specific to others
    elements to achieve precise values of the resistivity of the temperature coefficient. The fusion control and conversion practices bring a very low level of holes of ultra-thin thickness.
    Aluminum alloy is widely used for resistors and voltage meters.
    Our company produces alloy sheet, metal sheet, steel sheet with thickness 0.005mm-0.1mm (5um-100um), width 1mm-1330mm



    The company also offers: cuni1 cuni2 cuni6 cuni8 cuni10 cuni19 cuni19 cuni30 cuni34 cuni44 cumn3 and constantan 6 j40 j11

    Copper and nickel and purpose: according to the characteristics of low resistance alloy has good resistance to corrosion, good welding performance and machining performance, wide application and thermal overload relays, electrical elements in low-voltage circuit breaker and other low-voltage devices .
    Range range specifications
    Thickness: 0.01-7 (mm) Width: 5-300 (mm), Wire diameter 0.05-7 (mm)
    Copper-nickel low resistance alloy CuNi23 (NC030), main technical parameters
    Main Chemical Composition Ni, Mn, Cu



    Standard: IEC, NEMA, GB,JIS
    Thermal Class: 130,155,180 centigrade



    Enameled types : UEW,QA
    Certification:UL Approved, iso9001, iso14001,RoHS,REACH

    Product details:

    Insulation-enamelled Name Thermal LevelºC
    (working time 2000h)
    Code Name GB Code ANSI. TYPE
    Polyurethane enamelled wire 130 UEW QA MW75C
    Polyester enamelled wire 155 PEW QZ MW5C
    Polyester-imide enamelled wire 180 EIW QZY MW30C
    Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
    (DFWF)
    QZY/XY MW35C
    Polyamide-imide enamelled wire 220 AIW QXY MW81C



    Product Features:

    High breakdown voltage

    Good adhesion

    Few pinhole

    Sustained and stable quality

    Main Applications :

    All kinds of household electric motors, vacuum cleaner motor, electric motor

    All kinds of transformers, inductors, rectifiers

    Fan motor



    Max Continuous Service Temp 0-45ºC
    Resisivity at 20ºC 0.47±0.03ohm mm2/m
    Density 8.44 g/cm3
    Thermal Conductivity -3~+20KJ/m·h·ºC
    Temp Coefficient of Resistance at 20 ºC -2~+2α×10-6/ºC(Class0)
    -3~+5α×10-6/ºC(Class1)
    -5~+10α×10-6/ºC(Class2)
    Melting Point 1450ºC
    Tensile Strength(Hard) 635 Mpa(min)
    Tensile Strength,N/mm2 Annealed,Soft 340~535
    Elongation 15%(min)
    EMF vs Cu, μV/ºC (0~100ºC) 1
    Micrographic Structure austenite
    Magnetic Property non
    Micrographic Structure Ferrite
    Magnetic Property Magnetic

    High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance

    High Temperature Resistant Enameled Winding Wire Constantan Corrosion Resistance
