Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification

Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification

    • Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification
    • Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification
    • Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification
    • Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification
  • Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: Rohs, SGS
    Model Number: Pt100 / RTD

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 Meters
    Price: USD 0.9Meter
    Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Insulation Material: PTFE , PFA, Ptfe Fep Conductor Type: Solid Or Multi
    Standard: ANSI, IEC Leading Time: 5~7 Days After Getting The Deposit
    Type: Kx, Tx Jx Type Thermocouple Cable Item: 20AWG Rubber /PVC / Fiberglass Insulated RTD Cable / PT100 Cable 7*0.3mm With 3 Tined Copper Wire Cores

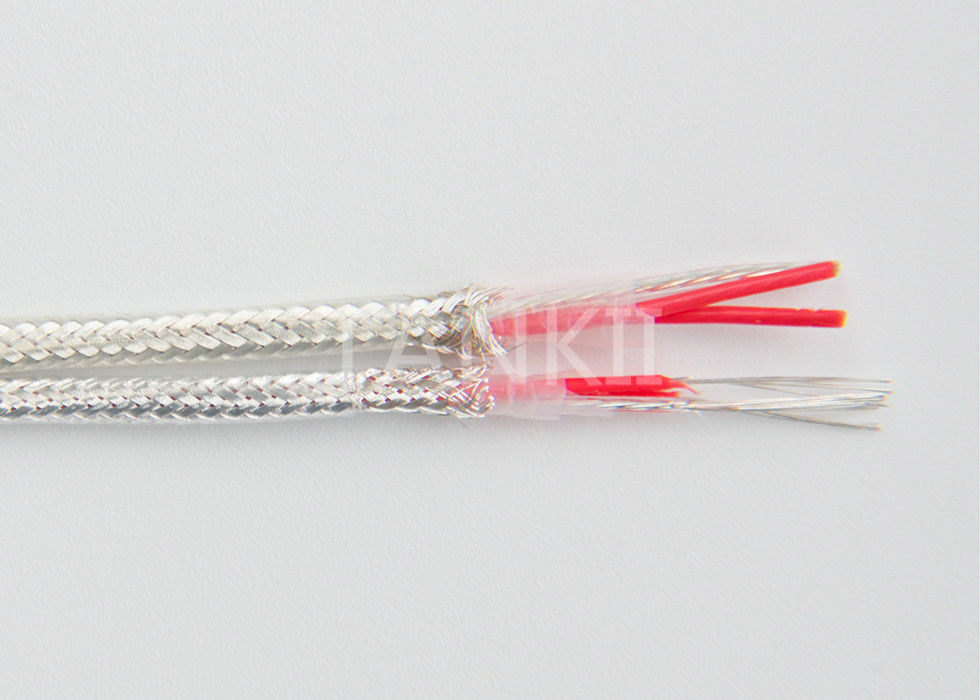

    20AWG Rubber /PVC / Fiberglass insulated RTD Cable / PT100 Cable 7*0.3mm With 3 Tined Copper Wire Cores

    A thermocouple is composed of two wires made from dissimilar metals. These two wires are joined to form a temperature measurement junction. Each wire is made of a specific metal or metal alloy. For example, the positive (+) conductor of a type K thermocouple is made of a chromium/nickel alloy called chromel and the negative (-) conductor is made of an aluminum/nickel alloy called alumel. Wire used to make a thermocouple junction is called thermocouple wire.

    Thermocouple types
    Industry specifications recognize different types of thermocouples and thermocouple wires with a letter designating each type. Some common types are K, J, T and E. Different thermocouple types have different temperature ranges over which they can be used successfully. The chemical make-up of each thermocouple alloy, the temperature error limits allowed, and the color codes for each thermocouple type are specified in ISA/ANSI standard MC96.1. The important thing to remember from an application standpoint is that the thermocouple wire type must match the thermocouple type.

    Extension Wire
    Thermocouple extension wire types such as KX, JX, TX and EX are used to connect the measuring junction to the temperature recording or process control instrumentation. This can be hundreds or even thousands of feet away. Extension wire is normally exposed to temperatures and other environmental conditions that are less extreme than those encountered by the measuring junction. As a result, "extension" grade wire is not calibrated above 400° F (204° C) and is typically insulated and jacketed with materials with lower temperature ratings. Since low voltage instrumentation signals are being carried thermocouple extension wire is often shielded.

    Resistance Temperature Detectors (RTDs)
    There are other temperature measurement technologies than the thermocouple such as RTDs (resistance temperature detector). In applications with temperatures above 1,200° F (650° C) thermocouple is used. At lower temperatures RTDs are used for their simpler operation and greater sensitivity and stability. Thermocouples have a better response time. RTDs are special resistors whose resistance value changes with temperature in a known way. RTDs are connected to the temperature recording or process control instrumentation using ordinary copper instrumentation cable. Thermocouple wire is not required to connect an RTD.

    Typical RTD cable is standard instrumentation cable in two, three, or four conductors or possibly groups of pairs/triads/quads depending on the type of RTD being used and number of devices being monitored. Individual or overall shielding is often used for noise immunity.




    Properties of insulation materials

    Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
    PE 80 Good Excellent Excellent Excellent Poor
    PVC 105 Very Good Very Good Good Fair Excellent
    TPE 125 Excellent Poor Good Good Excellent
    SILICONE 200 Good Good Excellent Excellent Excellent
    FEP 200 Excellent Excellent Excellent Excellent Excellent
    PFA 260 Excellent Excellent Excellent Excellent Excellent
    PTFE 260 Good Excellent Excellent Excellent Excellent
    B-GLASS FIBER 260 Good Good Fair Good Good
    G-GLASS FIBER 510 Poor Good Good Excellent Excellent
    Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
    VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
    MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent



    Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification



    Packaging & Delivery
    Packaging Details Roll with plastic film wrapped and carton package
    Delivery Detail Shipped in 7 days after payment


    Rubber / PVC / Fiberglass Insulated RTD Cable / 20AWG PT100 Cable SGS Certification




    FAQ:
    1. Payment ways?
    T/T, PAYPAL, WESTUNION.

    2. When will you arrange the production?
    In 12 hours since we get your payment.

    3. Product certifications?
    MTC , ISO9001, ROHS , SGS as customers' request

    4. What kind of informations shall I give you regarding the shipping?
    Company name, Recipients, Correct Address, telephone, zip code.

    5. What is your warranty ?
    For most of our products, the warranty will be 12 months.

    6. When will I get a solution for defective products?
    Within 48 hours (on working days )

    7. What is your shipping way?
    DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

    8. What is your shipping time?
    For General Orders, the shipping time will be 7 workdays.

    20AWG Rubber /PVC / Fiberglass insulated RTD Cable / PT100 Cable 7*0.3mm With 3 Tined Copper Wire Cores

    Welcome to call me or email to me for more info on thermocouple cable , RTD cable.
