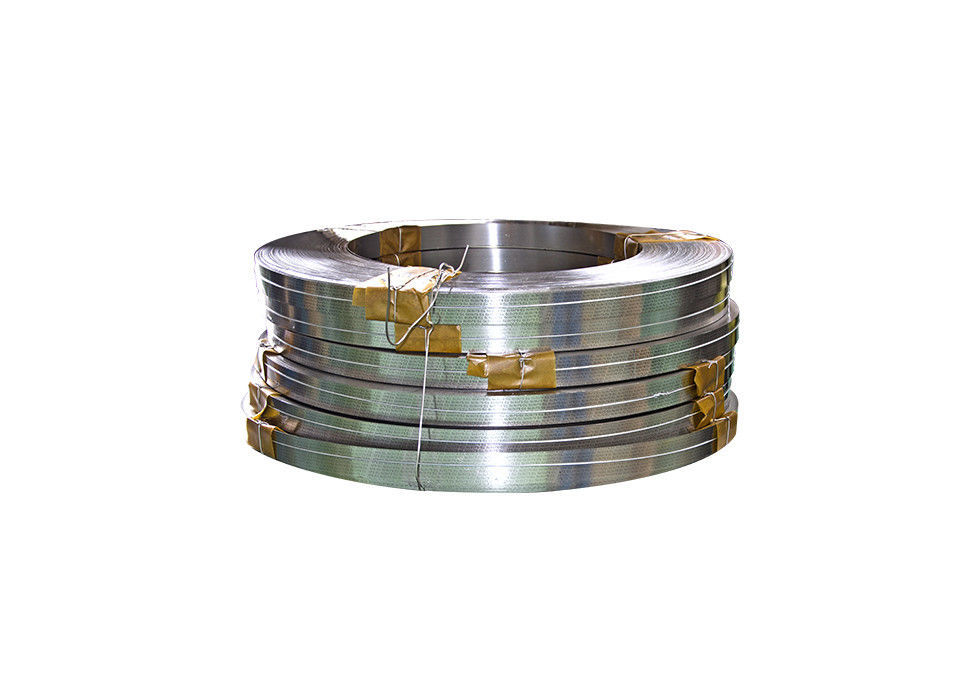

High Sensitive Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1

High Sensitive Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1

    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
    • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1
  • High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ROHS、SGS
    Model Number: P675R

    Payment & Shipping Terms:

    Minimum Order Quantity: 50KG
    Price: negotiation
    Packaging Details: Wooden Case
    Delivery Time: 15~30 working days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 3000 Tons Per Year
    Contact Now
    Detailed Product Description
    Specific Deflection: 15.5 Resistivity: 78.0*(±5%)
    Density: 8.1g/cm³ Useful Deflection Temperature: -70~350℃
    Linearity Temperature: -20~200℃ Flexivity: 28.5*(1±4%)
    Modulus Of Elasticity: 15.5 Use: Temperature Compensation Element
    Features: High Resistivity Name: TB1577A
    Maximum Temperature: 450℃

    High Sensitive Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1

    A bimetallic strip is used to convert a temperature change into mechanical displacement. The strip consists of two strips of different metals which expand at different rates as they are heated, usually steel and copper, or in some cases steel and brass. The strips are joined together throughout their length by riveting, brazing or welding. The different expansions force the flat strip to bend one way if heated, and in the opposite direction if cooled below its initial temperature. The metal with the higher coefficient of thermal expansion is on the outer side of the curve when the strip is heated and on the inner side when cooled
    The sideways displacement of the strip is much larger than the small lengthways expansion in either of the two metals. This effect is used in a range of mechanical and electrical devices. In some applications the bimetal strip is used in the flat form. In others, it is wrapped into a coil for compactness. The greater length of the coiled version gives improved sensitivity.



    Grade 5J1580
    High expansion layer Ni20Mn6
    Low expansion layer Ni36


    Description:
    Chemical composition(%)


    Grade C Si Mn P S Ni Cr Cu Fe
    Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.



    Grade C Si Mn P S Ni Cr Cu Fe
    Ni20Mn6 ≤0.05 0.15~0.3 5.5~6.5 ≤0.02 ≤0.02 19~21 - - Bal.



    Physical properties
    >Density (g/cm3): 8.1
    > Allowable temperature (ºC): -70~ 350
    Linear temperature (ºC): -20~ 180
    >Electrical resistivity (μΩ*m): 0.8 ±5% (20ºC)
    >Thermal conductivity ( W/m. ºC): 12
    >Bending K / 10-6 ºC-1(20~135ºC): 15
    > Elastic Modulus, E/GPa 147~177



    High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1


    Application: The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.

    Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
    Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.



    High Sensitive 	Precision Alloy Thermal Bimetallic Strips TB20110/721-110/108SP/P675R/BR-1



    Overview
    Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.

    The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.

    System of heat treatment: heat sensitive resistance, resistivity and elastic modulus of samples before the measurement must undergo heat treatment, to eliminate stress.

    Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction
