Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2015
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To be negotiated
Packaging Details: Spool, carton, plywood case according to requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 30+TON+MONTH
Material: |
Nickel Based Alloy |
Shape: |
Flat Strip/ Ribbon |
Colour: |
Silver Grey |
Resistivity: |
1.09 |
Density: |
8.4g/cm3 |
Application: |
Heating, Resistors |
Material: |
Nickel Based Alloy |
Shape: |
Flat Strip/ Ribbon |
Colour: |
Silver Grey |
Resistivity: |
1.09 |
Density: |
8.4g/cm3 |
Application: |
Heating, Resistors |

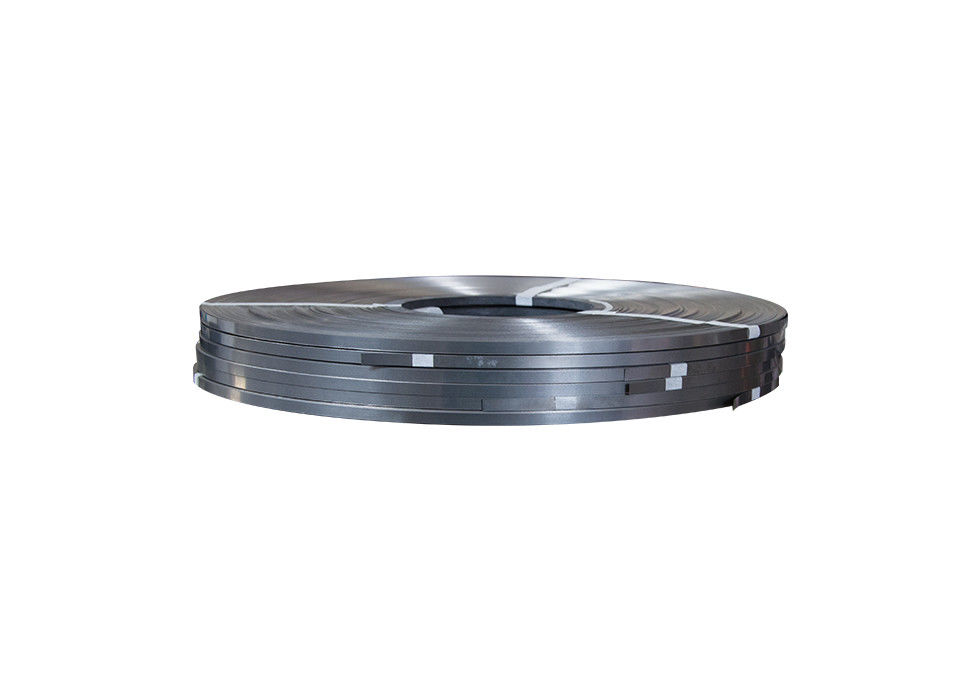

Good Performance Nichrome/ Nickel based Alloy Bright Flat Strip/ Ribbon
Nickel based alloys are used in those applications that require enhanced properties when compared to stainless steel. As a superior product to stainless, these alloys are reserved for the most demanding of environments from extremely high temperatures to the most corrosive of atmospheres. We have the equipment, knowledge, imagination and technology to allow them to deliver on the most demanding specifications.
For the past five years we have gained a highly enviable reputation for our knowledge in these areas and are now one of the leading UK suppliers of nickel based alloy strip, all produced to customer specification and so understanding our customers requirements is central to our philosophy.
| Material/performane | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composition % | Ni | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 34.0～34.0 |
| Cr | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Maximum temperature℃ | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point℃ | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density g/cm3 | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Resistivity μΩ·m,20℃ | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat J/g.℃ | 0.440 | 0.461 | 0.494 | 0.500 | 0.500 | |
| Thermal conductivity KJ/m.h℃ | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion a×10-6/℃ (20～1000℃) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic |
|
