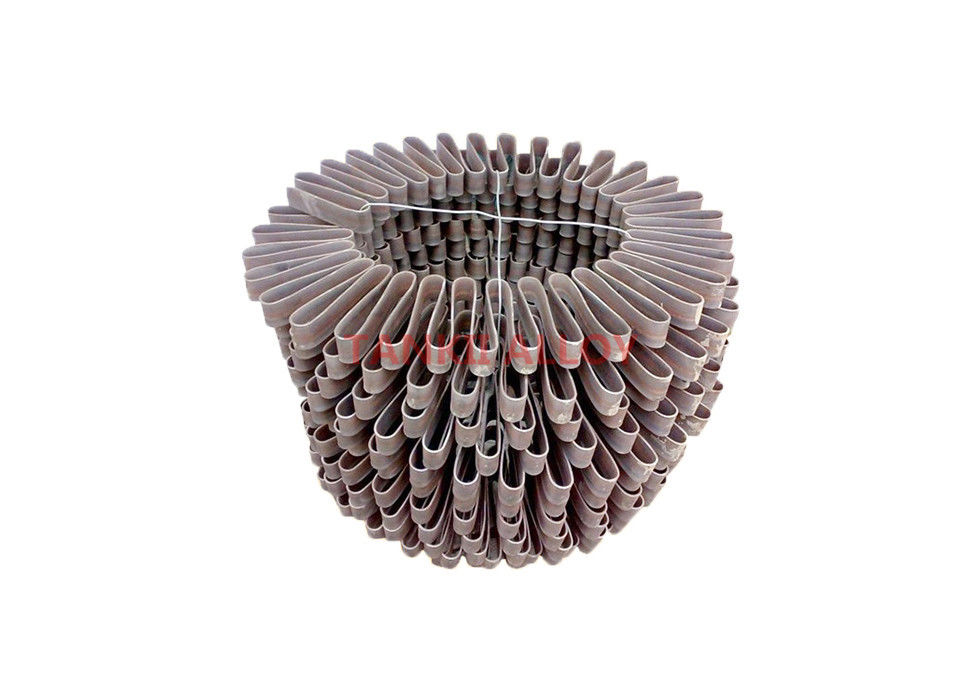

OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire

OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire

    • OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire
    • OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire
    • OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire
    • OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire
  • OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire

    Product Details:

    Place of Origin: China Mainland
    Brand Name: TANKII
    Certification: ISO9001
    Model Number: Tubular Heat Exchanger

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pc
    Price: usd0.5~5/pc
    Packaging Details: In Coil
    Delivery Time: 5~20 days after getting the payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 tons/year
    Contact Now
    Detailed Product Description
    Package: Wooden Box Leading Time: 7~20 Dyas After Getting The Payment
    Item: Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire Used For Heating Elements For Furnace Material: FeCrAl , NiCr

    Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire Used for Heating Elements for Furnace



    OEM designed customized heating element and heater for different kind of electric appliance: home appliance and electric industrial equipment

    Stainless Steel Finned tubular heating elements for forced air heating is designed for use in natural and forced convection space heating. our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments.

    Finned tubular heaters are used for forced convection heating, air or gas heating heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.



    Normal composition% of Chromel AA / Ni80Cr20

    C P S Mn Si Cr Ni Al Fe Other
    Max
    0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -


    Typical Mechanical properties(1.0mm) of Chromel AA / Ni80Cr20

    Yield strength Tensile Strength Elongation
    Mpa Mpa %
    420 810 30


    Typical Physical properties of Chromel AA / Ni80Cr20

    Density (g/cm3) 8.4
    Electrical resistivity at 20ºC(Om*mm2/m) 1.09
    Conductivity coefficient at 20ºC (WmK) 15
    Coefficient of thermal expansion
    Temperature Coefficient of Thermal Expansion x10-6/ºC
    20 ºC- 1000ºC 18



    Specific heat capacity of Chromel AA / Ni80Cr20
    Temperature 20ºC
    J/gK 0.46
    Melting point (ºC) 1400
    Max continuous operating temperature in air (ºC) 1200
    Magnetic properties non-magnetic
    Temperature Factors Of Electrical Resistivity of Chromel AA / Ni80Cr20
    20ºC 100ºC 200ºC 300ºC 400ºC 600ºC
    1 1.006 1.012 1.018 1.025 1.018
    700ºC 800ºC 900ºC 1000ºC 1100ºC 1300ºC
    1.01 1.008 1.01 1.014 1.021 -





    Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire Used for Heating Elements for Furnace


    Types:
    Stainless Steel heating element
    Normal steel tubular heating element
    steel heating element with copper coated
    Aluminum heating element .
    Infrared quartz heating element
    Copper heating element
    heater plate
    heating plate







    Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire Used for Heating Elements for Furnace


    The heating element can be made in different shape: round , square , retangular...
    We supply heating element for different kind of electric appliance , home used, commercial used and industrial used:
    For example :
    Toaster heating element
    Oven heating element
    Grill heating element
    heater heating element
    heater plate for coffe machine or electric water boiler
    rice cooker heating element
    air conditioner heating element
    Heating element for industrial electric equiments:
    heating element for hot runner
    heating element for central air condittioner
    heating element for water mold heater and oil mold heater
    heating element for steamer
    heating element for commerical used oven etc...
    Heating element for material dryer
    Heating element for food making systerm
    we are able to make the heating element according to your requiments, if there is any project, pls contact us.Industrial Used Heating Element, Heater for Industrial Oven, Food Equipment



    OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire



    Features:
    1, Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
    2, Tube diameter: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
    3, Several standard formations and mounting bushings available.
    3, Standard fin is SUS304, other Sheath and fin material available
    4, 120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
    5, Various shape: Straight type, U type, W type, Roud type and so on



    OEM Furnace Heating Element Chromel AA NiChrome Ni80Cr20 Flat Strip / Thick Wire

    When you inquiry, pls sspecify the following details

    1) If have drawing, it will be helpful.
    2) Power, voltage, shape
    3) Working temperature
    4) Material requirement
    5) Quantity
    6) Other requirement required.



    Welcome to contact us if there is any plan on heating elements requirement.
