K / E / T Type Thermocouple Connector , Mini Male And Female Connectors

K / E / T Type Thermocouple Connector , Mini Male And Female Connectors

    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
    • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors
  • K / E / T Type Thermocouple Connector , Mini Male And Female Connectors

    Product Details:

    Place of Origin: China mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: K / J / T/ E/ B / S / R

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pcs
    Price: Negotiation
    Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
    Delivery Time: 3-5 days after getting the payment
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 5000 Piece/Pieces per day
    Contact Now
    Detailed Product Description
    Color: IEC Color/ ANSI Color Standard: IEC
    Type: K, E, J, T. N.S./R Rated Current: 10A/15A/16A
    Available Size: Mini And Standard Customized: Avaliable
    Item: Thermocouple Connectors K Type E Type T Type Standard / Mini Male And Female Connectors In Stock

    Thermocouple Connectors K Type E type T type Standard / Mini Male and Female Connectors In Stock



    Quick Details



    Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.

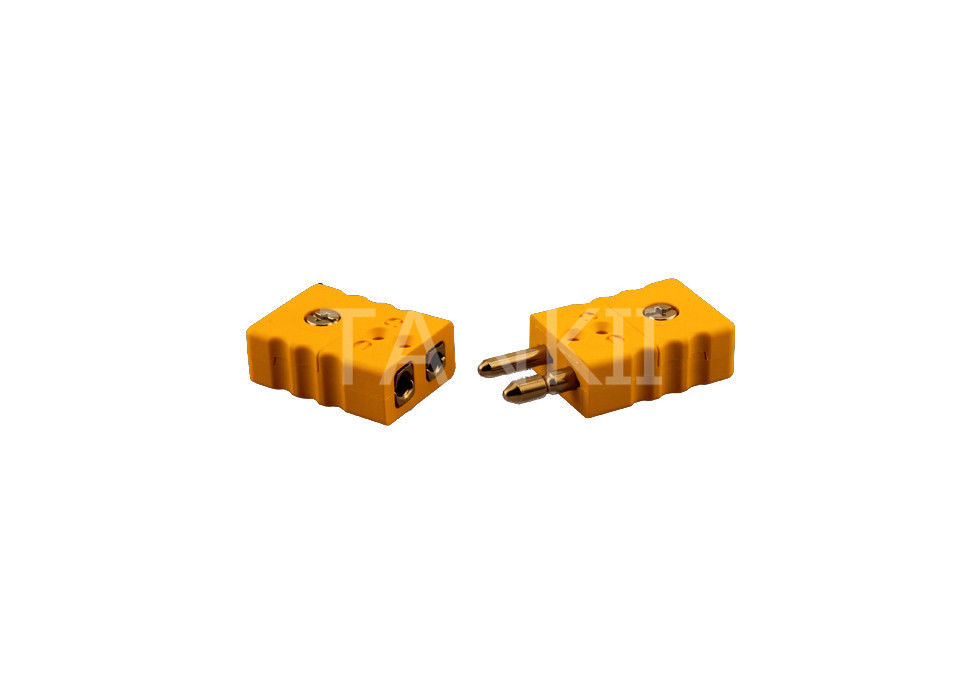

    Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.
    Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.


    All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.





    STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS

    1. Solid Pin Design
    2. High Quality Thermoplastic body
    3. Polarized Round pins made from Thermocouple Alloys
    4. Central cover screw design for quick wiring
    5. Molded barriers to prevent short circuit of conductors
    6. Captive cover screw for easy assembly
    7. Easy wire connection through sandwich construction
    8. Stainless Steel Screws
    9. Molded barriers to prevent short circuit

    10. Available in all calibrations; Type B, E, J, K, N, R, S, T

    K / E / T Type Thermocouple Connector , Mini Male And Female Connectors



    Thermocouple Connectors K Type E type T type Standard / Mini Male and Female Connectors In Stock



    Connector Type and Color

    Type Color Conductor Material
    KX yellow ( ANSI ) or green ( IEC ) NiCr-NiSi
    NX orange NiCrSi-NiSiMg
    EX purple NiCr-CuNi
    JX black Fe-CuNi
    TX blue Cu-CuNi
    R/S green Cu-CuNi
    PT100 white Cu/Ni



    Pack and delivery:

    Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm GW:22kg

    Delivery time : 5-7 days after getting the payment

    Delivery: By express



    Application:K / E / T Type Thermocouple Connector , Mini Male And Female Connectors

    K / E / T Type Thermocouple Connector , Mini Male And Female Connectors







    Related Product

    K / E / T Type Thermocouple Connector , Mini Male And Female Connectors



    About Us



    Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wires, thermocouple ribbon wire, thermocouple strips, thermocouple rods, thermocouple connectors and etc.


    Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.



    Thermocouple Connectors K Type E type T type Standard / Mini Male and Female Connectors In Stock



    Welcome to email to me for more information on thermocouple connector.
