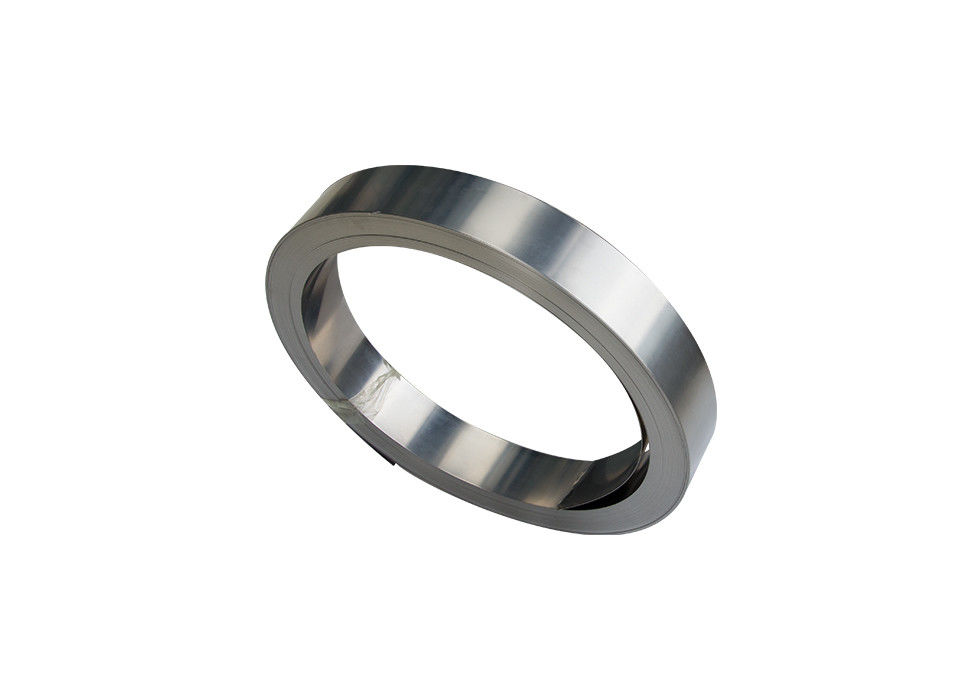

0.01mm-0.05mm Constantan Alloy CuNi44 Foil / Strip For Precision Sensor

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: To be negotiated

Packaging Details: Spool, carton, plywood case according to requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Material:
CuNi Alloy
Composition:
Cu Ni
Other Grade:
Constantan/ Cuni44/ Cuni40
Shape:
Foil/ Strip/ Sheet/ Plate
Application:
Precision Sensor
Size:
0.01mm-0.05mm
Material:
CuNi Alloy
Composition:
Cu Ni
Other Grade:
Constantan/ Cuni44/ Cuni40
Shape:
Foil/ Strip/ Sheet/ Plate
Application:
Precision Sensor
Size:
0.01mm-0.05mm
Description
0.01mm-0.05mm Constantan Alloy CuNi44 Foil / Strip For Precision Sensor

0.01mm-0.05mm Konstantan CuNi44 Foil/ Strip for Precision Sensor



Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the manganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.



A copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity.

Constantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures. Other alloys with similarly low temperature coefficients are known, such as Manganin (Cu86Mn12Ni2).

Of all modern strain gauge alloys, Constantan is the oldest, and still the most widely used. This situation reflects the fact that constantan has the best overall combination of properties needed for many strain gauge applications. This alloy has, for example, an adequately high strain sensitivity, or gauge factor, which is relatively insensitive to strain level and temperature. Its resistivity is high enough to achieve suitable resistance values in even very small grids, and its temperature coefficient of resistance is not excessive. In addition, constantan is characterized by good fatigue life and relatively high elongation capability. It must be noted, however, that constantan tends to exhibit a continuous drift at temperatures above 65 °C (150 °F); and this characteristic should be taken into account when zero stability of the strain gauge is critical over a period of hours or days.



Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1.50% 0.5 - Bal - ND ND ND ND





Mechanical Properties

Max Continuous Service Temp 400ºC
Resisivity at 20ºC 0.49±5%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity -6(Max)
Melting Point 1280ºC
Tensile Strength,N/mm2 Annealed,Soft 340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled 680~1070 Mpa
Elongation(anneal) 25%(Min)
Elongation(cold rolled) ≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC) -43
Micrographic Structure austenite
Magnetic Property Non



0.01mm-0.05mm Constantan Alloy CuNi44 Foil / Strip For Precision Sensor 00.01mm-0.05mm Constantan Alloy CuNi44 Foil / Strip For Precision Sensor 1
