Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: N
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: Within 3 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
NiCrSi-NiSiMg |
Surface: |
Bright |
Diameter: |
19*0.16mm |
Wire Type: |
Stranded Wire |
Insulation: |
Bare |
Wire Class: |
I |
Leading Time: |
Stock Wires |
Material: |
NiCrSi-NiSiMg |
Surface: |
Bright |
Diameter: |
19*0.16mm |
Wire Type: |
Stranded Wire |
Insulation: |
Bare |
Wire Class: |
I |
Leading Time: |
Stock Wires |

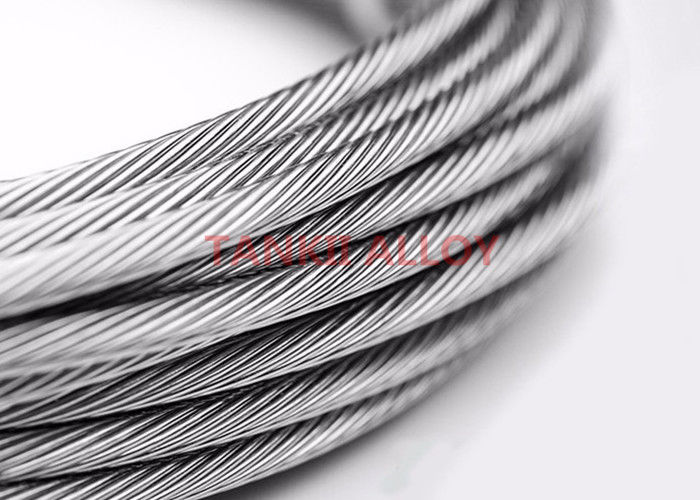

19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.
Type N Temperature Range:
Consideration for bare wire type E thermocouple applications:
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,
such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Type | Tensile Strength | Elongation | EMF | ||
(vs Platinum)(mV) | |||||
N/mm² | % | 100℃ | 200℃ | 400℃ | |
NNX | 625 | 25 | 0.969 | 1.951 | / |
NPX | 692 | 26.7 | 1.800 | 3.968 | / |
NN | 710 | 27 | 0.987 | 1.989 | 4.066 |
NP | 615 | 30 | 1.789 | 3.947 | 8.894 |
Application:N type thermocouple
N type extension cable:
