Product Details
Place of Origin: Shanghai China,
Brand Name: TANKII
Certification: SGS
Model Number: AZ61
Payment & Shipping Terms
Minimum Order Quantity: 4KG
Price: Negotiation
Packaging Details: Carton
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Tons per month
Dia: |
1.2mm, 1.6 Mm, 2.0mm, 2.4mm,3.0mm, |
Material: |
Mg-Al-Zn Wire |
Surface: |
Smooth |
Packing: |
4KG/spool, 1KG/Case |
Density: |
1.8g/cm3 |
Shape: |
Wire, Sheet, Plate |
Application: |
Welding |
Dia: |
1.2mm, 1.6 Mm, 2.0mm, 2.4mm,3.0mm, |
Material: |
Mg-Al-Zn Wire |
Surface: |
Smooth |
Packing: |
4KG/spool, 1KG/Case |
Density: |
1.8g/cm3 |
Shape: |
Wire, Sheet, Plate |
Application: |
Welding |

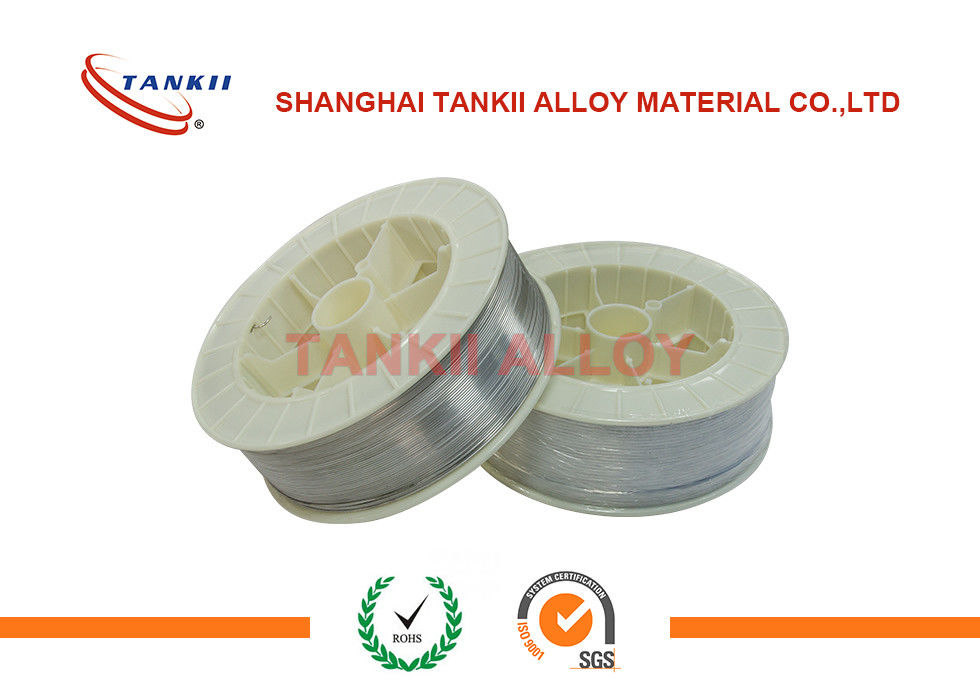

Magnesium Aluminum Alloy Welding Wire
EXTRUDED MAGNESIUM ALLOY WELDING WIRE | |
Production Standard | YS/T696 |
Material Grade | Az31 Az31B Az61A Az91 Az91D Az92A |
Standard Diameter | 1.2mm 16.mm 2.0mm 2.4mm 3.0mm 4.0mm Other diameter can be customized |
Technique | Extruded |
Packing | Vacuum packed reels in wooden case |
Grade Composition
AZ31 | GB/T 5153 | |||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
Min% | 2.40 | 0.50 | 0.15 | |||||
Max% | 3.60 | 1.50 | 0.4 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
AZ61 | GB/T 5153 | |||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
Min% | 5.50 | 0.5 | 0.15 | |||||
Max% | 6.50 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
AZ91D | GB/T 5153 | ||||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
Min% | 8.5 | 0.45 | 0.17 | 0.0005 | |||||
Max% | 9.5 | 0.90 | 0.40 | 0.08 | 0.004 | 0.025 | 0.001 | 0.003 | 0.3 |
AZ92A | AWS A5.19-1992 | ||||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
Min% | 8.3 | 1.7 | 0.15 | 0.0002 | |||||
Max% | 9.7 | 2.3 | 0.50 | 0.05 | 0.005 | 0.05 | 0.005 | 0.0008 | 0.3 |
