Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiated
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Other Grade: |
Ni60Cr15, Ni35Cr20, Ni30Cr20, Etc |
Working Temperature: |
1200 |
Shape: |
Wire/ Foil/ Ribbon/ Coil/ Strip |
Surface: |
Bright/ Oxidised |
Type: |
Nickel Based Alloy |
Density: |
8.4 |
Other Grade: |
Ni60Cr15, Ni35Cr20, Ni30Cr20, Etc |
Working Temperature: |
1200 |
Shape: |
Wire/ Foil/ Ribbon/ Coil/ Strip |
Surface: |
Bright/ Oxidised |
Type: |
Nickel Based Alloy |
Density: |
8.4 |

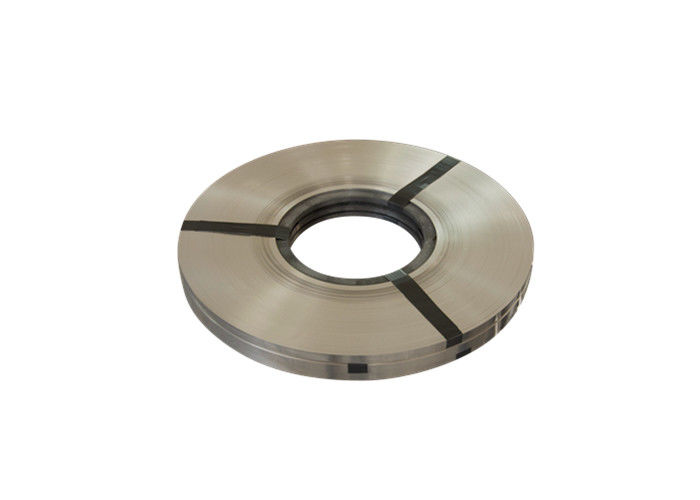

HAI-NiCr80 Nickel Based Alloy Foil/ Strip Heating Strip for Domestic Applications
Grade: Ni80Cr20 / Resistohm 80 / Chromel A
Chemical composition: 80% nickel, 20% chromium
Resistivity: 1.09 Ohms mm2 / m
Condition: bright, annealed and soft
Surface: BA, 2B, polished
Dimensions: 1 ~ 470mm wide, 0.005mm ~ 7mm thick
We also produce NiCr 60/15, NiCr 38/17, NiCr 70/30, NiCr AA, NiCr 60/23, NiFe80, NiFe50, NiFe42, NiFe36, etc.
Producer: Shanghai Tankii Materials alloy S.L.
Shanghai Tankii Materials of alloy S.L .. is a professional producer of sheet, strip and sheet of nichrome.
Three advantages: bright surface, small tolerance, resistance on average.
Kanthal A1 large cold drawn wire products can be used for high temperature resistance furnaces. The practice has
demonstrated that: the product process is stable, the integrated performance is good. It has good oxidation at high temperatures.
longer endurance and life; Excellent winding properties in the processing at room temperature, ease of
molding process; little rebound resilience and so on. The processing performance is very good; operating
The temperature can reach 1400.
Main specifications and uses:
Conventional product specifications: 0.5 ~ 10mm
Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of
Furnace heater body temperature.
| Diámetro (mm) | Ω /m | Área de sección por ohmios(cm2/Ω ) a las 20Ω. | Peso por metro(g/m). | Área de superficie por metro (cm2/m). | Área de sección (mm2) |
| 10.00 | 0.0185 | 17000 | 558 | 314 | El 78,5 |
| 9.50 | 0.0205 | 14600 | 503 | 298 | 70.9 |
| 9.00 | 0.0228 | 12400 | 452 | 283 | 63.6 |
| 8.50 | 0.0256 | 10500 | 403 | 267 | 56.7 |
| 8.00 | 0.0288 | 8710 | 357 | 251 | 50.3 |
| 7.50 | 0.0328 | 7180 | 314 | 236 | 44.2 |
| 7.00 | 0.0377 | 5840 | 273 | 220 | 38.5 |
| 6.50 | 0.0437 | 4670 | 236 | 204 | 33.2 |
| 6.00 | 0.0513 | 3680 | 201 | 188 | 28.3 |
| 5.50. | 0.061 | 2830 | 169 | 173 | 23.8 |
| 5.00 | 0.0738 | 2130 | 139 | 157 | 19.6 |
| 4.80 | 0.0801 | 1880 | 128 | 151 | 18.1 |
| 4.50 | 0.0912 | 1550 | 113 | 141 | 15.9 |
| 4.20 | 0,105 | 1260 | 98.4 | 132 | 13.9 |
| 4.00 | 0,115 | 1090 | El 89,2 | 126 | 12.6 |
| 3.80 | 0.128 | 934 | 80.5 | 119 | 11.3 |
| 3.50 | 0,151 | 730 | 68.3 | 110 | 9.62 |
| 3.20 | 0,180 | 558 | 57.1 | 101 | 8.04 |
| 3.00 | 0.205 | 459 | 50.2 | 94.2 | 7.07 |
| 2.80 | |||||
| 2.50 | 0,295 | 266 | 34.9 | El 78,5 | 4.91 |
| 2.20 | 0.381 | 181 | 27 | 69.1 | 3.80 |
| 2.00 | 0.462 | 136 | 22.3 | 62.8 | 3.14 |
| 1.90 | 0.511 | 117 | 20.1 | 59.7 | 2.84 |
| 1.80 | 0.570 | 99.2 | 18.1 | 56.5 | 2.54 |
| 1.70 | 0.639 | 83.6 | 16.1 | 53.4 | 2.27 |
| 1.60 | 0.721 | El 69,7 | 14.3 | 50.3 | 2.01 |
| 1.50 | 0,821 | 57.4 | 12.5 | 47.1 | 1.77 |
| 1.40 | 0.942 | 46.7 | 10.9 | 44.0 | 1.54 |
| 1.30 | 1.09 | 37.4 | 9.42 | 40.8 | 1.33 |
| 1.20 | 1.28 | 29.4 | 8.03 | 37.7 | 1.13 |
| 1.10 | 1.53 | 22.6 | 6.75 | 34.6 | 0.95 |
| 1.00 | 1.85 | 17 | 5.58 | 31.4 | 0,785 |
