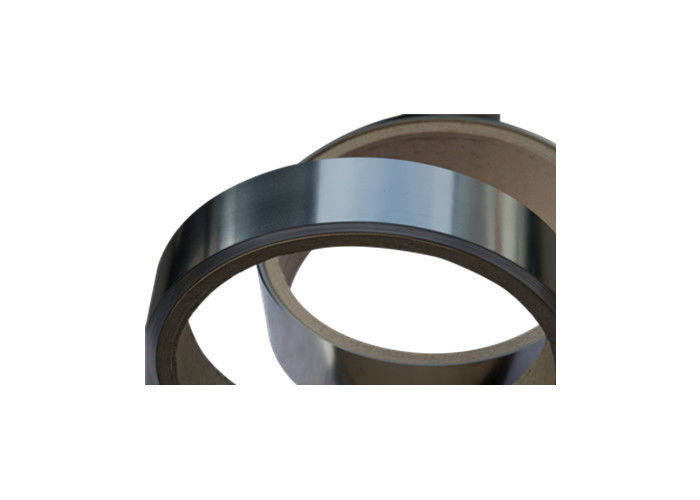

Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance

Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance
Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance

Large Image :  Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: Ni80Cr20
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: Negotiated
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH

Nichrome Alloy Heating Element Foil / Strip For Band Heater Wear Resistance

Description
Feature: Corrosion Resistance, High Temperature Resistance Max Continuous Temperature: 1200
Melting Point: 1400 Min Tensile Strength: 750
Elongation: Min 20% Application: Heating Element And Resistor
Highlight:

nickel alloys

,

nichrome wire

Nichrome Wear Resistance Electric Heating Alloy Foil/ Strip for Band Heater





In the nickel chromium alloys the chromium is easily soluble in the nickel. The solubility is highest at 47% concentration at the eutectic temperature and lowers at 30% at the normal room temperature. The group of industrial nichrome alloys is based on firm solution of nickel chromium metals. This nichrome alloy offers large resistance to oxidation conditions at the high temperature as well as it as appreciable wear resistance.



With the inclusion of little concentration of chromium in the Nickel the alloy's potency to oxidation is improved. The reason is that the dispersion rate of oxygen has been improved.This process alters after the addition grades increased by 7% chromium and improves to increased level by 30%. Beyond this grade, minor changes occur.

The oxidation resistance of nichrome heating wire to the production of extensively adherent secured level. The adherent and coherent level can further be enhanced with the inclusion of little concentrations of other materials like zirconium, silicon, cerium, calcium and more. The level produced is the combination of nickel and chrome oxides. These add up to produce nickel chromite that possesses spinal shape.

Significant improvement in the resistance of nichrome heating wire is noticed with the chromium addition such that 20% chromium is said to be the suitable material amount for resistance in the electrical equipments. Such combination provides excellent electrical features with fine potency and ductility that the material suitable for drawing.



Diameter (mm) Ω /m Section Area per meter ohm(cm2/Ω ) at 20Ω. Weight per meter(g/m). Surface Area per meter (cm2/m). Section area (mm2)
10.00 0.0185 17000 558 314 78,5
9.50 0.0205 14600 503 298 70.9
9.00 0.0228 12400 452 283 63.6
8.50 0.0256 10500 403 267 56.7
8.00 0.0288 8710 357 251 50.3
7.50 0.0328 7180 314 236 44.2
7.00 0.0377 5840 273 220 38.5
6.50 0.0437 4670 236 204 33.2
6.00 0.0513 3680 201 188 28.3
5.50. 0.061 2830 169 173 23.8
5.00 0.0738 2130 139 157 19.6
4.80 0.0801 1880 128 151 18.1
4.50 0.0912 1550 113 141 15.9
4.20 0,105 1260 98.4 132 13.9
4.00 0,115 1090 89,2 126 12.6
3.80 0.128 934 80.5 119 11.3
3.50 0,151 730 68.3 110 9.62
3.20 0,180 558 57.1 101 8.04
3.00 0.205 459 50.2 94.2 7.07
2.80
2.50 0,295 266 34.9 El 78,5 4.91
2.20 0.381 181 27 69.1 3.80
2.00 0.462 136 22.3 62.8 3.14
1.90 0.511 117 20.1 59.7 2.84
1.80 0.570 99.2 18.1 56.5 2.54
1.70 0.639 83.6 16.1 53.4 2.27
1.60 0.721 El 69,7 14.3 50.3 2.01
1.50 0,821 57.4 12.5 47.1 1.77
1.40 0.942 46.7 10.9 44.0 1.54
1.30 1.09 37.4 9.42 40.8 1.33
1.20 1.28 29.4 8.03 37.7 1.13
1.10 1.53 22.6 6.75 34.6 0.95
1.00 1.85 17 5.58 31.4 0,785
0.95 2.05 14.6 5.03 29.8 0,709"
0.90 2.28 12.4 4.52 28.3 0.636
0.85 2.56 10.5 4.03 26.7 0,567
0.80 2.88 8,71 3.57 25.1 0.503
0.75 3.28 7.18 3.14 23.6 0,442
0.70 3.77 5.84 2.73 22.0 0.385
0.65 4.37 4.67 2.36 20.4 0.332
0.60 5.13 3.68 2.01 18.8 0.283
0.55 6.1. 2,83 1.69 17.3 0.238
0.50 7.38 2.13 1.39 15.7 0.196
0.48 8.01 1.88 1.28 15.1. 0.181
0.45 9.12 1.55 1.13 14.1. 0.159
0,42 10.5 1.26 0.984 13.2 0.139
0.40 11.5 1.09 0.892 12.6 0.126
0.38 12.8 0.934 0.805 11.9 0.113
0.35 15.1. 0.73 0.683 11.0 0.0962
0.32 18 0.558 0.571 10.1. 0.0804
0.30 20.5 0.459 0.502 9.42 0.0707
0.28 23.5 0,374 0,437 8.8 0.0616
0.26 27.3 0.299 0.377 8.17 0.0531
0.25 29.5 0,266 0.349 7.85 0.0491
0.24 32.1 0,235 0.321 7.54 0.0452
0.23 34.9 0.207 0,295 7.23 0.0415
0.22 38.1 0.181 0.27 6,91 0,038
0.21 El 41,9 0.158 0,246 6.6 0.0346
0.20 46.2 0,136 0.223 6.28 0.0314
0.19 51.1 0.117 0.201 5.97 0.0284
0.18 57 0.0992 0.181 5.65 0.0254
0.17 El 63,9 0.0836 0.161 5.34 0.0227
0.16 72,1 0.0697 0,143 5.03 0.0201
0.15 82.1 0.0574 0,125 4,71 0.0177
0.14 94.2 0.0467 0.109 4.40 0.0154
0.13 109 0.0374 0.0942 4.08 0.0133
0.12 128 0.0294 0.0803 3.77 0.0113
0.11 153 0.0226 0.0675 3.46 0.0095
0.10 185 0,017 0.0558 3.14 0.00785
0.09 228 0.0124 0.0452 2,83 0.0636
0.08 288 0.00871 0.0357 2.51 0.00503
0.07 377 0.00584 0.0273 2.20 0.00385
0.06 513 0.00368 0.0201 1.88 0.00283
0.05 738 0.00213 0.0139 1.57 0.001



The commercial levels consist of Nichrome and Brightray. The little upgradation for this composition can be made to improve the wire for certain operations. With the inclusion of suitable reactive alloy metals an alteration in the properties is certain. The performance conditions of nichrome alloy wire are extremely influenced by its composition.

However the concentration alternations have minor impact on mechanical features, large concentration of reactive metals causes to avoid the flaking of scale while periodic heating and cooling.

The nichrome wire with binary expression of 90/10 is used for heating operations and it has highest performance temperature of 1100 degree Celsius. Moreover nichrome heating wire is also used in thermocouples.The combination of nickel and chromium in 90:10 ratio is more preferred for thermocoupling as compare to 95:5 nickel chromium addition.
