Heating Furnace FeCrAl Alloy 14AWG 0Cr21Al4 Heating Resistance Wire

Product Details

Place of Origin: Shanghai, China

Brand Name: Tankii

Certification: ISO9001:2015

Model Number: 0Cr21Al4

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiated price

Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

high resistance wire

Other Grade Provided:
0Cr25Al5, 0Cr21Al6Nb, 0Cr13Al4, Etc
Application:
Heating
State:
Soft
Surface:
Acid Wash, Oxidised
Size:
1.4mm 1.6mm
Min Elongation:
12%
Other Grade Provided:
0Cr25Al5, 0Cr21Al6Nb, 0Cr13Al4, Etc
Application:
Heating
State:
Soft
Surface:
Acid Wash, Oxidised
Size:
1.4mm 1.6mm
Min Elongation:
12%
Description

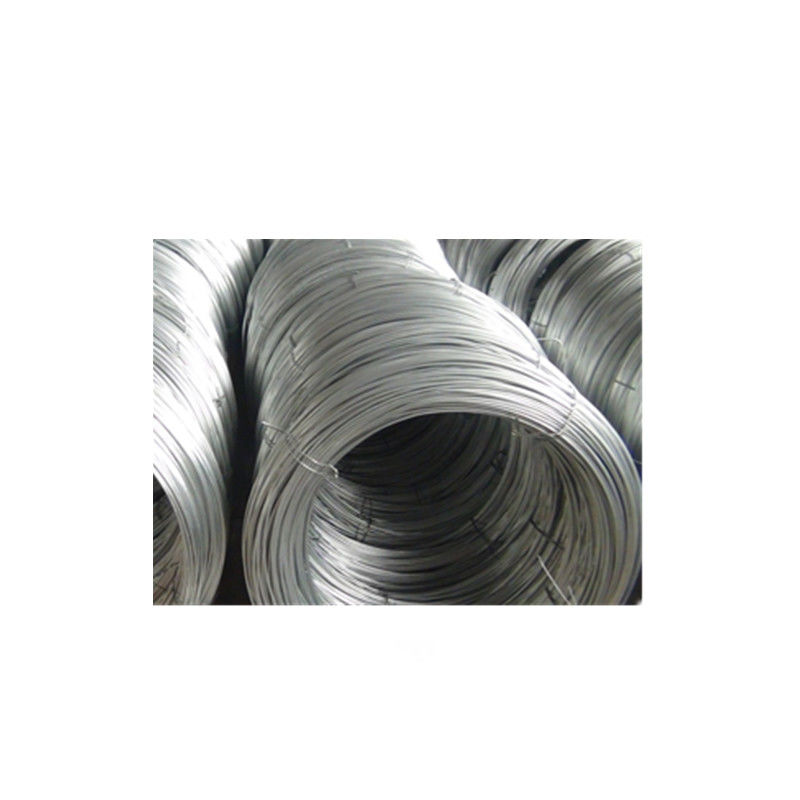

Heating Furnace FeCrAl Alloy 14AWG 0Cr21Al4 Heating Resistance Wire

14AWG 0Cr21Al4 Heating Resistance Wire for Fine Drawing Wire in Heating Furnace





1)Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm


2) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.

Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.


3) High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd. (Shanghai Tankii Materiales de Aleación S.L.)

5) Tolerance


Diameter(mm)

Tolerance(mm)

Diameter(mm)

Tolerance(mm)

0.03-0.05

±0.005

>0.50-1.00

±0.02

>0.05-0.10

±0.006

>1.00-3.00

±0.03

>0.10-0.20

±0.008

>3.00-6.00

±0.04

>0.20-0.30

±0.010

>6.00-8.00

±0.05

>0.30-0.50

±0.015

>8.00-12.0

±0.4


Heating Furnace FeCrAl Alloy 14AWG 0Cr21Al4 Heating Resistance Wire 0
Heating Furnace FeCrAl Alloy 14AWG 0Cr21Al4 Heating Resistance Wire 1
