Product Details
Place of Origin: Shanghai, China
Brand Name: Tankii
Certification: ISO9001:2015
Model Number: NiCr80/20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiated price
Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 200+TON+MONTH
Material: |
Nickel Chromium |
Advantage: |
Good Flatness Without Torsion, Bright |
Feature: |
Without Spots, Good Corrosion Resistance |
Size: |
As You Required |
Shape: |
Flat Wire/ Flat Strip/ Strip |
Other Grade: |
NiCr70/30, NiCr60/15,etc |
Material: |
Nickel Chromium |
Advantage: |
Good Flatness Without Torsion, Bright |
Feature: |
Without Spots, Good Corrosion Resistance |
Size: |
As You Required |
Shape: |
Flat Wire/ Flat Strip/ Strip |
Other Grade: |
NiCr70/30, NiCr60/15,etc |

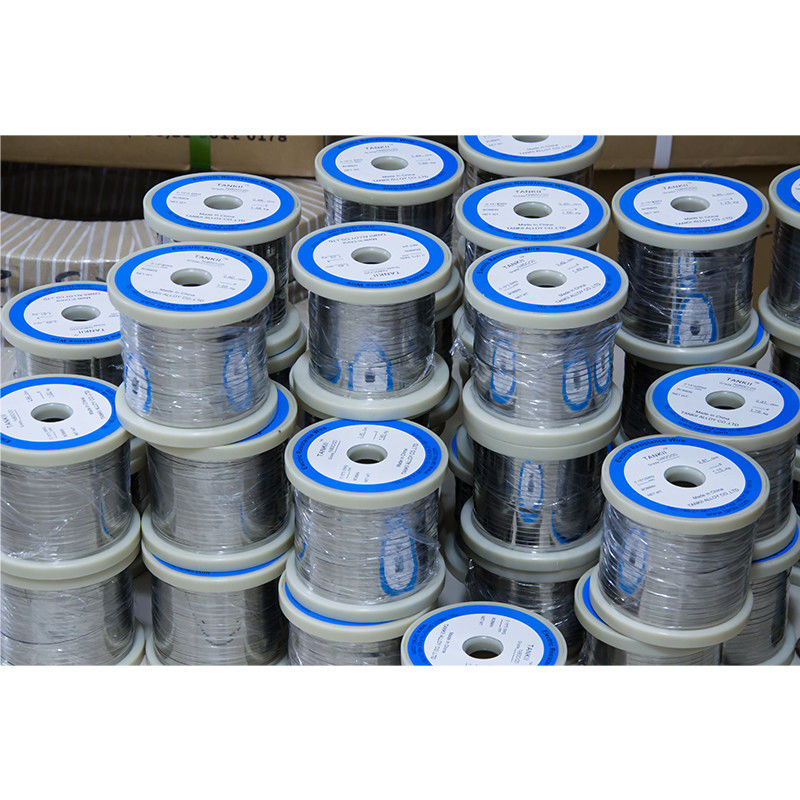

N8 Nickel Chromium Alloy Wire/ Flat Wire 0.15mm*1.5mm for Industry Sealing Machine
1. General Description
Nichrome 80 (Nickel 80%, Chromium 20%) resistance alloy is an ideal electrical heating material that can be used up to 2150oF or 1200oC. It has suitable hot strength and extremely high electrical resistance. Nichrome 80 alloy (Strip and Wire) produces a strong chromium oxide layer upon heating that provides outstanding oxidation resistance at the elevated temperatures. It has high melting temperature about 1350oC. Nichrome wire offers a special resistance range of 5500 ohm/m.
We offer fine gauge wire for a broad range of applications including low temperature heating in the electronic equipments such as variable frequency controller for example potentiometers, pressure transducers, detonators, ceramic resistance, wire wound resistance, lead wire and also strings for musical instruments.
Nichrome 80 resistance heating alloy is suitable for reconstructing your atomizer and is particularly excellent for sub-ohm coils. It has smaller resistance per unit length than Kanthal hence it heats up more quickly and is recommended over Kanthal for various applications.
2. Sealing Machine
Wire AWG | Wire Dia. | Ohms / Foot | Current at 400°F | Current at 600°F | Current at 800°F | Current at 1000°F | Current at 1200°F | Current at 1400°F | Current at 1600°F |
30 | 0.010 | 6.50 | 0.875 A | 1.16 A | 1.43 A | 1.74 A | 2.06 A | 2.43 A | 2.81 A |
32 | 0.008 | 10.55 | 0.650 A | 0.860 A | 1.08 A | 1.32 A | 1.56 A | 1.82 A | 2.09 A |
34 | 0.0063 | 16.66 | 0.493 A | 0.658 A | 0.820 A | 0.978 A | 1.16 A | 1.34 A | 1.54 A |
36 | 0.005 | 25.12 | 0.382 A | 0.506 A | 0.623 A | 0.732 A | 0.872 A | 0.998 A | 1.13 A |
40 | 0.0031 | 66.29 | 0.230 A | 0.300 A | 0.360 A | 0.410 A | 0.491 A | 0.550 A | 0.610 A |
48 | 0.00124 | 454.0 | n/a | n/a | n/a | n/a | n/a | n/a | n/a |
