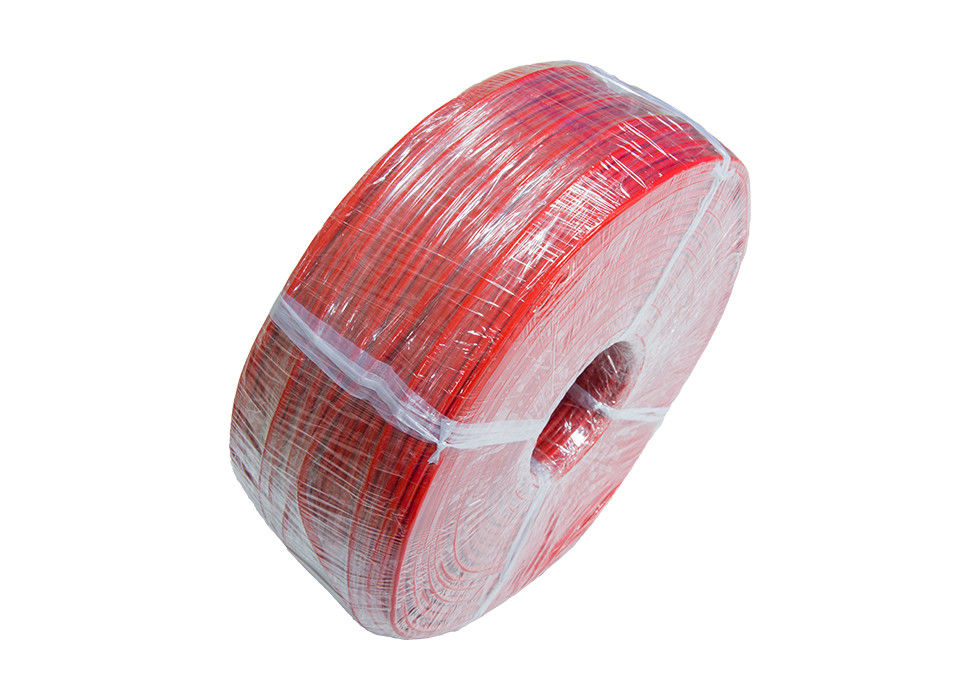

Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA

Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA

    • Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA
    • Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA
    • Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA
  • Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO 9001
    Model Number: Type K

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 m
    Price: Negotiation
    Packaging Details: 5000m/spool
    Delivery Time: 5-30days
    Payment Terms: T/T, Western Union
    Supply Ability: 152400m/month
    Contact Now
    Detailed Product Description
    Name: Type K Thermocouple Extension Wire Shape: Solid
    Color: Red Type: K,J,E,T
    Package: Coil Temperature: 200°C 400°C 800°C 1000°C

    Type K J T PTFE/ fiber glass / PVC/ PFA insulated Thermocouple Extension Cable 24 Awg



    NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.



    Grade: Extension Grade or Thermocuple Grade
    temperature range, deg. c -50... +400
    type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
    number of conductors: 1,2,3,4,6
    Conductor type Strand or Solid
    section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
    material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
    color: ANSI, IEC, etc
    quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,



    NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

    Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

    Type K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFAType K J T Insulated Thermocouple Cable 24 Awg PTFE / Fiber Glass / PVC / PFA
