ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers

ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers

    • ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers
    • ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers
    • ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers
    • ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers
  • ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008/ ROHS
    Model Number: 1J50 / Ni50 / 50Н / Hy-Ra49

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: To negotiate
    Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 2000+TON+YEAR
    Contact Now
    Detailed Product Description
    Shape: Sheet Usage: Safety Valves, Resolvers, Actuators
    Density: 8.20 Resistance: 0.45
    Saturation Magnetostriction Constant: 25.0 Curie Point: 500

    Precision Magnetic Alloys FeNi48/50 SUPRA 50/50T/50SP/510 Sheet For Safety Valves Resolvers Actuators





    FeNi 50 is a nickel-iron, soft magnetic alloy containing 50% nickel. Mainly used in two areas, for energy conversion and information processing
    In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.
    Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.
    Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.



    Chemical Composition



    Composition % C P S Mn Si Ni Cr Cu Fe
    Content min       0.30 0.15 49.0 -   Bal
    max 0.03 0.02 0.02 0.60 0.30 51.0 - 0.20

    Physical Properties

    Density (g/cm3) 8.2
    Electrical resistivity at 20ºC (mm2/m) 0.45
    Linear expansion coefficient (10 -6 ºC -1 ) 9.20
    Resistivity (μΩ·m) 0.45
    Curie point (ºC) 500
    Saturation magnetostriction coefficient (10 -6 ) 25.0
    Melting point (ºC) -

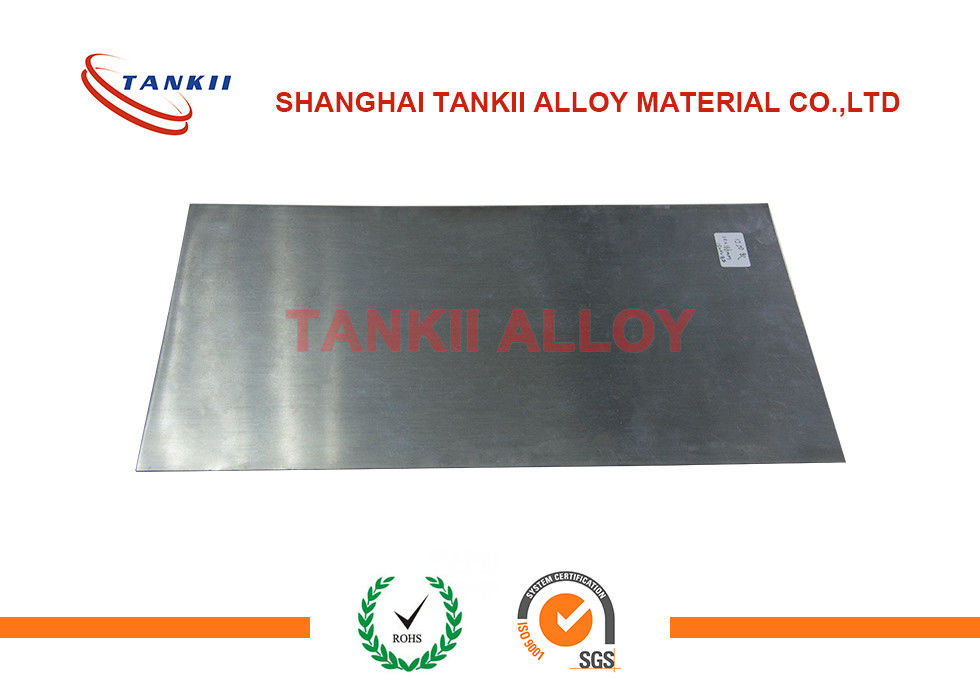

    ROHS Standard Precision Alloys FeNi48/50 SUPRA 50 / 50T / 50SP Sheet For Resolvers



    Applications

    • Safety valves, resolvers, actuators

    • High precision current transformer cores

    • Ground fault circuit breaker (relay parts)
