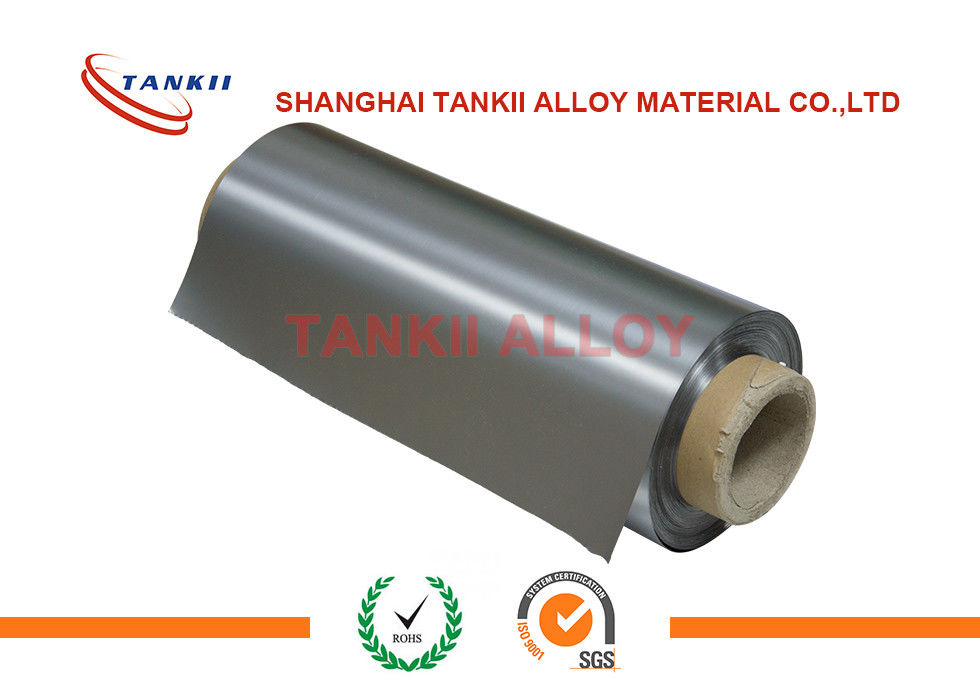

Magnetic Precision Alloys SUPRA 50 50T 50SP / SUPRA 510 Foil For Safety Valves

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008/ ROHS

Model Number: 1J50 / Ni50 / 50Н / Hy-Ra49

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: To negotiate

Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 2000+TON+YEAR

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

kovar alloy

Shape:
Foil
Usage:
Safety Valves, Resolvers, Actuators
Density:
8.20
Resistance:
0.45
Saturation Magnetostriction Constant:
25.0
Curie Point:
500
Shape:
Foil
Usage:
Safety Valves, Resolvers, Actuators
Density:
8.20
Resistance:
0.45
Saturation Magnetostriction Constant:
25.0
Curie Point:
500
Description
Magnetic Precision Alloys SUPRA 50 50T 50SP / SUPRA 510 Foil For Safety Valves

Precision Magnetic Alloys SUPRA 50 50T 50SP/SUPRA 510 Foil For Safety Valves Resolvers Actuators







FeNi 50 is a nickel-iron, soft magnetic alloy containing 50% nickel. Mainly used in two areas, for energy conversion and information processing
In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.
Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.
Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.



Chemical Composition



Composition % C P S Mn Si Ni Cr Cu Fe
Content min       0.30 0.15 49.0 -   Bal
max 0.03 0.02 0.02 0.60 0.30 51.0 - 0.20

Physical Properties

Density (g/cm3) 8.2
Electrical resistivity at 20ºC (mm2/m) 0.45
Linear expansion coefficient (10 -6 ºC -1 ) 9.20
Resistivity (μΩ·m) 0.45
Curie point (ºC) 500
Saturation magnetostriction coefficient (10 -6 ) 25.0
Melting point (ºC) -





Magnetic Precision Alloys SUPRA 50 50T 50SP / SUPRA 510 Foil For Safety Valves 0



Applications

• Safety valves, resolvers, actuators

• High precision current transformer cores

• Ground fault circuit breaker (relay parts)
