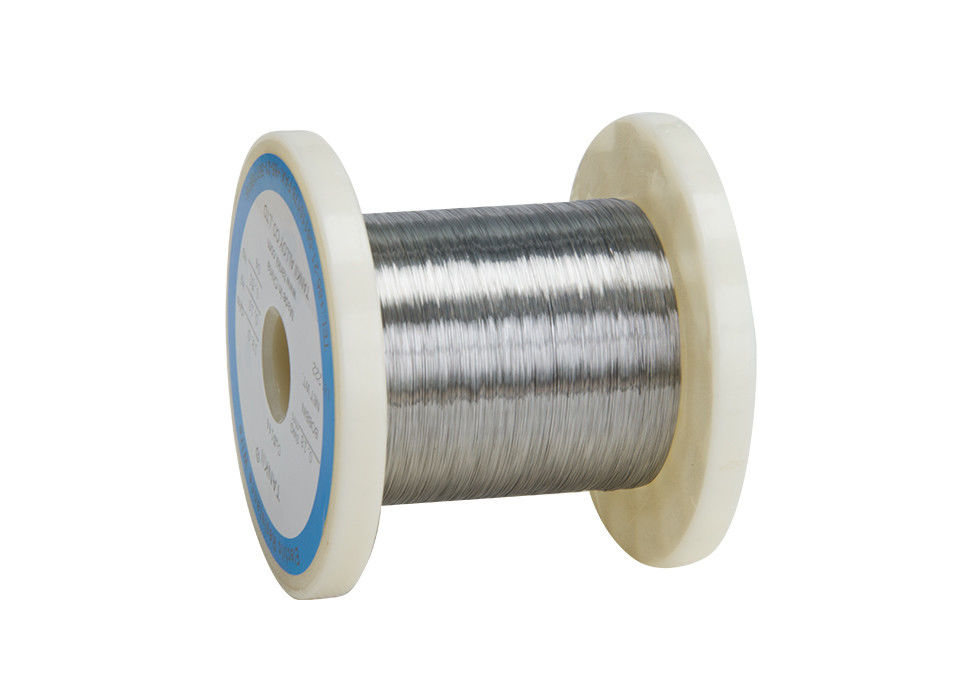

Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire

Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire

    • Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire
    • Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire
    • Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire
    • Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire
  • Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008/ ROHS
    Model Number: CUNI44

    Payment & Shipping Terms:

    Minimum Order Quantity: 30kg
    Price: To negotiate
    Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 2000+TON+YEAR
    Contact Now
    Detailed Product Description
    Application: Resistance Wire/ Heating Wire Surface: Bright,Annealed
    Tensile Strength: 350 MPa Insulation: Bare
    Material: CuNi40, CuNi 34, CuNi30, CuNi23, CuNi19, Etc Conductor Type: Solid

    Constantan Copper Nickel Wire 1.2mm Bright High Resistance Wire for Shunt Current Wire



    1) General Description:

    Constantan (CuNi 44 Alloy): A Copper-Nickel alloy. High specific resistance alloy used in wire-wound precision resistors, potentiometers, volume control devices, winding heavy-duty industrial rheostats and electric motor resistances.
    Also used as thermocouple alloy with Copper (Type T), Iron (Type J), and Ni-Cr (Type E). It is available with grade wires and extension wires.



    2) Product Specifications:
    Ferro-Chrome Alloys (Ferritic Alloys):
    OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
    Nickel-Chrome Alloys (Ni-Cu Alloys):
    Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
    Constantan Alloys (Cu-Ni Alloys):
    CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

    3) High quality assured:
    Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

    4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.


    5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
    Shanghai TANKII ALLOY MATERIAL Co., Ltd.




    6) Application:

    Shunt resistors are often used in cases where currents need to be measured. They can be found in multimeters, as terminating resistors on current transformer or as a separate measurement accessories. When using a combination of an appropriate shunt and an external multimeter set at voltage range, large currents can be measured, or combined with an oscilloscope, current wave forms can be made visible.

    The name "shunt" originates from the fact that galvano and moving-iron meters only can handle limited currents. And to be able to measure larger currents a significantly part of the current is bypassed via a resistor. A shunt therefore is a common resistor named after it's purpose.



    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000,1219,1500mm Whole Coil or piece of it Cold Annealed,Surface 2B,2E
    Plate Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B,2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle,Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement Use for PHE
    Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement Use for PHE
    Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Forged piece roundness and square alloy Base on your requirement Steel, Alloy
    Flangs All kinds of Flangs Base on your requirement Steel, Alloy
    Welding Material Coil wire Φ0.90mm/1.2mm/1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
    Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm
    Welding rodΦ2.4mm/3.2mm/4.0mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy





    Constantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current WireConstantan Copper Nickel Alloy Wire 1.2mm High Resistance For Shunt Current Wire
