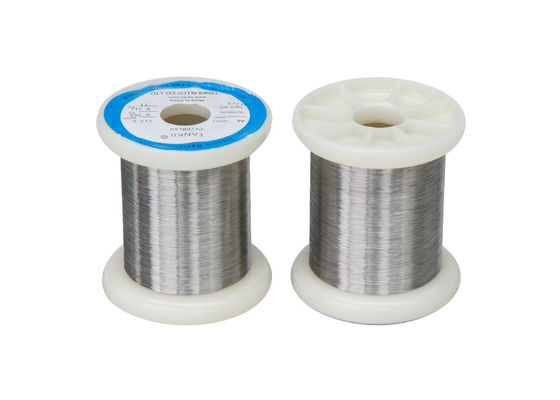

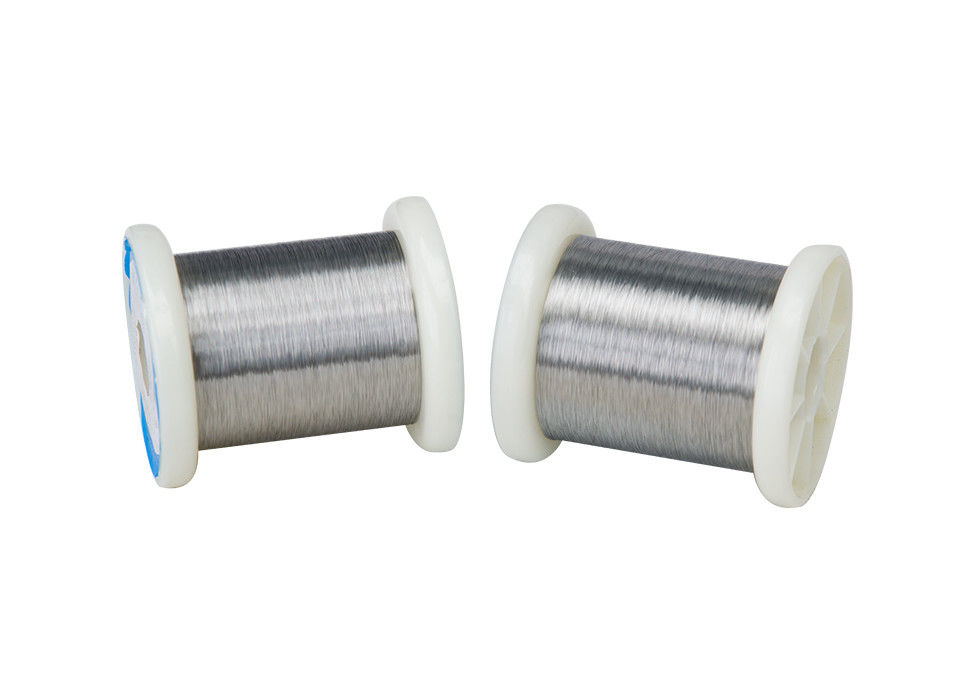

0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords

0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords

    • 0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords
    • 0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords
    • 0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords
    • 0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords
  • 0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: Ni80Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: 221-45usd/kg
    Packaging Details: spool,coil
    Delivery Time: Depends on the quantity
    Payment Terms: T/T, Western Union
    Supply Ability: 20000kg/month
    Contact Now
    Detailed Product Description
    Material: Nickel Color: Gray
    Cetificate: ISO 9001 Lable: Tankii
    Application: Heating Cables

    0.055mm Chromel A NiCr 80/20 nickel-chromium alloy for heating cables, mats and cords


    1.Process:

    Wire:Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse



    2.Product features of nichrome wire:

    1)Excellent anti-oxidation and mechanical strength at high temperature;

    2)High resistivity and low temperature coefficient of resistance;

    3)Excellent reelability and forming performance;

    4)Excellent welding performace



    3.Application of all grades:

    Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
    Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
    Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.



    4.Wire packing:

    In spool--when the diameter≤1.2mm

    In coil--when the diameter>1.2mm

    All the wire packd into cartons→cartons packed into plywood pallet OR wooden case





    Chemical Content(%)

    C P S Mn Si Cr Ni Al Fe Other
    Max
    0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

    Mechanical Properties of nichrome wire

    Max Continuous Service Temperature: 1200ºC
    Resisivity 20ºC: 1.09 ohm mm2/m
    Density: 8.4 g/cm3
    Thermal Conductivity: 60.3 KJ/m·h·ºC
    Coefficient of Thermal Expansion: 18 α×10-6/ºC
    Melting Point: 1400ºC
    Elongation: Min 20%
    Micrographic Structure: Austenite
    Magnetic Property: nonmagnetic

    Temperature Factors Of Electrical Resistivity

    20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
    1 1.006 1.012 1.018 1.025 1.026 1.018
    700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
    1.01 1.008 1.01 1.014 1.021 1.025 -



    0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords0.055mm Chromel A NiCr 80 / 20 Nicr Alloy For Heating Cables / Mats And Cords
