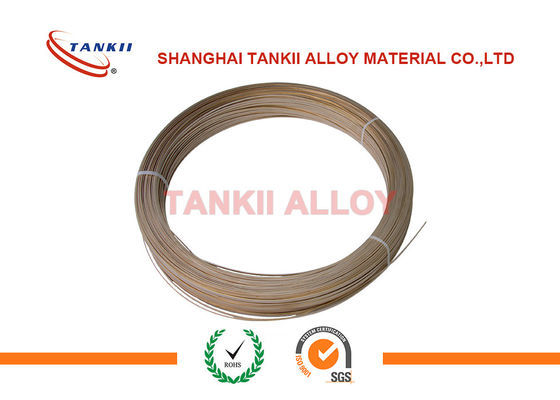

1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

    • 1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts
    • 1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts
    • 1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts
    • 1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts
  • 1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: Rohs
    Model Number: 6J13

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg per size
    Price: USD19~25/kg
    Packaging Details: Waterproof packing, in Wooden case
    Delivery Time: 5~15 days as per the order qty
    Payment Terms: T/T, Western Union
    Supply Ability: 1000tons per year
    Contact Now
    Detailed Product Description
    Grade: 6J13 Density: 8.4g/cm3
    Elongation: >15% Resistivity At 20C: 44μΩ/cm

    1.Description

    Manganin is a trademarked name for an alloy of typically 86% copper, 12% manganese, and 2% nickel.
    Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
    Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.

    The marked characteristics of manganese copper alloy is a very small temperature coefficient of resistance, low identical electromotive force, and has the special excellent resistance stability.In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece, foil, but poor corrosion resistance and oxidation resistance.

    It is the electric resistance alloy with the copper, manganese, nickel as the essential component. It is a superior precision resistor material with the characteristics of high electronic resistivity, very small resistance temperature coefficient, low Thermal EMF vs. Copper E and long-term stability. It is mainly applied in manufacturing heater resistances and resistance elements of standard resistor, precision instrument and so on.

    Strip specification range
    Thickness: 0.01-7 (mm) width: 5-300 (mm)



    2. Main chemical composition :

    Alloy type Cu Mn Ni
    6J8 rest 8-10 /
    6J12 rest 11-13 2-3
    6J13 rest 11-13 2-5



    3. Related parements of Manganin material:

    Item 6J8 6J12 6J13
    Resistivity 0.35±0.05 0.47±0.03 0.44±0.04
    TCRx10-6/°c -5~+10 -10~+20 0~40
    EMF V S Cu(0-100°c)uv/°c ≤2 ≤1 ≤2
    Density(g/cm3) 8.7 8.4 8.4
    Melting point (°c) 960 960 960
    Tensile strength(MPa) 490--539 490--539 490--539
    Elongation(%) 10-30 10-30 10-30
    Service temperature(°c) 10-80 5-45 10-80

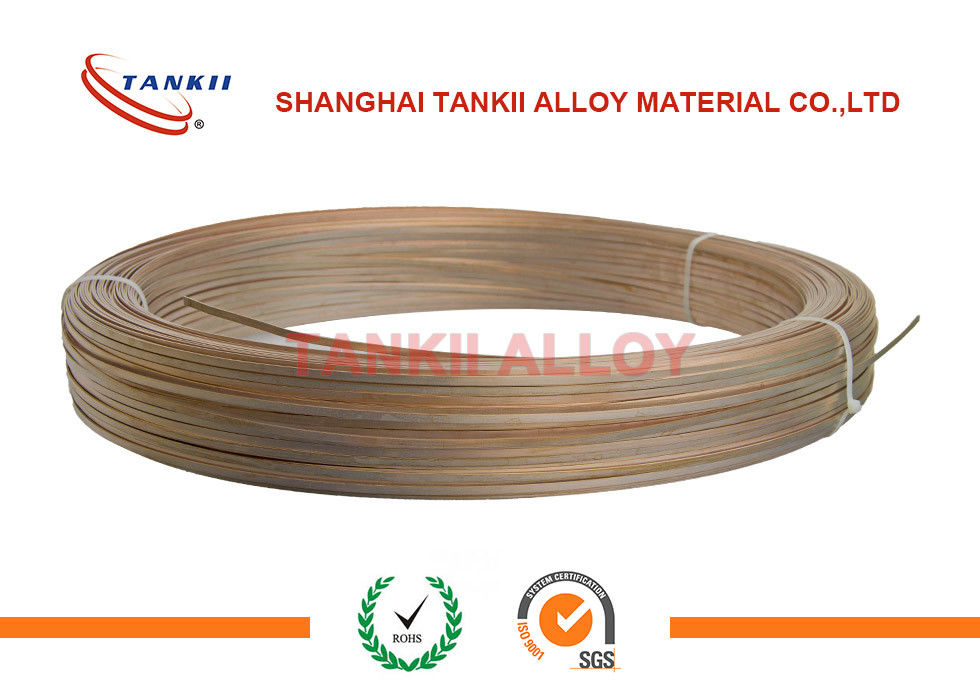

    6J13 Manganin Strip / Flat Wire With Tailor-Made Size Used For Ammeter Shunts

    4. Packing detail

    1). Coil (plastic spool) + compressed ply-wooden case + pallet
    2). Coil (plastic spool) + carton + pallet
    3. Products and services



    5. Why pick us?
    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Fast delivery;

    1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts



    1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

    1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

    1×0.5mm Flat Copper Wire 6J12 6J13 Tape / Band Belt For Ammeter Shunts

    Should have any question, please let me know freely,
