Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements

Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements

    • Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements
    • Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements
    • Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements
    • Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements
  • Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements

    Product Details:

    Place of Origin: China mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: Alloy30 (CuNi2)

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg per size
    Price: Negotiable
    Packaging Details: Standard export package
    Delivery Time: 3-5 days after getting the payment
    Payment Terms: Western Union, L/C, D/A, D/P, T/T
    Supply Ability: 1000T per year
    Contact Now
    Detailed Product Description
    Grade: Alloy 30 (Cuni2) Wire Shape: Round Wire
    Wire Color: Natural Color Application: Heating Element For Auto
    Density: 8.9 Item: DIN125 Packed Alloy 60 Alloy30 CuNi2 CuNi6 CuNi10 Resistant Wire Single Wire Used For Automobile Heating Elements



    DIN125 Packed Alloy 60 Alloy30 CuNi2 CuNi6 CuNi10 Resistant Wire Single Wire Used For Automobile Heating Elements



    Product Description



    Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance.


    The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.



    DIN spools are available for the package as per your requests.

    Stranded or bunch wires are available if you need.

    Enamelled wire can be tailor-made.


    Chemical Content, %


    Ni

    Mn

    Fe

    Si

    Cu

    Other

    ROHS Directive

    Cd

    Pb

    Hg

    Cr
    2 - - - Bal - ND ND ND
    ND





    Mechanical Properties


    Max Continuous Service Temp

    200ºC

    Resisivity at 20ºC

    0.05±10%ohm mm2/m

    Density

    8.9 g/cm3

    Melting Point

    1090ºC

    Tensile Strength,N/mm2 Annealed,Soft
    ≥220Mpa

    Elongation(anneal)

    25%(Min)

    Elongation(cold rolled)

    ≥Min)2%(Min)

    EMF vs Cu, μV/ºC (0~100ºC)

    -12

    Micrographic Structure

    austenite

    Magnetic Property

    Non




    Type Electrical resistivity
    (20degreeΩ
    mm²/m)
    Temperature coefficient of resistance
    (10^6/degree)
    Density
    g/mm²
    Max. temperature
    (°c)
    Melting point
    (°c)
    CuNi1 0.03 <1000 8.9 / 1085
    CuNi2 0.05 <1200 8.9 200 1090
    CuNi6 0.10 <600 8.9 220 1095
    CuNi8 0.12 <570 8.9 250 1097
    CuNi10 0.15 <500 8.9 250 1100
    CuNi14 0.20 <380 8.9 300 1115
    CuNi19 0.25 <250 8.9 300 1135
    CuNi23 0.30 <160 8.9 300 1150
    CuNi30 0.35 <100 8.9 350 1170
    CuNi34 0.40 -0 8.9 350 1180
    CuNi40 0.48 ±40 8.9 400 1280
    CuNi44 0.49 <-6 8.9 400 1280


    Our advantages:

    a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
    b) We can provide all kinds of electric heating alloy material and elements, including customized products.
    c) We can provide a complete solution for you.
    d) OEM service can be provided.
    e) Product selection
    f) Process optimization
    g) New product development

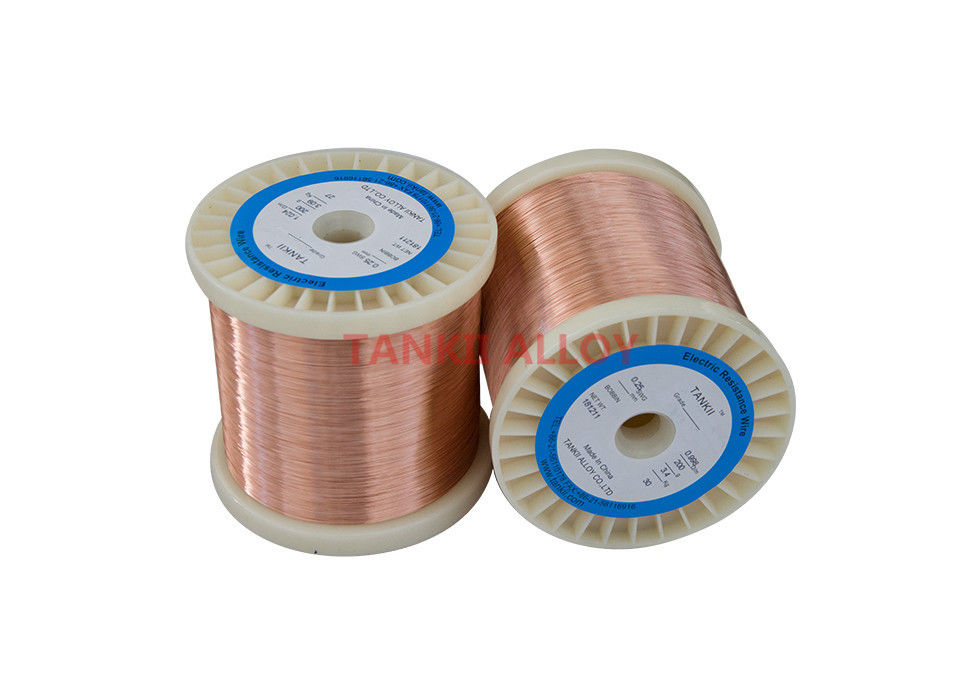

    Product picture:

    Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements



    Package:

    Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements

    Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements

    Round Copper And Nickel Alloy Wire CuNi6 / CuNi10 For Automobile Heating Elements
