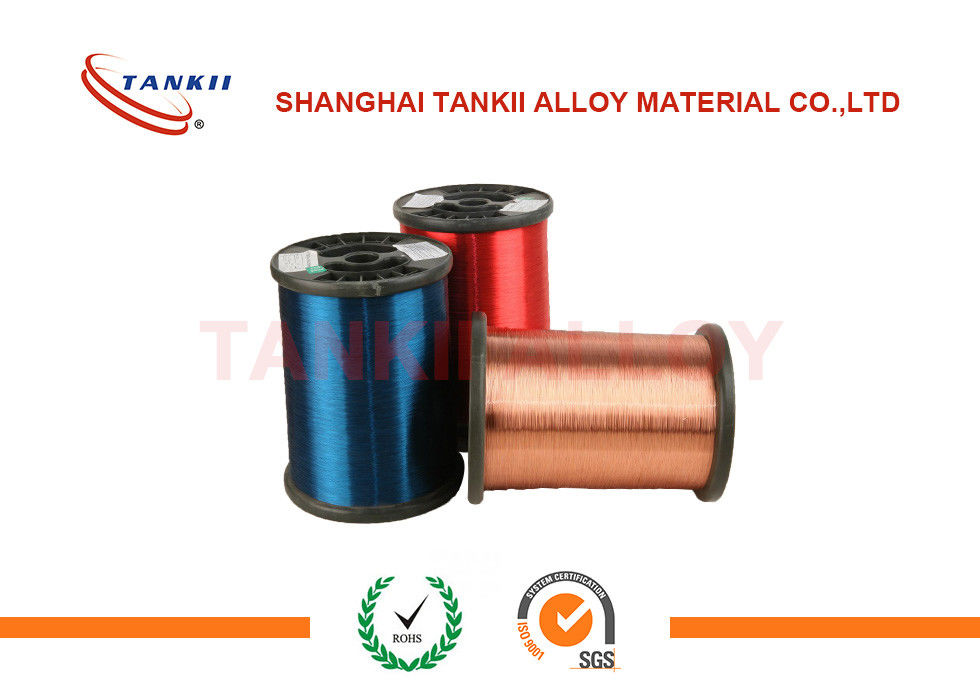

Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG

Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG

    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
    • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG
  • Colorful Bright Type K Thermocouple Wire Enamelled Wire 46 SWG 44SWG 43 SWG

    Product Details:

    Place of Origin: Chian
    Brand Name: Tankii
    Certification: ISO RoHS AISI ASTM GB
    Model Number: K type thermocouple wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 20Kg
    Price: USD 20/Kg
    Packaging Details: Wooden Pallet, Wooden Case, Spool
    Delivery Time: 10-15 woking days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200Tons/Month
    Contact Now
    Detailed Product Description
    Packing: Case Craft: Cold Rolled
    Characteristics: High Resistivity, Good Oxidation Resistance Sample: Free
    Shape: Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil Surface: Bright/ Oxidized
    Dia: 0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm Grade: I/II/III
    Tensile Strength: ≥196 Leading Time: About 5 Days
    Transport Package: 100m/Coil 500m/Coil Wire Status: Soft, Bright , Annealing

    46SWG,44SWG,43SWG colorful bright K type thermocouple wire enamelled wire

    Packing & Delivery for thermocouple wire


    Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

    Delivery Detail: By sea/ air. About 7 days, as the order quantity.



    Specifications:
    Enameled Copper wire
    Conductor:copper
    Diameter: 0.02-8.00mm
    Standard: IEC, NEMA, GB,JIS
    Thermal Class: 155 centigrade

    Enamelled types : U PEW/F
    Certification:UL Approved, iso9001, iso14001,RoHS,REACH



    The Type T thermocouple wire is composed of a copper (+) wire versus a nickel-45% copper (-) wire. The Type of thermocouple wire is frequently referred to as copper-constantan. This type of thermocouple can be used in oxidizing, reducing, or inert atmospheres with a service temperature range between -200°C and 370°C (-330°F to 700°F). The high temperature use of this thermocouple is also limited due to rapid oxidation of the copper element. The Type T thermocouple wire is one of the few thermocouples which have established limits of error for use in subzero and cryogenic applications. This is possible due to the Type T's superior corrosion resistance in moist environments.
    Detailed Parameter of thermocouple wire

    Chemical Composition
    Conductor Name Polarity Code Nominal Chemical Composition /%
    Ni Cu

    Copper

    Positive

    TP

    --

    100

    Copper-Nickel

    Negative

    TN

    45

    55
    Working Temperature Range

    Diameter/mm

    Long time Working temperature /ºC

    Short period Working temperature /ºC

    0.2, 0.3
    150
    200

    0.5, 0.8
    200
    250

    1.0, 1.2
    250
    300

    1.6, 2.0

    300

    350

    Production Processing of thermocouple wire:


    SZ CABLE mainly supply:
    1-Enameled Wire( CCA wire, Al. wire, Copper wire)
    2-Electric wire( CCA wire, Al. wire, Copper wire)
    3-Electric cable( CCA wire, Al. wire, Copper wire)
    4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)
    5-Enameling machine(size from 0.02-8.00mm wire)

    Advantages:
    as the most traditional type of enameled wire, the application field is wide, soldering convenient, performance stable.

    Disadvantages:
    high cost of production.



    Product details:

    Enameled Type Polyester Modified Polyester polyester-imide Polyamide-imide Polyurethane
    Insulation Type PEW/130 PEW(G)/155 EIW/180 EI/AIW/200 UEW/130,155,180
    Thermal class 130, CLASS B 155, CLASS F 180, CLASS H 200, CLASS C B,F,H CLASS
    Conductor Cu Cu Cu Cu Cu
    Size(mm) supply 0.02-8.00 0.02-8.00 0.02-8.00 0.02-8.00 0.11-8.0
    Enamel thickness Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3)
    Standard

    IEC60317-0-2

    IEC60317-29

    MW36-A

    SZ Enterprise standard

    SJ/T11223-2000

    IEC60317-0-2

    IEC60317-29MW36-A

    SZ Enterprise standard

    SJ/T11223-2000

    IEC60317-0-2

    IEC60317-29

    MW36-A

    SZ Enterprise standard

    SJ/T11223-2000

    IEC60317-0-2

    IEC60317-29

    MW36-A

    SZ Enterprise standard

    SJ/T11223-2000

    IEC60317-0-2

    IEC60317-29

    MW36-A

    SZ Enterprise standard

    SJ/T11223-2000



    Product Features:
    High breakdown voltage
    Good adhesion
    Tin soldering
    Few pinhole
    Sustained and stable quality

    Main Applications :
    All kinds of household electric motors, vacuum cleaner motor, electric motor
    All kinds of transformers, inductors, rectifiers
    All kinds of fan motor
    All kinds of high frequency electric appliance

    Polyester and modified polyester enameled copper wire.
    Thermal class 130,155 degree. The product has high mechanical strength, and has good elasticity, adhesion, electrical performance and solvent resistance, which is a poor thermal shock resistance and low moisture resistance. Widely used in a variety of motor, electrical, instrumentation, telecommunications equipment and home appliances.
