Product Details
Place of Origin: China
Brand Name: TANKII
Certification: SGS
Model Number: Nickel 200, Nickel 201
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month
Material: |
Pure Nickel |
Surface: |
Bright , |
Shape: |
Wire, Ribbon, Strip, Etc |
Diameter: |
0.02 -5.0mm |
Standard: |
GB, ASTM Etc |
Packing: |
Wooden Case |
Material: |
Pure Nickel |
Surface: |
Bright , |
Shape: |
Wire, Ribbon, Strip, Etc |
Diameter: |
0.02 -5.0mm |
Standard: |
GB, ASTM Etc |
Packing: |
Wooden Case |

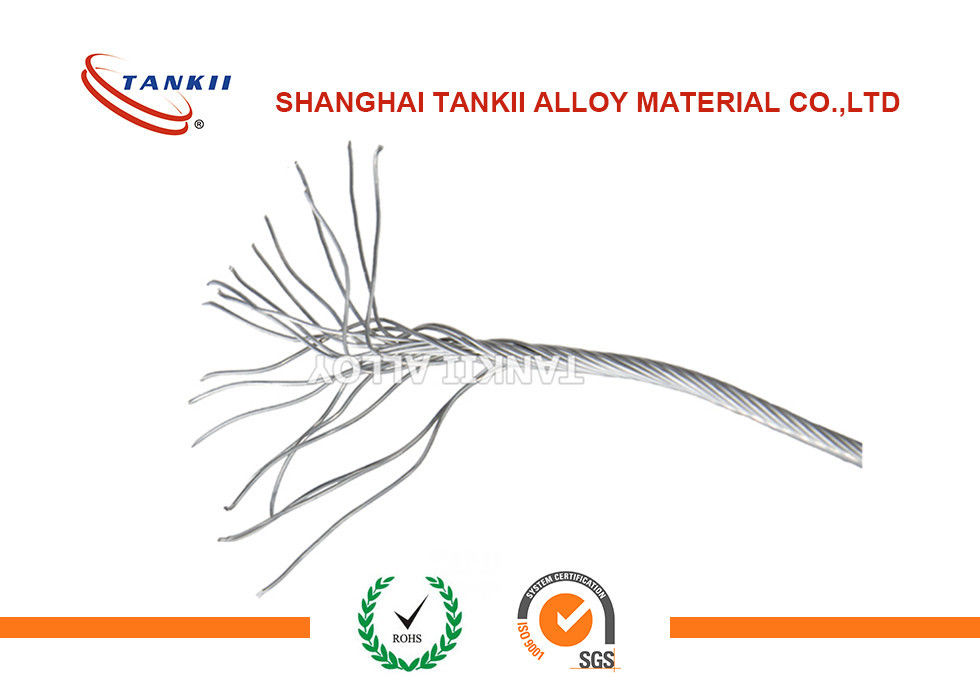

Fe-Cr-Al,Ni-Cr ,pure nickel,Ni 200 Ni201 electrical resistance nickel chrome stranded wire
Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600℉(315℃). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.℃) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446℃ |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.℃ |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
| Main Composition % | |||
| Ni | Mn | Si | |
| NiMn2 | Bal. | 1.5-2.5 | 0.3 |
| NiMn3 | Bal. | 2.3-3.3 | 0.3 |
| NiMn5 | Bal. | 4.6-5.4 | 0.5 |
| Code No. | Dia. mm | TS. N/mm2 | Elongation % |
| NiMn2 | ≤6.0 | ≥350 | ≥20 |
| NiMn3 | ≤6.0 | ≥350 | ≥20 |
| NiMn5 | ≤6.0 | ≥350 | ≥20 |
Nickel 201 is a low carbon variety compared with nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.
The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300℃.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 201 | Min 99 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.02 | Max 0.01 |
Physical Data
| Density | 8.9g/cm3 |
| Specific Heat | 0.109(456 J/kg.℃) |
| Electrical Resistivity | 0.085×10-6ohm.m |
| Melting Point | 1435-1445℃ |
| Thermal Conductivity | 79.3 W/m-K |
| Mean Coeff Thermal Expansion | 13.1×10-6m/m.℃ |
Typical Mechanical Properties
| Mechanical Properties | Nickel 201 |
| Tensile Strength | 403 Mpa |
| Yield Strength | 103 Mpa |
| Elongation | 50% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
