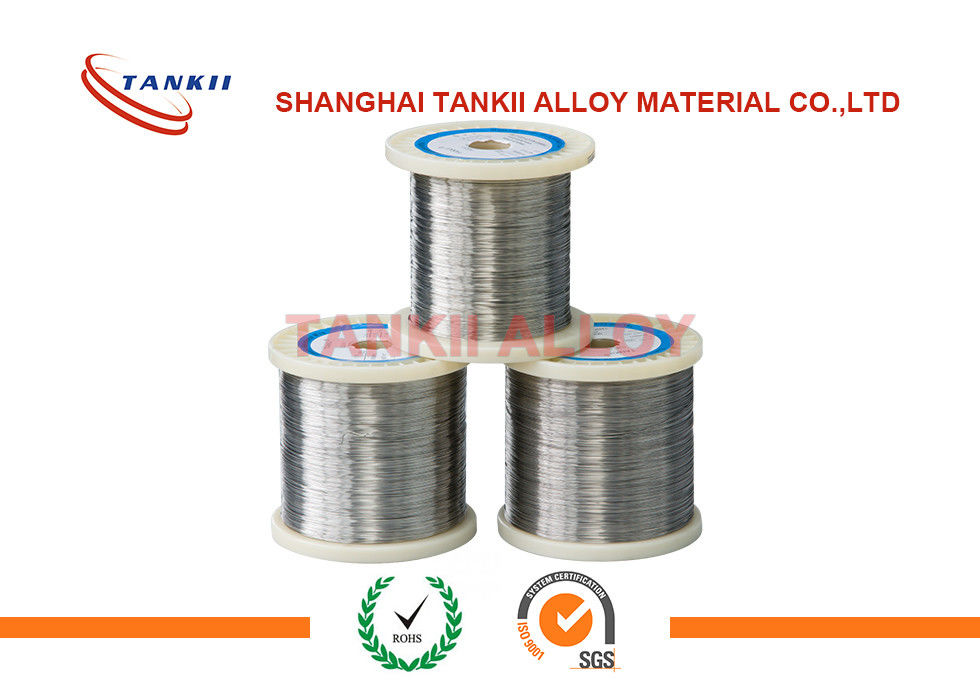

Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity

Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity

    • Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity
    • Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity
    • Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity
    • Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity
  • Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008/ ROHS
    Model Number: CUNI23

    Payment & Shipping Terms:

    Minimum Order Quantity: 30kg
    Price: To negotiate
    Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 2000+TON+YEAR
    Contact Now
    Detailed Product Description
    Grades Provided: CuNi19, CuNi23, CuNi40, CuNi30, CuNi44 Shape: Round Wire/ Flat Wire/ Stranded Wire/ Enamelled Wire
    Similar Grade: Alloy 180, NC030, Etc Application: Heat Cable
    Feature: Low Resistivity, Good Corrosion Resistance Conductor Type: Solid

    Cu-Ni23/ Alloy 180 Cupronickel Precision Alloy Thin Low Resistivity Wire/ Ribbon





    CuNi alloy grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuMu12Ni, CuNi34, CuNi40 (6J40),CuNi44.

    Copper nickel alloy sizes:
    Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
    Strip: 0.005*5.0-5.0*250mm
    Bars: OD 4-100mm

    Appicaton:
    Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product
    Size
    Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
    Strips: 0.05*5.0-5.0*250mm Bars: D10-100mm



    Super alloys or high performance alloys have an ability to function at temperatures above 540ºC(1000ºF) with deformation resistance and high surface stability. As they have good oxidation and creep resistance, super alloys can be forged, rolled to sheet or produced in various shapes. Iron-base, nickel-base and cobalt-base alloys are the major types of super alloys. Nickel-base and cobalt-base super alloys may be cast or wrought based on its composition or application. The iron-base super alloys are generally wrought alloys with stainless steel technology. These alloys can be strengthened by precipitation hardening, work hardening and solid-solution hardening.





    For the measurement of very large strains, 5% (50 000 microstrain) or above, annealed constantan (P alloy) is the grid material normally selected. Constantan in this form is very ductile; and, in gauge lengths of 0.125 inches (3.2 mm) and longer, can be strained to >20%. It should be borne in mind, however, that under high cyclic strains the P alloy will exhibit some permanent resistivity change with each cycle, and cause a corresponding zero shift in the strain gauge. Because of this characteristic, and the tendency for premature grid failure with repeated straining, P alloy is not ordinarily recommended for cyclic strain applications. P alloy is available with S-T-C numbers of 08 and 40 for use on metals and plastics, respectively.





      Cu CuNi2 CuNi6 CuNi10 CuNi23Mn CuNi44
    Tensile strength [N/mm²] 220-300 260-360 270-370 300-390 500-550 560-680
    Yield strength at 1% elongation [N/mm²] 120-200 140-240 160-220 140-250 200-330 400-500
    Bending proof performance [%] 100     160 760
    Resistance (IACS) [%] 101 34 17 12 6 3
    Conductivity [S*m/mm²] 58.5 20.0 10.0 6.7 3.33 2.0
    Resistivity [Ohm*mm²/m] 0.0171 0.05 0.10 0.1493 0.30 0.50
    Thermal coefficient of resistance [1E-6/K] 3900-4300 1100-1600 500-900 350-400 150-200 -80 - +40
    Solderability [-] good good good good good no conventional soldering



    Tankii, as a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
    Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44.








    Alloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low ResistivityAlloy 180 Cupronickel Precision Alloy Flat Wire CUNI23 Thin Low Resistivity
