Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX， JX， TX
Payment & Shipping Terms
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Color: |
Tailor-made |
Insulation Material: |
Fiberglass |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Shipping: |
By DHL/FedEx/TNT/UPS |
Item: |
Rohs Qaulified Compensating Thermocouple Wire With Fiberglass Insulation Withstand 1000C High Temperature |
Color: |
Tailor-made |
Insulation Material: |
Fiberglass |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Shipping: |
By DHL/FedEx/TNT/UPS |
Item: |
Rohs Qaulified Compensating Thermocouple Wire With Fiberglass Insulation Withstand 1000C High Temperature |

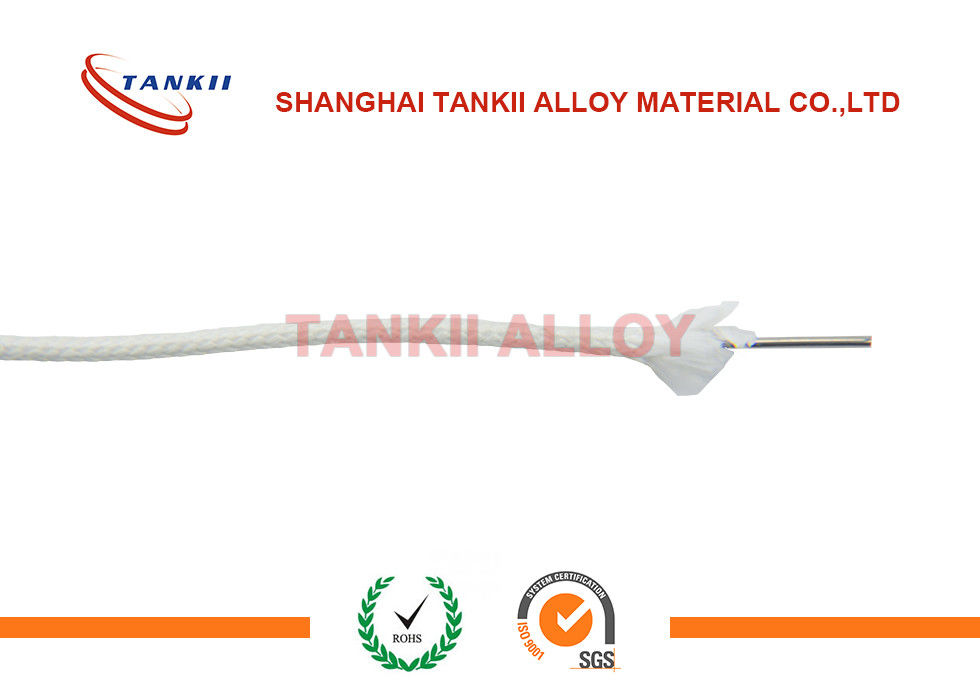

Name:Thermocouple wire
Model: KX, JX, TX
Size: tailor-made
Structure- cusomized
Conductor type: solid or stranded wire, single core or multi-core
Insulation: PTFE, Fiberglass, PVC, Rubber or PFA
Screen material : Stainless steel braided, tinned copper wire braided
Color: As per ANSI, DIN, IEC standard
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
Properties of insulation materials
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PE | 80 | Good | Excellent | Excellent | Excellent | Poor |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| TPE | 125 | Excellent | Poor | Good | Good | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
