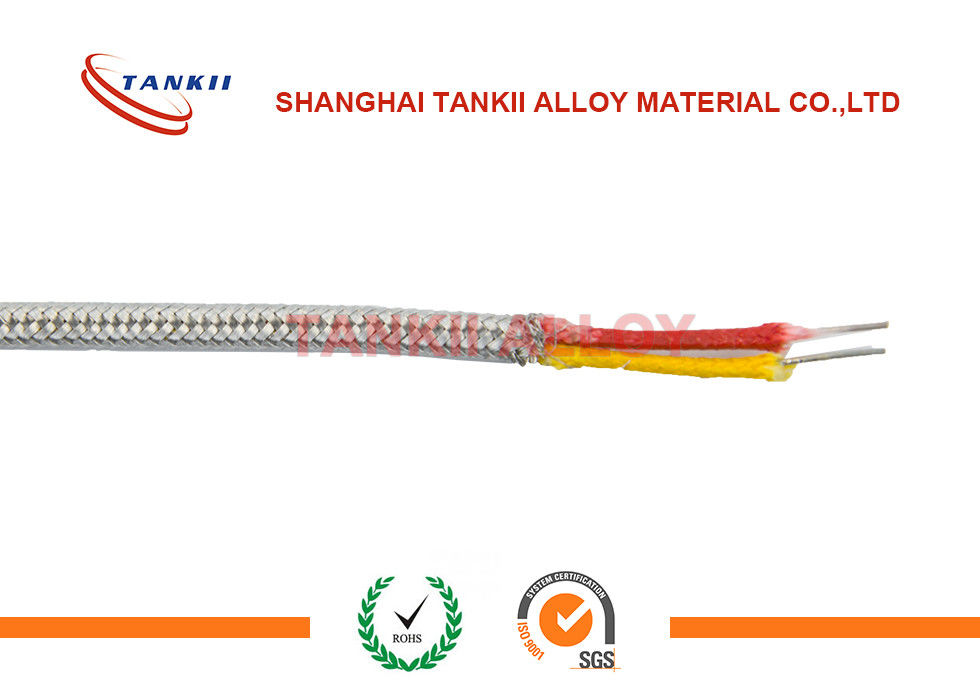

Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code

Certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
Customer Reviews
We received the goods, everything went fine. Perfect packaging, good product quality, good price - we are satisfied.

—— May***

I bought thermocouple wire from Selina, she is a very responsible lady,Tankii's products quality is pretty good.

—— Alfred***

Qualified products. We may place more orders to TANKII.

—— Matthew***

I'm Online Chat Now

Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code

Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code
Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code

Large Image :  Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K type thermocouple cable
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code

Description
Color: Green -white- Green Insulation Material: MgO
Conductor Type: Solid Or Multi Standard: ANSI, IEC
Leading Time: 5~7 Days Type: K Type Thermocouple Cable
Shipping: By DHL/FedEx/TNT/UPS Item: Fiberglass Insulated Thermocouple Wire K J T Type With Tailor-Made Color Code Used For Thermocouple Extension Cable
Highlight:

high temperature thermocouple cable

,

thermocouple cable k type

Fiberglass Insulated Thermocouple Wire K J T Type With Tailor-Made Color Code Used For Thermocouple Extension Cable

Description:


Name:Thermocouple wire

Model: K, J, T Type

Size: tailor-made

Structure

Conductor type: solid or stranded wire

Insulation: Fiberglass, PVC, Rubber or PFA

Screen material : Stainless steel braided, tinned copper wire braided

Color: As per ANSI, DIN, IEC standard



Detailed Description

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX




























Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent
Packaging & Delivery

Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment



Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code 0


Fiberglass Insulated Type K Thermocouple Wire With Tailor - Made Color Code 1

FAQ:

1. Payment ways?
T/T, PAYPAL, WESTUNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request

4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

5. What is your warranty ?
For most of our products, the warranty will be 12 months.

6. When will I get a solution for defective products?
Within 48 hours (on working days )

7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.

Welcome to call me or email to me for more info on K type thermocouple cable .
