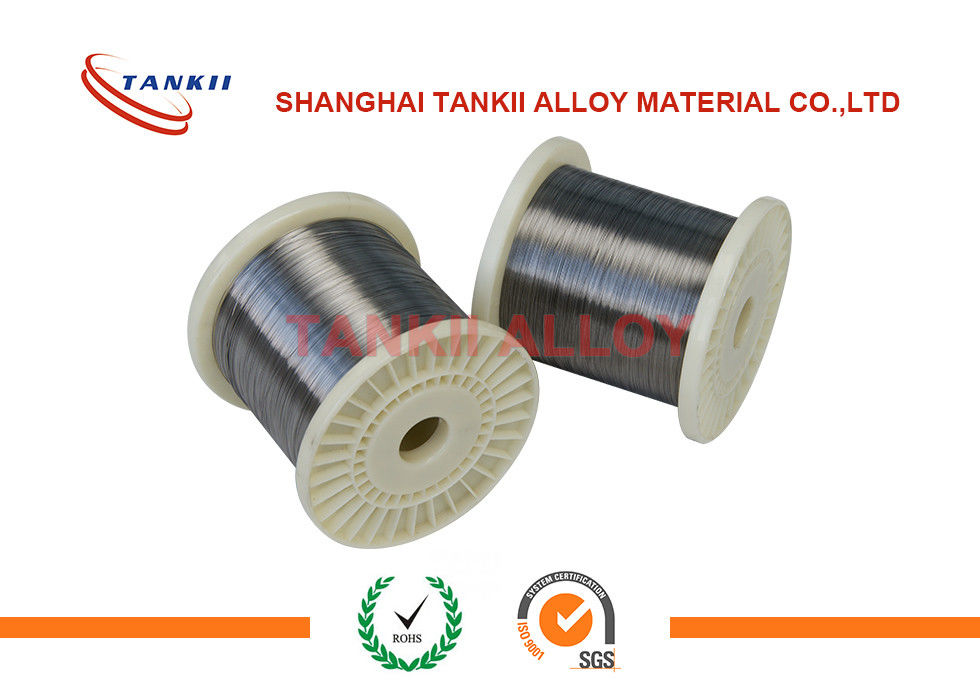

0.5mm Alloy 135 / 0cr23al5 Wire / Strip / RRbbon For Industrial Furnace Heating Elements

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO RoHS AISI ASTM GB

Model Number: Alloy 135 /0cr23al5

Payment & Shipping Terms

Minimum Order Quantity: 20Kg

Packaging Details: Carton,Wooden Pallet, Spool

Delivery Time: 10-15 woking days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200Tons/Month

Get Best Price
Contact Now
Specifications
Highlight:

high resistance wire

,

nickel alloys

Packing:
Carton,Wooden Pallet, Wooden Case, Spool
Craft:
Cold Rolled
Characteristics:
High Resistivity, Good Oxidation Resistance
Sample:
Free
Shape:
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil
Surface:
Oxidized
The Highest Use Temperature:
1250c
Density:
7.25
Resisivity:
1.45
Packing:
Carton,Wooden Pallet, Wooden Case, Spool
Craft:
Cold Rolled
Characteristics:
High Resistivity, Good Oxidation Resistance
Sample:
Free
Shape:
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil
Surface:
Oxidized
The Highest Use Temperature:
1250c
Density:
7.25
Resisivity:
1.45
Description
0.5mm Alloy 135 / 0cr23al5 Wire / Strip / RRbbon For Industrial Furnace Heating Elements
0.5mm Alloy 135 /0cr23al5 Wire/Strip/rRbbon for Industrial Furnace Heating Elements


General Description


FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.



Feature:


With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements



FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.

They are typically used in electrical heating elements in industrial furnaces and home appliances.



Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.



Applications

0Cr21Al6 Iron-chrome-aluminium electric resistor strip is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements



application area

Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,

aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,

food machinery, pharmaceutical machinery, and power engineering industry.



Chemical Content, %



Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe others
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 - 3.5-4.5 Rest -
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 - 4.5-5.3 Rest -
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest -
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest -
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest -
0Cr19Al3 0.06 0.025 0.025 0.7 ≤1.00 18.0-21.0 ≤0.60 3.0-4.2 Rest -
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest Nb add0.5
0Cr27Al7Mo2 0.05 0.025 0.025 0.2 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest



Main technical characteristics of FeCrAl Alloy:

Brand

Property

1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
Fe Balance Balance Balance Balance Balance Balance Balance
Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate
            Addition Nb:0.5

Addition

Mo:1.8-2.2

Component max. use temperature 950 1100 1250 1250 1250 1350 1400
Melting Point 1450 1500 1500 1500 1500 1510 1510
Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
Extension rate% 16 12 12   12 12 10
Repeated bending frequency     5 5 5 5 5
Fast lift h/ -     80/1300 80/1300   50/1350
Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

Linear expansion coefficient aX10-6/

(20-1000)

15.4 13.5 14.7 15.0 16.0 16.0 16.0
Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



0.5mm Alloy 135 / 0cr23al5 Wire / Strip / RRbbon For Industrial Furnace Heating Elements 0
