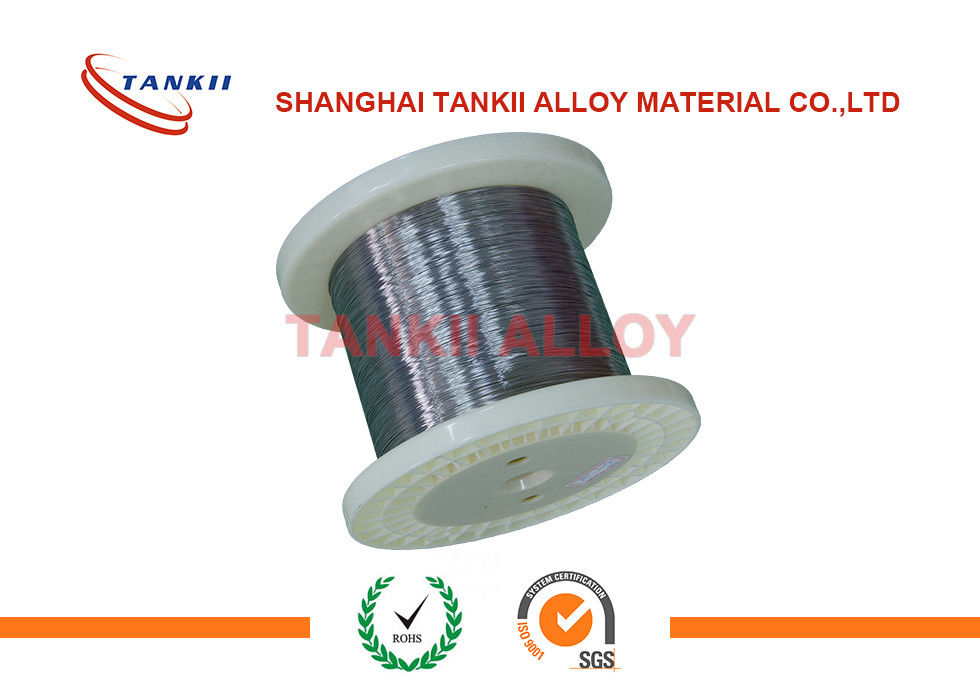

T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire

T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire

    • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire
    • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire
    • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire
    • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire
    • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire
  • T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: T

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg per leg
    Price: USD18.3~25.6/kg
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: Copper - Constantan Surface: Bright
    Diameter: ≥ 0.1mm Wire Type: Solid Wire
    Insulation: Customized Wire Class: I , II, III
    Leading Time: 5~20 Days After Getting The Payment Item: T Type Thermocouple Wire 0.2mm TP Copper And TN Constantan Wire Used For Thermocouple



    T Type Thermocouple Wire 0.2mm TP Copper and TN Constantan Wire Used for Thermocouple



    Quick Description



    A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.



    Our products conform to the standards of IEC584 -1and IEC-2.


    Thermocouple strips, thermocouple connectors are available.

    Application Range of thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation
    T Type Thermocouple Bare Wire 0.2mm TP Copper and TN Constantan Wire



    Thermocouple Type and Temperature Range

    Thermocouple type and index



    Measurement Range

    Type



    Index





    PtRh30-PtRh6

    B 600~1700



    PtRh13-Pt

    R 0~1600



    PtRh10-Pt

    S 0~1600



    NiCr-NiSi

    K -200~1300



    NiCr-CuNi (constantan)

    E -200~900



    Fe-CuNi (constantan)

    J -40~750



    Cu-CuNi (constantan)

    T -200~350



    NiCrSi-NiSi

    N -200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple

    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t





     Delivery and Packing of thermocouple wire:

    1. Packaging Details : On spool, in carton or wooden case  as per the qty

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty



    Welcome to call me or email to me for more information on T type thermocouple wire.
