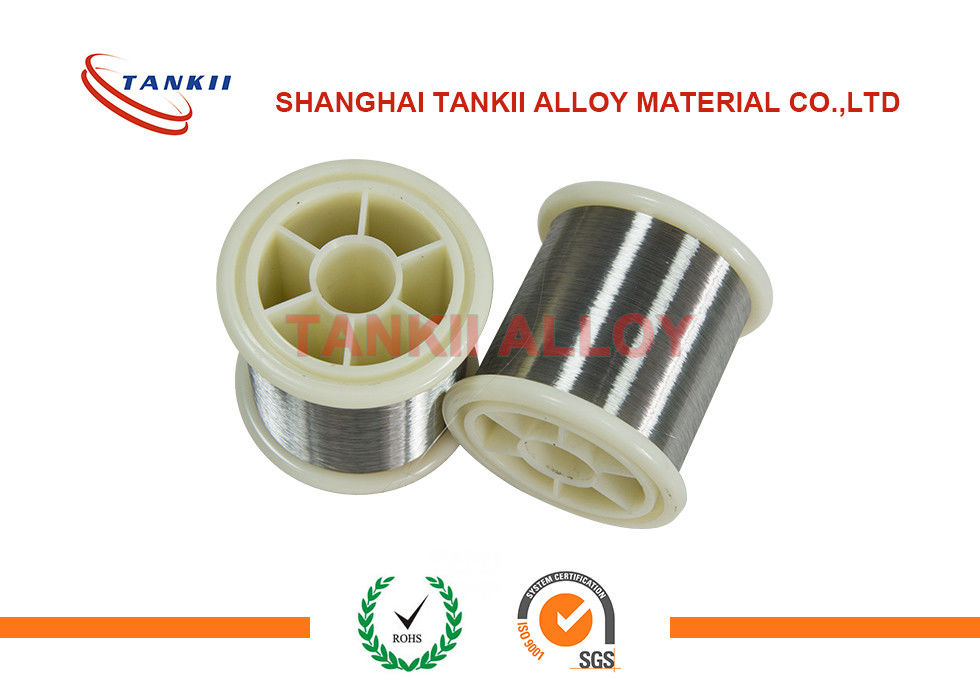

Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire

Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire

    • Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire
    • Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire
    • Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire
    • Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire
  • Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: CuNi44

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: To negotiate
    Packaging Details: Spool, Coil, Carton, Wooden Case with plastic film Required by Our Clients
    Delivery Time: 7-12 days after the payment
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: Tin , CuNi44 Insulation Material: Tin
    Temperature Tolerance: 200±5 Tensile Strength: 196-275
    Tin Thickenss: 0.005±0.002 Other Material Supplied: Pure Copper, Cupronickel,

    Tin Plating Copper Nickel Wire Tinned Constantan/ CuNi44 Micro Wire/ Wire/ Ribbon



    Copper wires are some of the most commonly used components in electrical work. Whether the job involves power generation, telecommunications or simple circuitry, copper-based components often play a key part in the project. Despite all its versatility and its relatively low cost, regular copper wire is not perfect for every situation. In certain conditions, copper wire must be specially treated to remain effective.



    Tinned copper wire is a type of copper wire coated in a thin layer of tin to protect the copper from corrosion that would decrease the wire’s efficiency in humid or rainy climates, high-heat environments and in certain types of soil. Tinned wire is more expensive than its non-tinned counterpart, but it lasts significantly longer and is easier to solder than non-tinned copper wire.



    Copper is the second most conductive metal in the world behind silver, but due to its abundance and how easy it is to work with, copper is considered the standard in electrical work. Copper is also the standard by which all other conductive metals are judged. In 1913, the International Electro-Technical Commission set its conductivity at 100 percent of the International Annealed Copper Standard (IACS). The metal resists galvanic corrosion – the gradual deterioration of one metal in electrical contact with another metal – and is durable enough that it avoids stretching, nicks and breaks. However, copper is not invincible.



    Tinning Benefits

    When you apply a thin coating of tin to bare copper wire, either by dipping the copper in molten metal or by using an electric current to bind the tin to the copper, you create what is known as tinned copper wire. Tinned copper wire is just as conductive as bare copper wire, but the thin layer of tin helps the wire resist corrosion. Tinned copper wire can last up to 10 times longer than its non-tinned counterpart, and because solder is composed primarily of tin, tinned wire is incredibly easy to solder. Tinned copper wire is particularly useful in industrial cranes, subways and marine projects where the tin coat makes the wire more resistant to water.





    Identification symbol

    Density at 20°C
    ρ20 kg/dm3

    Solidus temp °C

    Specific heat at 20°C
    J/(g . K)

    Thermal conductivity at 20°C
    W/(m . K)

    Mean of coefficient expansion

    Thermo-electric voltage versus copper
    μV/K

    (20 to 100°C)
    10-6/K

    (20 to 400°C)
    10-6/K

    CuNi2 8.9 1090 0.38 130 16.5 17.5 -15
    CuNi6 8.9 1095 0.38 92 16 17.5 -20
    CuNi10 8.9 1100 0.38 59 16 17.5 -25
    CuNi23Mn 8.9 1150 0.37 33 16 17.5 -30
    CuNi30Mn 8.8 1180 0.40 25 14.5 16 -25
    CuNi44 8.9 1230-12902 0.41 23 13.5 15 -40





    Tin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro WireTin Plating Copper Nickel Wire Tinned Constantan / CuNi44 Micro Wire
