TK1 Black Resistance FeCrAl Alloy , High Thermal Efficiency Stainless Steel Wire For Resistor

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: TK1

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: 5-8usd

Packaging Details: spool coil

Delivery Time: 5-45days

Payment Terms: T/T, Western Union

Supply Ability: 20000KG/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Product Name:
FeCrAl Alloy Wire
Material:
FeCrAl Alloy
Color:
Black
Shape:
Wire
Package:
Coil Or Spool
Delivery:
5-30days
Product Name:
FeCrAl Alloy Wire
Material:
FeCrAl Alloy
Color:
Black
Shape:
Wire
Package:
Coil Or Spool
Delivery:
5-30days
Description

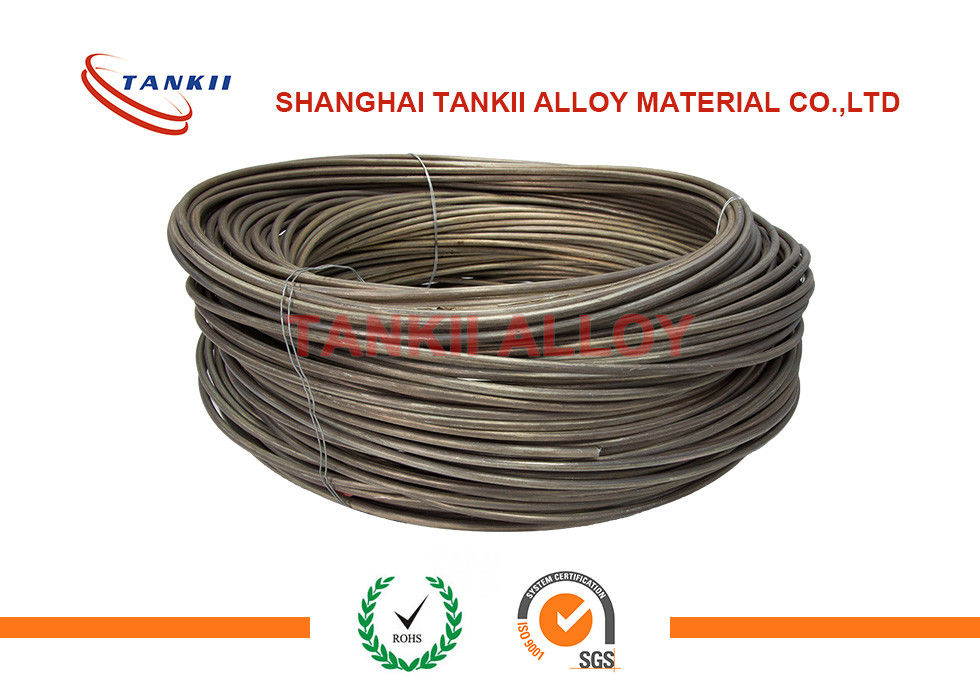

TK1 Black Resistance FeCrAl Alloy , High Thermal Efficiency Stainless Steel Wire For Resistor

FeCrAl alloy wire TK1 black resistance wire stainless steel wire for resistor

With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements
The product is widthly used in the production of precision eletronics industry cement resistance, sealing machine hair tropical diamond manufactuing heating elements and varous engine preheating device,lifting appliances and other electrical surge brake.

The chemical composition of the product is uneven,resistivity composition of the product is uneven,resistivity consistency ,small changes in temperature coefficient of resistance and long service life.


Alloy
1Cr13Al4
0Cr25Al5
0Cr21Al6
0Cr23Al5
0Cr21Al4
0Cr21Al6Nb
0Cr27Al7Mo2


MAIN
CHEMICAL COMPOSITION
Cr
12.0-15.0
23.0-26.0
19.0-22.0
22.5-24.5
18.0-21.0
21.0-23.0
26.5-27.8
Al
4.0-6.0
4.5-6.5
5.0-7.0
4.2-5.0
3.0-4.2
5.0-7.0
6.0-7.0
Re
opportune
opportune
opportune
opportune
opportune
opportune
opportune
Fe
Rest
Rest
Rest
Rest
Rest
Rest
Rest






Nb0.5
Mo1.8-2.2
MAX TEMPERATURE(oC)
650
1250
1250
1250
1100
1350
1400
RESISTANCE20oC (μΩ·m)
1.25
1.42
1.42
1.35
1.23
1.45
1.53
DENSITY(g/cm3)
7.4
7.1
7.16
7.25
7.35
7.1
7.1
HEAT EXCHANGE
52.7
46.1
63.2
60.2
46.9
46.1
45.2
expansion rate(α×10-6/oC)
15.4
16
14.7
15
13.5
16
16
melting point( oC)
1450
1500
1500
1500
1500
1510
1520
tensile strength(N/mm2)
580-680
630-780
630-780
630-780
600-700
650-800
680-830
elongation(%)
>16
>12
>12
>12
>12
>12
>10
variation of area(%)
65-75
60-75
65-75
65-75
65-75
65-75
65-75
bending frequency(F/R)
>5
>5
>5
>5
>5
>5
>5
hardness(H.B.)
200-260
200-260
200-260
200-260
200-260
200-260
200-260
micrographic structure
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
magnetic property
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic

Related Products:

NiCr series: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr16Ni60
We also produce other kind of nickel chromium alloys, such as NiCr 60/15, NiCr 70/30, NiCr 30/20. They are also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
Nikrothal 70, Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675, NCHW2.
