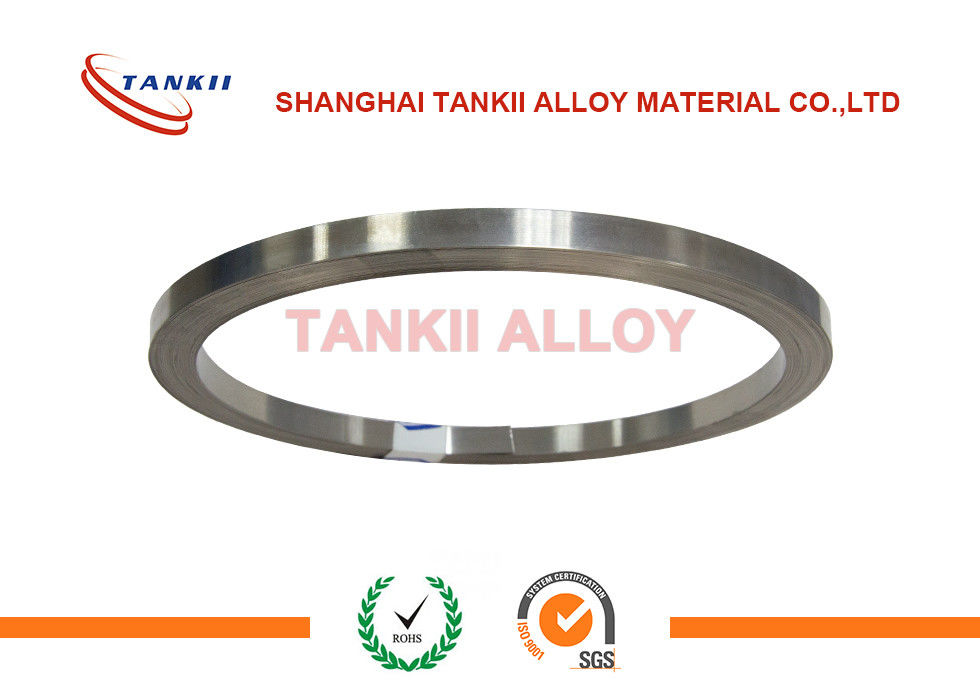

Low Embrittlement Nicr Alloy Bright Strip 0.1 * 5mm 0.1 * 3mm For Heat Elements

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: NiCr Alloy

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: 27.5 usd/kg

Packaging Details: Coil and spool

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20000/week

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Name:
NiCr Alloy
Material:
NiCr8020
Surface:
Bright
Shape:
Strip
Color:
Gray
Name:
NiCr Alloy
Material:
NiCr8020
Surface:
Bright
Shape:
Strip
Color:
Gray
Description
Low Embrittlement Nicr Alloy Bright Strip 0.1 * 5mm 0.1 * 3mm For Heat Elements

0.1*5mm 0.1*3mm NiCr8020 bright strip NiCr Alloy for heat elements



Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30


Nichrome's metallurgical structure confers them a very good plasticity when cold.

There is a growth of the grain under heat during utilisation of the element without inducing embrittlement of it when cold.

They are used for the manufacture of electric resistances for appliances (insulated elements type tubular resistances or for example opened elements on micanit plate) or for application of industrial furnaces.



In addition of a relatively high specific resistance, Ni-Cr alloys join all the necessary properties for good performances in use of furnaces: Resistance to oxidation (they are not sensitive to aggressions of humid air).



Low embrittlement at high temperature. Good plasticity-Easier to give them a shape compared with FeCrAl (lower mechanical characteristics allow indeed a good control of elasticity of the product during shaping (coiling, folding, drawing).



Good resistance to creeping (more important than ferritic alloys) which is important during conception of a resistance presenting big heights of waves. Maximal temperature recommended in the furnace: 1922/2012F in order to obtain a reasonable life time of the elements.





Chemical Composition and Main Properties of Nichrome
Properties Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
Main Chemical Composition Ni Balance Balance 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Balance Balance Balance
Max Continuous Service Temperature(oC) 1200 1250 1150 1100 1100
Resisivity 20oC (Ωmm2/m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal Conductivity(KJ/m·h·oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal Expansion(α×10-6/oC) 18 17 17 19 19
Melting Point( oC) 1400 1380 1390 1390 1390
Elongation(%) >20 >20 >20 >20 >20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic Weak magnetic Weak magnetic

Low Embrittlement Nicr Alloy Bright Strip 0.1 * 5mm 0.1 * 3mm For Heat Elements 0Low Embrittlement Nicr Alloy Bright Strip 0.1 * 5mm 0.1 * 3mm For Heat Elements 1Low Embrittlement Nicr Alloy Bright Strip 0.1 * 5mm 0.1 * 3mm For Heat Elements 2
