20mm * 2.5mm Nicr Alloy Bright Strip Ni80cr20 High Resistivity For Sheet Resistance

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO RoHS AISI ASTM GB

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20Kg

Price: USD27.27/Kg

Packaging Details: Wooden Cases or Cartons

Delivery Time: 10-20 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200Tons/Month

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Surface:
Bright Or Oxidated
Craft:
Cold Rolled
Characteristics:
High Resistivity, Good Oxidation Resistance
The Highest Use Temperature:
1200c
Resisivity:
1.09
Density:
8.4
Sample:
Free
Shape:
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil
Type:
Ni80cr20,Ni80,Alloy A,Resistohm 80,Cronix 80
Trade Term:
FOB, EXW, CIF
Surface:
Bright Or Oxidated
Craft:
Cold Rolled
Characteristics:
High Resistivity, Good Oxidation Resistance
The Highest Use Temperature:
1200c
Resisivity:
1.09
Density:
8.4
Sample:
Free
Shape:
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil
Type:
Ni80cr20,Ni80,Alloy A,Resistohm 80,Cronix 80
Trade Term:
FOB, EXW, CIF
Description

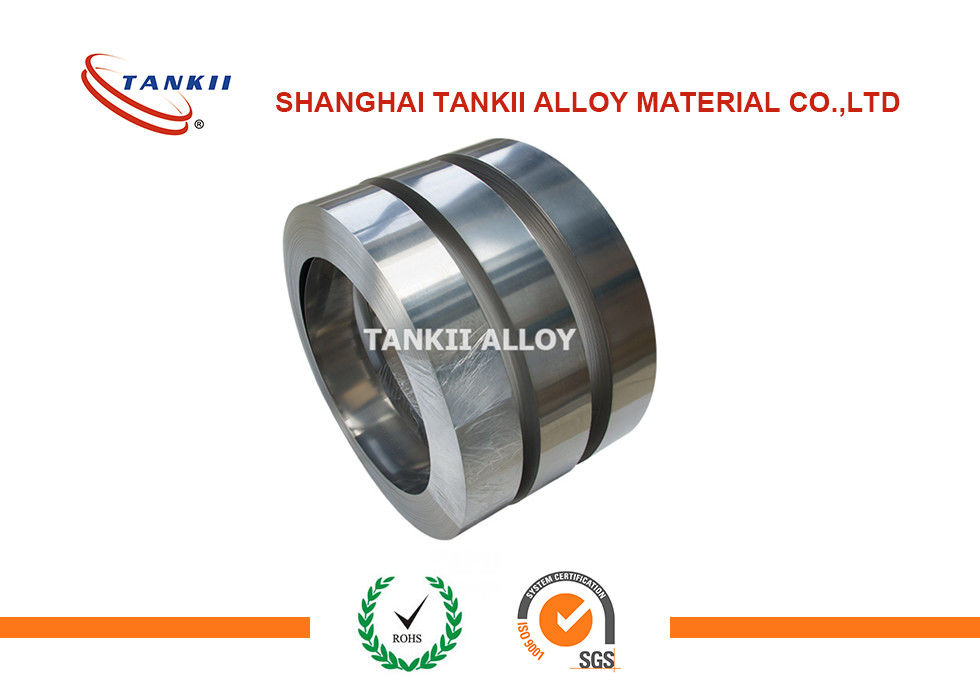

20mm * 2.5mm Nicr Alloy Bright Strip Ni80cr20 High Resistivity For Sheet Resistance

20mm*2.5mm in bright Ni80Cr20 Nichrome Strip for sheet resistance

Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Mechanical Properties of Nichrome 80

Max Continuous Service Temperature: 1200ºC
Resisivity 20ºC: 1.09 ohm mm2/m
Density: 8.4 g/cm3
Thermal Conductivity: 60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion: 18 α×10-6/ºC
Melting Point: 1400ºC
Elongation: Min 20%
Micrographic Structure: Austenite
Magnetic Property: nonmagnetic



Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.006 1.012 1.018 1.025 1.026 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 1.025 -


Style of supply


Alloys Name Type Dimension
Ni80Cr20W Wire D=0.03mm~8mm
Ni80Cr20R Ribbon W=0.4~40 T=0.03~2.9mm
Ni80Cr20S Strip W=8~250mm T=0.1~3.0
Ni80Cr20F Foil W=6~120mm T=0.003~0.1
Ni80Cr20B Bar Dia=8~100mm L=50~1000



LABEL AND OEM

1. We have our own brand, currently the sales region covers 28 countries and regions around the world, Our alloy products are quite popular and welcomed by customers all over the world. It will be our great honor if you become one of our customers.

2.We provide OEM services, we can do OEM for alloy products of your brand(such as print your lables). The processing method, the size, the quality, etc. Will all follow your requirements.

WISDOM NICR ALLOYS CHARACTERISTICS:

1)Manufactured according to international quality. System (ISO9001)

2)Stable resistance and long-life span

3)Mill test certificate will be provided after production

4)Size range wire:.0.018-10mm ribbons: 0.05-0.2*2-6mm strips: 0.05-5*5-450mm

5)Good packing methods to keep goods no damage during delivery

6)Customized lable, packing, OEM service

7)24 hours after-sale service


Production equipment

About samples

We can provide samples product and delivery service. Usually 4 to 7 days, the samples can be sent to you hand. As for any information about the sample or any specific requirements of the sample, please contact us via telephone, mail or online trade manager.

About Delivery and shipping

1. For the alloy products which we have raw material in stock.

We can deliver the products within 7-10 days after the payment has been confirmed.
We will choose the shipping way as you required: By sea, by air, by express, etc.
As for the costs and shipping period information, please contact us via telephone, mail or online trade manager.

2.For the alloy products need to start from smelting

We will finish the production within 20-25 days after the deposit has been confirmed. We will choose the shipping way as you required: By sea, by air, by express, etc.
As for the costs and shipping period information, please contact us via telephone, mail or online trade manager.

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?

We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
