Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: NP /NN
Payment & Shipping Terms
Minimum Order Quantity: 50kg per leg
Price: USD26~30/kg
Packaging Details: Standard exoprt package
Delivery Time: About 20 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
Nichrome Nickel |
Surface: |
Bright |
Thickness: |
0.2mm~1.0mm |
Leading Time: |
20 Days After Getting The Payment |
Application: |
-200～900 ℃ |
Item: |
N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm To 0.8mm Thickness |
Material: |
Nichrome Nickel |
Surface: |
Bright |
Thickness: |
0.2mm~1.0mm |
Leading Time: |
20 Days After Getting The Payment |
Application: |
-200～900 ℃ |
Item: |
N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm To 0.8mm Thickness |

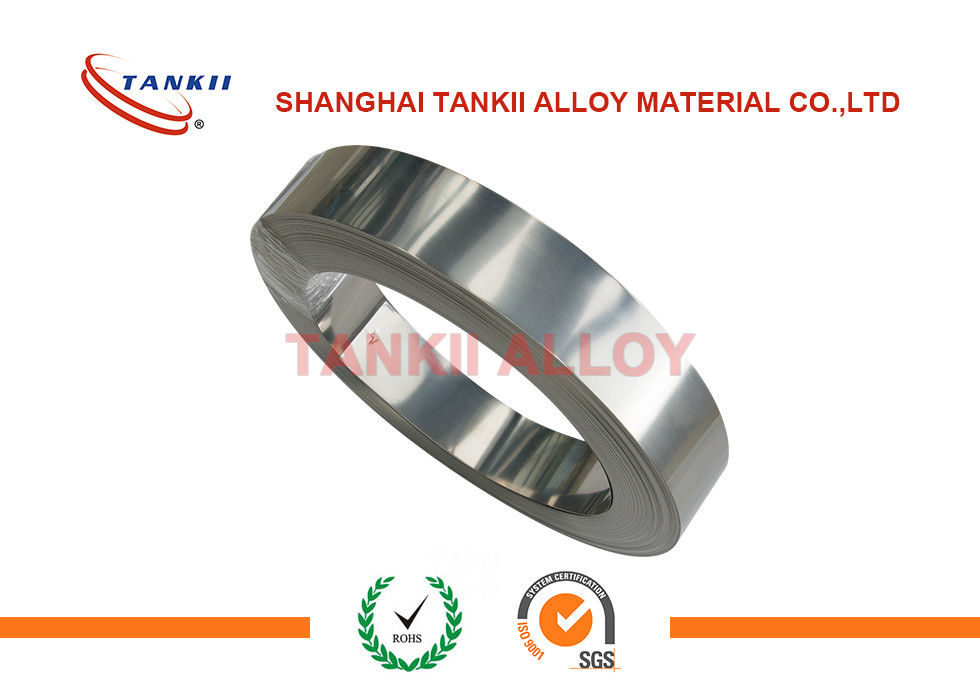

N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm to 0.8mm Thickness
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
Tankii's thermocouple products list includes the following:
