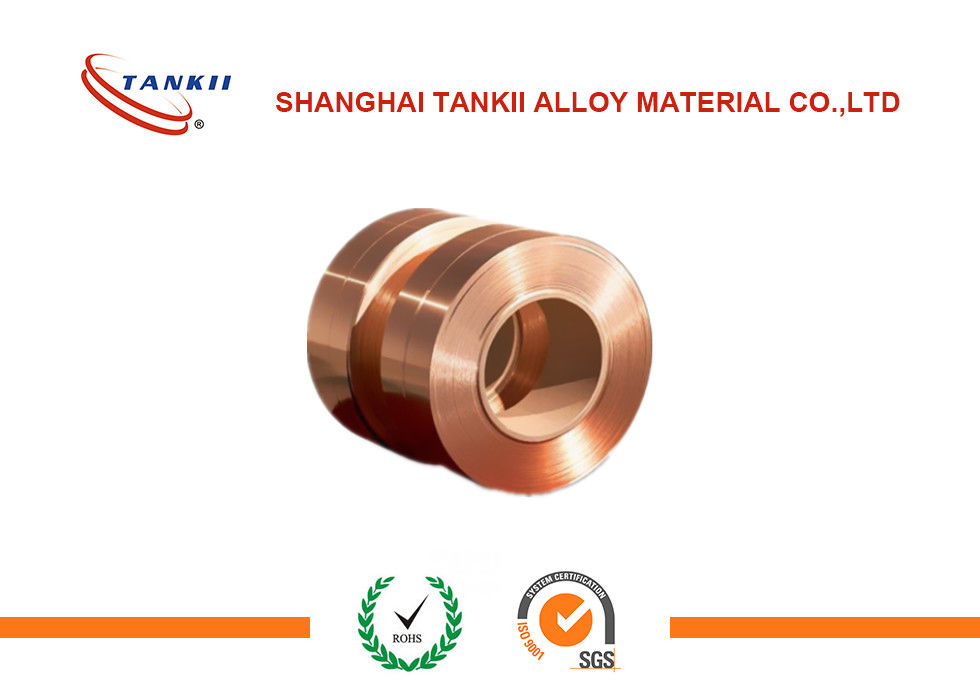

0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil

0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil

    • 0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil
    • 0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil
    • 0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil
    • 0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil
  • 0.01 - 2.5mm Copper Nickel Alloy Wire Cube2 Beryllium Bronze Strip In Coil

    Product Details:

    Place of Origin: Shanghai,China.
    Brand Name: TANKII
    Certification: SGS, ISO
    Model Number: C17200

    Payment & Shipping Terms:

    Minimum Order Quantity: 50KG
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 7-12days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 150Tons per month
    Contact Now
    Detailed Product Description
    Material: Cu-Be Surface: Bright Bronze Strip
    Shape: Strip / Coil / Tape Width: 0.5-300mm
    Thickness: 0.01mm Min Application: Temperature Controller, Spring, Relay Etc.
    Name: CuBe2 Type: Bronze Strip
    Standard: ASTM/JIS/GB Sample: Free

    0.01-2.5mm C17200 Cube2 Beryllium Bronze Strip Copper Strip / strap In Coil​



    Beryllium copper C17200



    Beryllium copper is based on beryllium as the main alloy of copper alloy, also known as beryllium bronze. It is the best performance of copper alloy in the high-performance elastic material, a high strength, flexibility, hardness, fatigue strength, elastic lag small, corrosion resistance, wear resistance, cold, high conductivity, non-magnetic, impact does not produce sparks A series of excellent physical, chemical and mechanical properties. Beryllium copper tape used in micro-motor brush, cell phone, battery.



    Chemical Composition

    ASTM Cu Ni Co Be
    C17200 Balance Ni+Co≥0.2,Ni+Co+Fe≤0.6 1.80-2.10



    Beryllium copper C17200

    Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



    Mechanical property:(before heat treatment)

    status Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    ( IACS%)
    Elongation
    (%)
    0 410-540 90-160 ≥17 35-70
    1/4H 510-620 145-220 ≥16 10-35
    1/2H 590-695 180-240 ≥15 5-25
    H 685-835 210-270 ≥15 2-8


    Mechanical property:(after heat treatment)

    status Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    (IACS%)
    Elongation
    (%)
    0T 1100-1380 325-400 22 3-11
    1/4HT 1180-1400 350-430 ≥22 2-8
    1/2HT 1240-1440 360-440 22 2-7
    HT 1270-1480 380-450 22 1-5



    Special Processing

    State Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    (IACS%)
    Elongation
    (%)
    OM 685-885 220-270 ≥17 ≥18
    1/4HM 735-930 235-285 ≥17 ≥10
    1/2HM 815-1010 260-310 ≥17 ≥8
    HM 910-1110 295-345 ≥17 ≥6
    XHM 1100-1290 340-390 ≥17 ≥2
    XHMS 1210-1400 360-410 ≥17 ≥2



    Applications
    Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
    machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
    stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,




    Features
    1. High thermal conductivity
    2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
    3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
    4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
    5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.



    Packing:

    SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
    1)SMC Standard
    2)Customization



    FAQ



    Q: Are you trading company or manufacturer ?

    A: We are trading company.



    Q: How long is your delivery time?

    A: Generally it is within 10 days if the goods are in stock. or it is less than 20 days if the goods are not in stock, it is according to quantity.



    Q: Do you provide samples ?

    A: Yes, we could offer the sample.



    Q: What is your terms of payment ?

    A:30% T/T in advance ,balance before shippment. And the price depends on the material and the quantity.
