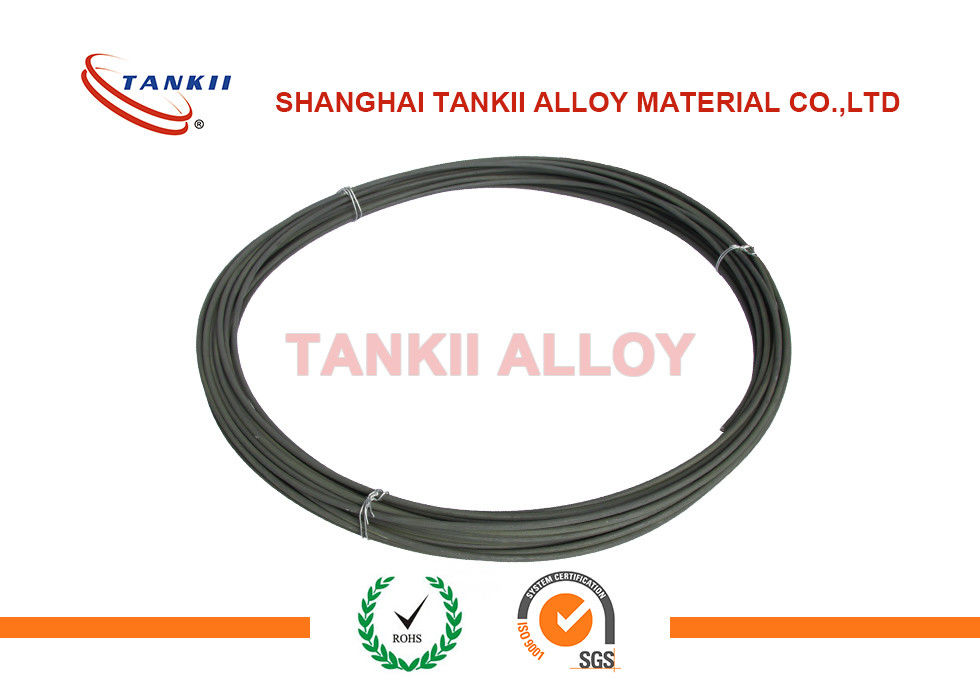

Oxidized Surface Resistance Heating Wire FeCrAl 0Cr25Al5 Resistor For Railway

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: Negotiable

Packaging Details: Wooden case, pallet

Delivery Time: 7~30 working days

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 3000T/Year

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

high resistance wire

Material:
FeCrAl
Package:
Wooden Case
Specification:
Negotiable
Use:
Resistance Materials
Resistivity At 20 ℃:
1.42 μΩ·m
Density:
7.1 G/cm³
Color:
Oxidized Surface
Thermal Conductivity:
46.1 KJ/m.h.℃
Coefficent Of Thermal Expansion:
16.0*10-6/℃
Melting Point:
1500℃
Elongation:
≥12%
Magnetic Property:
Non-manetic
Material:
FeCrAl
Package:
Wooden Case
Specification:
Negotiable
Use:
Resistance Materials
Resistivity At 20 ℃:
1.42 μΩ·m
Density:
7.1 G/cm³
Color:
Oxidized Surface
Thermal Conductivity:
46.1 KJ/m.h.℃
Coefficent Of Thermal Expansion:
16.0*10-6/℃
Melting Point:
1500℃
Elongation:
≥12%
Magnetic Property:
Non-manetic
Description
Oxidized Surface Resistance Heating Wire FeCrAl 0Cr25Al5 Resistor For Railway

Oxidized Surface Electric Alloy Ferro Alloy Resistance Heating Wire FeCrAl 0Cr23Al5 Resistor For Railway Application


1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
We also produce below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
Kanthal A1, Kanthal, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF Kanthal AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, Kanthal APM
Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


2.Specification
1).Bright Surface Wire:
Diameter:0.01~2mm

2).Acid White Surface Wire:
Diameter:1.0~2.0mm

3).Oxidized Surface Wire:
Diameter:2.0~10.0mm



3. Details of tankii Fecral wires

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08

1.42
±0.06

1.42
±0.07

1.35
±0.07

1.23
±0.07

1.45
±0.07

1.53
±0.07

Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic


Oxidized Surface Resistance Heating Wire FeCrAl 0Cr25Al5 Resistor For Railway 0
