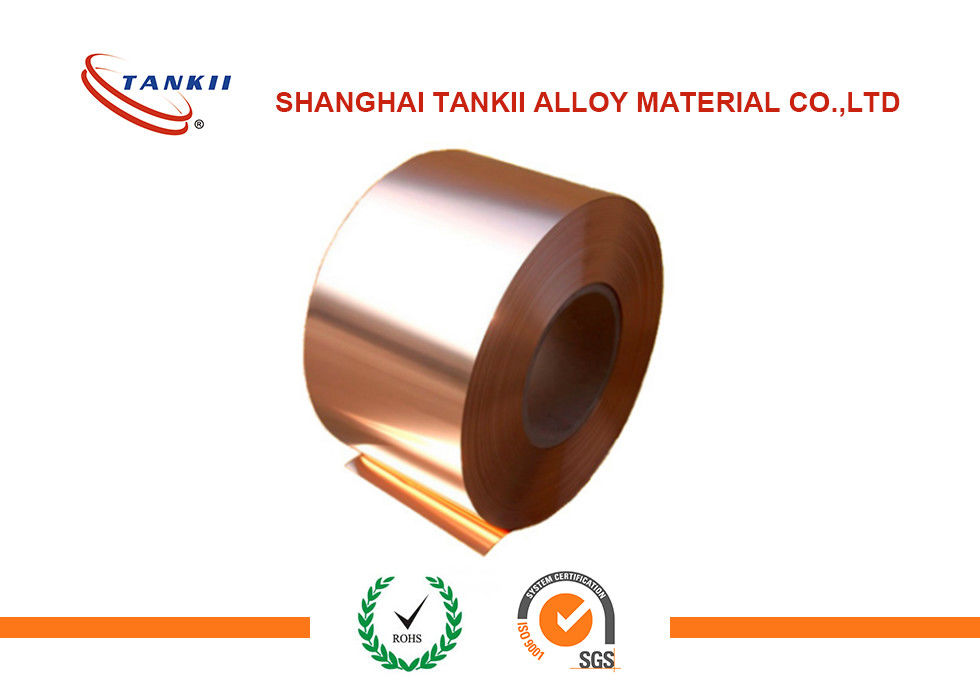

0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch

0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch
0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch 0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch 0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch 0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch

Large Image :  0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch

Product Details:
Place of Origin: Shanghai,China.
Brand Name: TANKII
Certification: SGS, ISO
Model Number: C17200
Payment & Shipping Terms:
Minimum Order Quantity: 50KG
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150Tons per month

0.1 * 250mm Beryllium Copper Strip Cube2 Alloy Bright Surface For Switch

Description
Material: Cu-Be Alloy Surface: Bright
Shape: Strip / Coil / Tape Width: 300mm Max
Thickness: 0.01-2.5mm Application: Temperature Controller, Spring, Relay Etc.
Name: CuBe2 Type: Bronze
Highlight:

copper and nickel alloy

,

alloy of copper and nickel

C17200 0.1*250mm C1720 Beryllium Copper Strip / Tape /Coil CuBe2 for Switch​



Beryllium copper C17200

Beryllium copper is based on beryllium as the main alloy of copper alloy, also known as beryllium bronze. It is the best performance of copper alloy in the high-performance elastic material, a high strength, flexibility, hardness, fatigue strength, elastic lag small, corrosion resistance, wear resistance, cold, high conductivity, non-magnetic, impact does not produce sparks A series of excellent physical, chemical and mechanical properties. Beryllium copper tape used in micro-motor brush, cell phone, battery.



Chemical Composition

ASTM Cu Ni Co Be
C17200 Balance Ni+Co≥0.2,Ni+Co+Fe≤0.6 1.80-2.10



Mechanical property:(before heat treatment)

status Tensile strength
(N/mm2)
Hardness
(HV)
Conductivity
( IACS%)
Elongation
(%)
0 410-540 90-160 ≥17 35-70
1/4H 510-620 145-220 ≥16 10-35
1/2H 590-695 180-240 ≥15 5-25
H 685-835 210-270 ≥15 2-8


Mechanical property:(after heat treatment)

status Tensile strength
(N/mm2)
Hardness
(HV)
Conductivity
(IACS%)
Elongation
(%)
0T 1100-1380 325-400 22 3-11
1/4HT 1180-1400 350-430 ≥22 2-8
1/2HT 1240-1440 360-440 22 2-7
HT 1270-1480 380-450 22 1-5



Special Processing

State Tensile strength
(N/mm2)
Hardness
(HV)
Conductivity
(IACS%)
Elongation
(%)
OM 685-885 220-270 ≥17 ≥18
1/4HM 735-930 235-285 ≥17 ≥10
1/2HM 815-1010 260-310 ≥17 ≥8
HM 910-1110 295-345 ≥17 ≥6
XHM 1100-1290 340-390 ≥17 ≥2
XHMS 1210-1400 360-410 ≥17 ≥2



Applications
Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,




Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.



FAQ



Q: Are you trading company or manufacturer ?

A: We are trading company.



Q: How long is your delivery time?

A: Generally it is within 10 days if the goods are in stock. or it is less than 20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ?

A: Yes, we could offer the sample.



Q: What is your terms of payment ?

A:30% T/T in advance ,balance before shippment. And the price depends on the material and the quantity.
