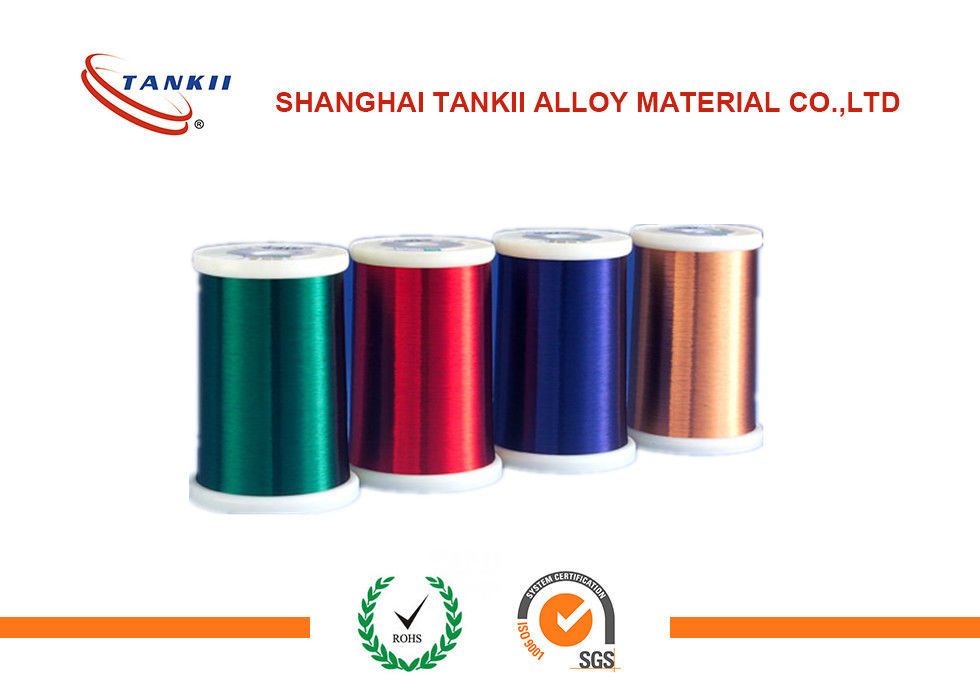

Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors

Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors

    • Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors
    • Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors
    • Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors
    • Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors
  • Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: Stainless Steal 430

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 kg
    Price: To negotiate
    Packaging Details: Spool, coil, carton. pallet, wooden case with packing material as custom demanded
    Delivery Time: 7-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20+TON+MONTH
    Contact Now
    Detailed Product Description
    Diameter: 0.1mm Type: Enamelled Wire
    Colour: Natural, Green, Red Or As Custom Demanded Insulation Material: Polyester Imine, Polyester
    Insulation Type: Composite Coating, Single Coating Other Material: Copper, Manganin, Cupronickel And So On

    Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors





    Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.

    The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.



    Enamelled wires are important for the application of the coil. For example thermal resistance (cut through temperature) or temperature durability or processing characteristics (solderability) are important criteria.



    There is a big variety of enamelled wire types available. The different insulations are described in different standards, such as IEC 60 17, NEMA 60 317 or JIS C 3202, which sometimes still use different test methods.

    Under the respective standard (customized to the region where appropriate), the typical technical values are given for the different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimide, etc.

    For easier comparison of products and the evaluation of their suitability for certain applications there is a tick-box below each of the product-codes and a "Compare Selected Items" button in the precolumn of the table. When this button is klicked, only the marked items are left over and appear side by side. This view of the table is also suitable for printing; use the options of your browser for this purpose, please.

    Using the "Show all" button makes the invisible products reappear again.





    The most suitable materials for magnet wire applications are unalloyed pure metals, particularly copper. When factors such as chemical, physical, and mechanical property requirements are considered, copper is considered the first choice conductor for magnet wire.

    Most often, magnet wire is composed of fully annealed, electrolytically refined copper to allow closer winding when making electromagnetic coils. High-purity oxygen/free copper grades are used for high-temperature applications in reducing atmospheres or in motors or generators cooled by hydrogen gas.

    Aluminium magnet wire is sometimes used as an alternative for large transformers and motors. Because of its lower electrical conductivity, aluminium wire requires a 1.6-times larger cross sectional area than a copper wire to achieve comparable DC resistance.





    PEW
    Type QZ-1-2/130L/155
    Diameter 0.50-2.50
    0.40-0.49
    0.30-0.39
    0.20-0.29
    0.15-0.19
    Thermal B 130 ºC F 155 ºC
    Standard GB/T6109.1-2008
    GB/T6109.7-2008(130L)
    GB/T6109.2-2008(155)
    Application Fan, air-conditioner, electric tool, washing-machine, micro-motor, explosion-proof motor, ballast, dry-type transformer and other windings in electrical tool.
    Features 1. Excellent heat-resisting wire
    2. Good solvent resistance
    3. Mechanical strength with (PVF) enameled wire match
    4. electrical performance with polyester enamelled round copper wire match
    5. Excellent softness and aging



    Round Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For ResistorsRound Polyester Enameled Winding Wire 0.1 Mm 430 Stainless Steal For Resistors
