Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: Monel 400
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Carton, wooden case according to custom's requirements
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200+TON+MONTH
Material: |
Copper, Nickel |
Colour: |
Silver |
Shape: |
Pipe/ Tube |
Shipment: |
By Air, Sea, Express |
Alloy Or Not: |
Is Alloy |
Application: |
Oil Industry, Elastic Parts |
Material: |
Copper, Nickel |
Colour: |
Silver |
Shape: |
Pipe/ Tube |
Shipment: |
By Air, Sea, Express |
Alloy Or Not: |
Is Alloy |
Application: |
Oil Industry, Elastic Parts |

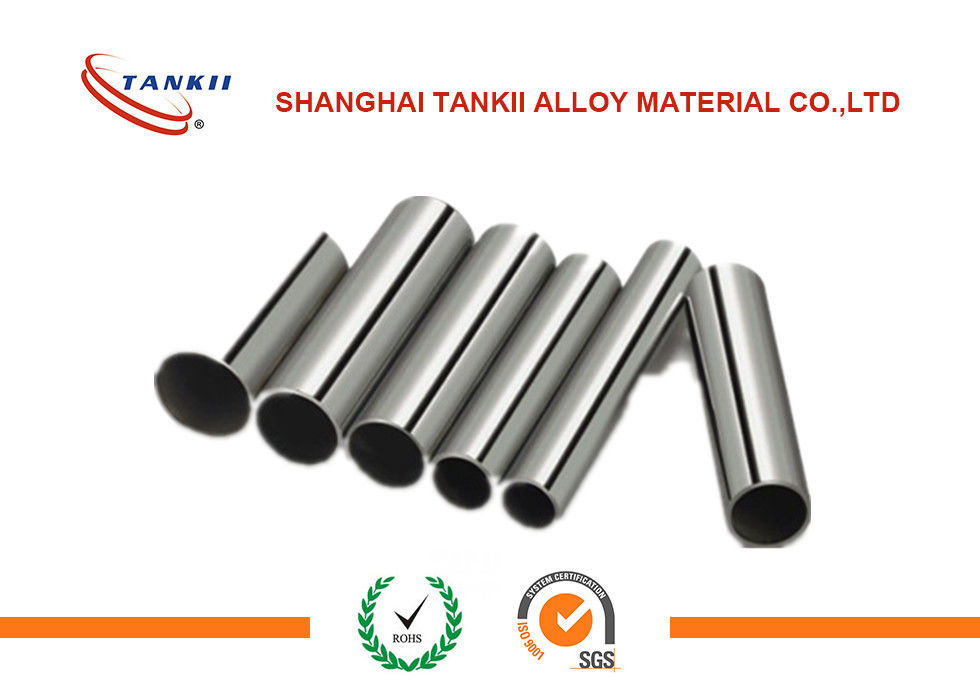

Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Alloy K-500 has approximately twice the tensile strength and triple the yield strength of Alloy 400. The strength of Alloy K-500 is maintained to 1200 degrees Fahrenheit, but stays ductile and tough down to temperatures of -400 degrees Fahrenheit. Alloy K-500 also stays non-magnetic to -200 degrees Fahrenheit.
Additional characteristics of Alloy K-500 include outstanding corrosion resistance in a wide range of chemical and marine surroundings, from salts and alkalis, non-oxidizing acids to pure water. Alloy K-500 is non-magnetic and spark resistant. It is also recommended that Alloy K-500 be annealed when it is welded and that any weldments be stress relieved prior to aging.
Monel K-500 Chemical composition:
| Alloy | % | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si |
| Monle K500 | Min. | 63 | 27.0 | 2.30 | 0.35 | |||||
| Max. | 33.0 | 3.15 | 0.85 | 2.0 | 1.5 | 0.01 | 0.25 | 0.5 |
Monel K-500 Physical properties:
| Density | 8.44 g/cm3 |
| Melting point | 1315-1350°C |
Monel K-500 minimum mechanical properties in the room temperature:
| Status | Tensile strength Rm N/mm2 |
Yield strength RP0.2N/mm2 |
Elongation A5 % |
| Monel K500 | 1100 | 790 | 20 |
Industries Served:
Specifications
PROPERTIES
Grey powder with spherical shape.
APPLICATION
Mainly used in Ni-Cr and Ni-H battery, filter, war industry, agglomerant for high density and melting point materials, powder metallurgy's additive, precision alloy, special steel etc.
| Inconel Series | Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851 Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856 Inconel 725 / UNS N07725 Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669 Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
| Hastelloy Series | Hastelloy B / UNS N10001 Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617 Hastelloy C Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610 Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602 Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819 Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
| Incoloy Series | Incoloy 925/UNS N09925-Oil Incoloy 825 / UNS N08825 / NS142 / W.Nr 2.4858 Incoloy 800HT / UNS N08811 / W.Nr 1.4954 Incoloy 800H/UNS N08810/W.Nr 1.4876 Incoloy A-286 / UNS S66286 / W. Nr. 1.4980 |
| Monel Series | Monel 400 / UNS N04400 / W.Nr 2.4360 |
| Nickel Series | Nickel 200 / UNS N02200 / W.Nr 2.40 Nickel 201 / GB/T N02201 / W.Nr 2.4060 |
