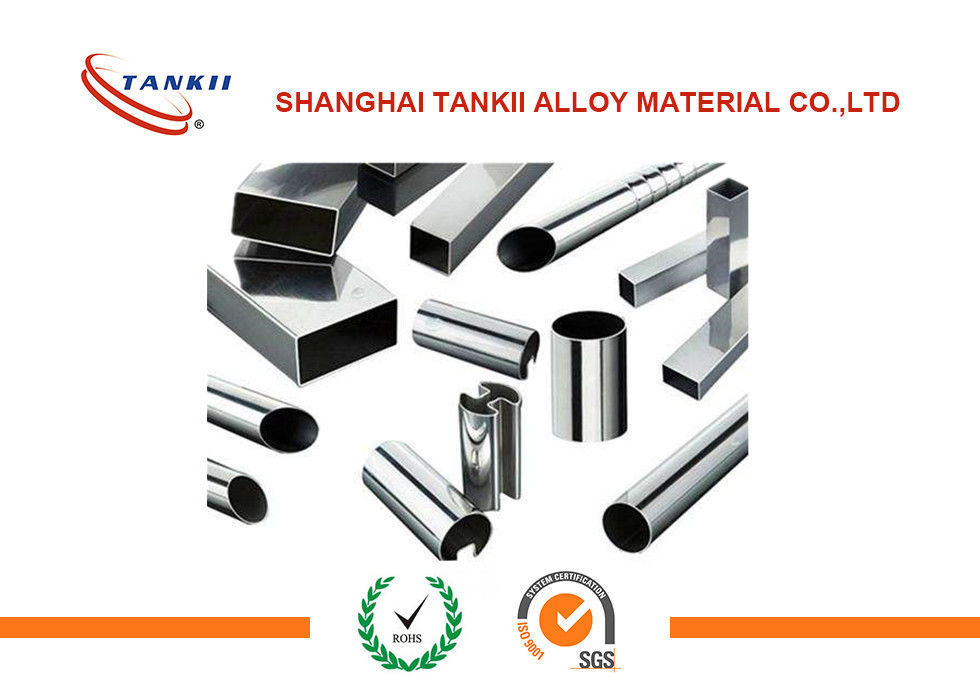

99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201

99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201

    • 99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201
    • 99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201
    • 99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201
    • 99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201
  • 99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2008
    Model Number: Ni201

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: To negotiate
    Packaging Details: Carton, wooden case according to custom's requirements
    Delivery Time: 7-15 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Type: Seamless/ Welded Chemical Composition: Min 99.5% Nickel
    Surface: Smooth, No Oil Size: As Customs Demand
    Port: Shanghai Property: Low Resistivity, Corrosion Resistance

    99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201



    1.Introduction

    The characteristics of commercial pure or low alloy nickel are very useful in many fields, such as chemical

    processes and electronics.Nickel has some resistance to various reducing chemicals, but there is no

    substitute for caustic soda.Compared with nickel-based alloys, commercial pure nickel has higher

    conductivity and thermal conductivity, higher Curie temperature and better magnetostrictive performance.

    Annealed nickel has low hardness, good ductility and flexibility.These characteristics together with its good

    welding performance make the metal easy to be processed and formed.The hardening rate of nickel is

    relatively low, but it can reach the medium strength level and maintain its ductility by cold working.

    Nickel 200 (N02200) pure Nickel alloy it has good mechanical properties and excellent resistance in many

    corrosive environments.Other useful features of the alloy include its magnetic energy, magnetostrictive

    energy, high thermal and electrical conductivity, low gas content and low evaporation pressure.The

    corrosion resistance of the nickel 200 makes it particularly useful for applications that require purity

    in products such as food, artificial fibres and caustic soda.Corrosion resistance is also widely used in

    structural applications when corrosion resistance is the main consideration.Other USES include chemical

    delivery drums, electronic and electrical components, aerospace and missile components.



    2.Chemical composition


    %
    Ni
    Fe
    C
    Mn
    Si
    Cu
    Si
    Nickel 200
    MIN

    Margin

    MAX
    0.4
    0.15
    0.35
    0.35
    0.25
    0.01


    3.Mechancial property
    Nickel 200 (N02200) pure Nickel alloys have good mechanical properties under high temperature,
    however, Nickel 200 is usually restricted to less than 600 ° F (315 ° C).The graphitization of nickel
    200 products will occur at high temperature, which will seriously degrade the performance of the
    products.In ° F (315 ° C) above, when using nickel is more commonly used is 201.Nickel 200 and
    nickel 201 are structural materials approved by ASME boiler and pressure vessel codes.Nickel
    200 approved the use of temperature can reach 600 ° F (315 ° C), nickel 201 approved by the
    service temperature can reach 1250 ° F (677 ° C).

    4.Variety specifications and supply status

    1. the classification of the varieties: Shanghai treasure island can produce all kinds of special alloy

    Nickel200 seamless tube, Nickel200 steel plates, Nickel200 round steel, Nickel200 flange, forgings,

    Nickel200 Nickel200 circle, Nickel200 welded pipe, Nickel200 steel belt, Nickel200 silk material, and

    form a complete set of welding material.

    2. Delivery status: seamless tube: solid solution + acid white, length adjustable;Plate: solid solution,

    acid cleaning, edge cutting;Welding tube: solid solution acid white +RT% detection, forging:

    annealing + car light;The bar is in the state of forging and rolling, surface polished or car polished;

    The strip is delivered through cold rolling, solid solution soft state and deoxidized leather.The silk

    material shall be delivered in the form of solid solution acid washing dish or straight strip and fine

    grinding state of solid solution straight strip.



    1, Nickel200 is very low carbon content of the pure commercial nickel, has been approved for use in

    service is as high as 300 ℃ high temperature environment.

    2. Nickel 200 application:

    • food processing equipment and salt refining equipment.

    • mining and ocean mining.

    • under 300 ℃ high temperature under the condition of equipment needed for manufacturing industrial

    sodium hydroxide.

    • production of organic or inorganic chlorides and fluoride: resistance to chlorine gas and fluoride gas

    corrosion.



    99.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni20199.5% Nickel Tube Pipe Welded/ Seamless Customized Size Ni200 / Ni201
