Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 0Cr15Al5
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: spool, coil, carton, wooden case with plastic film or other wrapping form as per client's requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1500+TON+YEAR
Material: |
Ferro Chromium Aluminum |
Colour: |
Silver |
Port: |
Shanghai, China |
Model: |
0Cr15Al5, 0Cr23Al5 |
Service: |
Fine After-sale Service |
Type: |
Wire/ Flat Wire/ Ribbon |
Material: |
Ferro Chromium Aluminum |
Colour: |
Silver |
Port: |
Shanghai, China |
Model: |
0Cr15Al5, 0Cr23Al5 |
Service: |
Fine After-sale Service |
Type: |
Wire/ Flat Wire/ Ribbon |

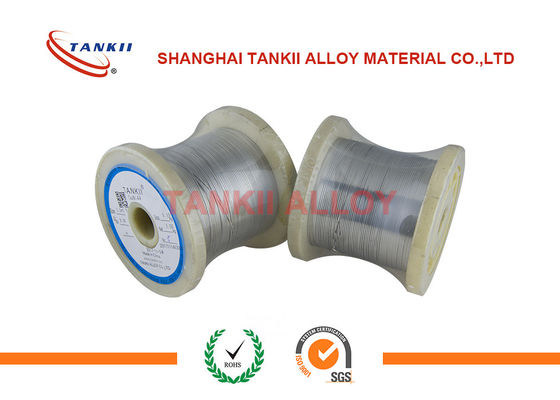

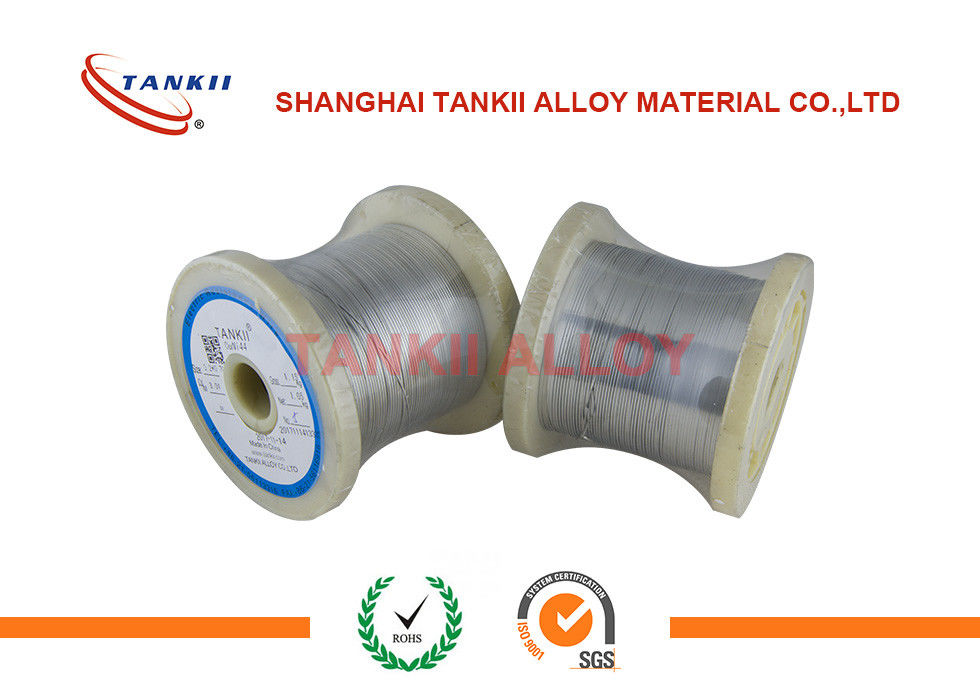

High Resistance Fecral Flat Wire/ Ribbon 0cr15al5 0cr23al5 For Rail Traction
Grade: 1Cr13Al4, 0Cr15Al5, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2
Size: Wire: 0.15~10mm
Bar: 12~120mm
| Properties/Grade | 1Cr13Al4 | 0Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical composition(%) | Cr | 12.0-15.0 | 18.0-21.0 | 19.0-22.0 | 22.5-24.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 3.0-4.2 | 5.0-7.0 | 4.2-5.0 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Nb:0.5 | Mo:1.8-2.2 | |||||||
| Max. continuous service temp. of element | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Resistivity at 20oC (μ Ω @ m) | 1.25+-0.08 | 1.23+-0.06 | 1.42+-0.07 | 1.35+-0.07 | 1.42+-0.06 | 1.45+-0.07 | 1.53+-0.07 | |
| Density (g/cm3) | 7.4 | 7.35 | 7.16 | 7.25 | 7.1 | 7.1 | 7.1 | |
| Thermal conductivity(KJ/m@ h@ oC) | 52.7 | 46.9 | 63.2 | 60.2 | 46.1 | 46.1 | 45.2 | |
| Coefficient of lines expansion(α × 10-6/oC) | 15.4 | 13.5 | 14.7 | 15 | 16 | 16 | 16 | |
| Melting point (approx. )( oC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Elongation at rupture (%) | ≥16 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥10 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | magnetic | magnetic | magnetic | magnetic | magnetic | magnetic | magnetic | |
As regards this electric heating alloy, we can suppply various wires, bars, plates, strips, rods, etc.
Description
With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is mainly used in electric ceramic cooktop, industrial furnace.
Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
