Fecral AlloyElectric Resistance Wire Round Flat For Tubular Heater

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: To negotiate

Packaging Details: spool, coil, carton,wooden case with plastic film or other wrapping form and labal form according to per custom's requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 3000+TON+YEAR

Get Best Price
Contact Now
Specifications
Highlight:

high resistance wire

,

nickel alloys

Model:
1Cr13Al4, 0Cr15Al5, 0Cr23Al5,0Cr25Al5...
Characteristic:
Excellent Straightness, Coil-forming Ability
State:
Hard, Half Hard, Soft
Composition:
Ferro Chromium Aluminum
Use:
Tubular Hearter, Electric Industry Furnace
Shipping Port:
Shanghai, China
Model:
1Cr13Al4, 0Cr15Al5, 0Cr23Al5,0Cr25Al5...
Characteristic:
Excellent Straightness, Coil-forming Ability
State:
Hard, Half Hard, Soft
Composition:
Ferro Chromium Aluminum
Use:
Tubular Hearter, Electric Industry Furnace
Shipping Port:
Shanghai, China
Description
Fecral AlloyElectric Resistance Wire Round Flat For Tubular Heater

Electric Fecral Alloy Heat Resistant Round Flat Wire For Tubular Heater



Description
Fe-Cr-Al alloy wires are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium and produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.
The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Fe-Cr-Al wire was shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon(strip).


Product forms and size range
Round wire
0.010-12 mm (0.00039-0.472 inch) other sizes are available on request.

Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 60, depending on alloy and tolerance
Other sizes are available on request.

Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.

Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.

In order to extend the service life, customers need to do pre oxidation treatment before using. The method is to heat alloy elements which have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.


Features and advantages
1. High using temperature, the maximum using temperature can reach 1400C (0Cr21A16Nb, 0Cr27A17Mo2, etc.)
2. Low temperature coefficient of resistance
3. Lower thermal expansion coefficient than the Ni-base super-alloys.
4. High electrical resistivity
5. Good corrosion resistance under high temperature, especially under the atmosphere containing sulfides
6. High surface load
7. Creep-resistant

8. Lower raw-material cost, Lower density and cheaper price compared with Nichrome wire.
9. Superior oxidation resistance at 800-1300ºC
10. Long service life


Application
Our products (FeCrAl) high resistance electric heating wire materials are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliances, glass and other civil or industrial fields.



Main characteristics of Fe-Cr-Al- high resistances electric heating alloys



Brand name 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main chemical composition% Cr 12.0-15.0 23.0-26.0 19.0-22.0 22.5-24.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.0 3.0-4.2 5.0-7.0 6.0-7.0
RE opportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max.continuous
service temp.of
element (ºC)
950 1250 1250 1250 1100 1350 1400
Resistivity
μΩ.m,20ºC
1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density
(g/cm3 )
7.4 7.10 7.16 7.25 7.35 7.10 7.10
Thermal
conductivity
KJ/m.h.ºC
52.7 46.1 63.2 60.2 46.9 46.1 45.2
Coefficient of
lines expansion
α×10-6/ºC
15.4 16.0 14.7 15.0 13.5 16.0 16.0
Melting pointºC 1450 1500 1500 1500 1500 1510 1520
Tensile strength
Mpa
580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at
rupture %
>16 >12 >12 >12 >12 >12 >10
Variation of
area %
65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat bending
frequency(F/R)
>5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Micrographic
structure
Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic
properties
Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic

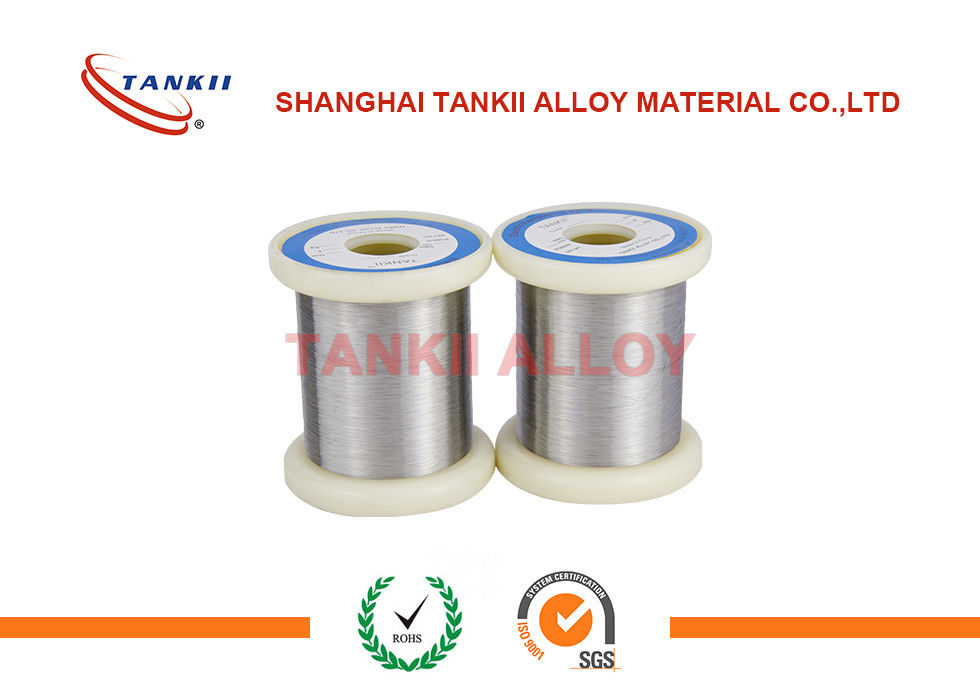

Fecral AlloyElectric Resistance Wire Round Flat For Tubular Heater 0Fecral AlloyElectric Resistance Wire Round Flat For Tubular Heater 1
