Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: Ni201
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film according to the client´s requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200+TON+MONTH
Ni: |
≥99.5% |
Characteristic: |
Lower Resistivity, High Melting Point, Good Machanical Property |
Usage: |
Mechanical Machinery , Radio |
Name: |
Ni201, Ni200, N4, N6 |
Type: |
Wire / Rod / Bar / Strip / Plate |
Payment Item: |
EXW, FOB, CIF,CFR,CPT... |
Ni: |
≥99.5% |
Characteristic: |
Lower Resistivity, High Melting Point, Good Machanical Property |
Usage: |
Mechanical Machinery , Radio |
Name: |
Ni201, Ni200, N4, N6 |
Type: |
Wire / Rod / Bar / Strip / Plate |
Payment Item: |
EXW, FOB, CIF,CFR,CPT... |

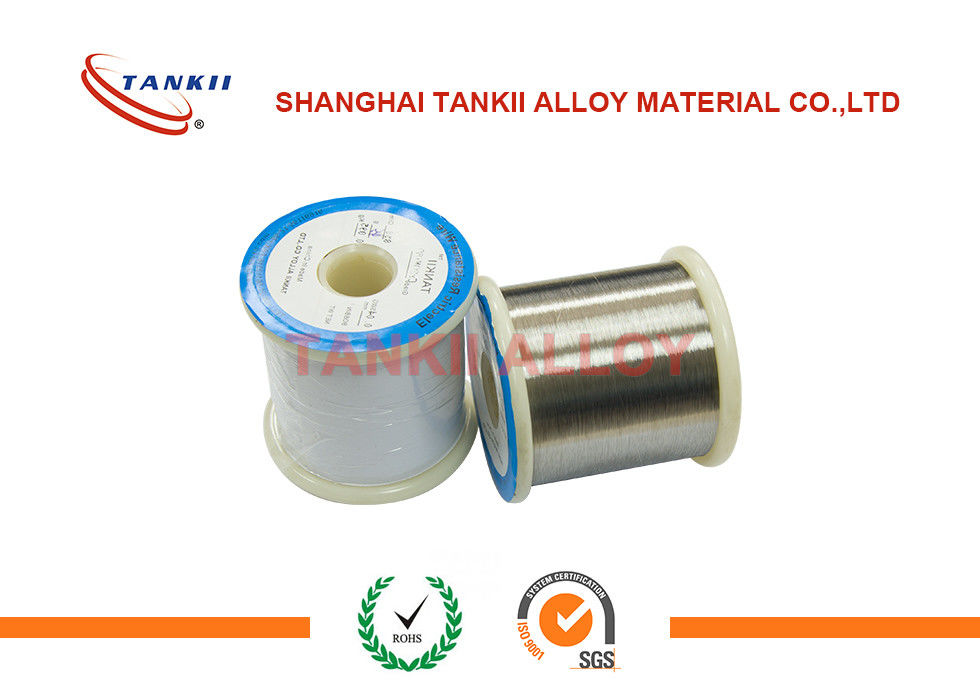

Pure Nickel Alloys Wire Ni201 Ni200 High Conductivity For Positive Electrode
Nickel and its alloys are frequently used as catalysts for hydrogenation reactions. Raney nickel, a finely divided nickel-aluminium alloy, is one common form, though related catalysts are also used, including Raney-type catalysts.
Pure nickel wire has good high temperature strength, the characteristics of low resistivity.
Nickel wire series products are: nickel wire, pure nickel wire, nickel wire, nickel wire, 0.025 mm N4 interchange nickel wire, nickel N6 wire;Nickel wire highest purity can reach 99.99%!!!!!!.The finest can reach 0.025 mm!
Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.
The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300ºC.
Pure nickel wire production cycle: 3 to 7 days or so
State: hard /half hard/soft
1. Characteristics
1, have solderability, high electrical conductivity, appropriate linear expansion coefficient
2, good high temperature strength, low resistivity
3, high melting point, corrosion resistance, good mechanical performance, under the hot cold state has good pressure workability, degassing, suitable for radio, electric light source, machinery manufacturing, chemical industry, are important structural materials in the vacuum electronic devices.
2. Application:
Pure nickel wire is suitable for radio, lighting, mechanical manufacture, chemical industry, is of important structural materials in the vacuum electronic devices, can also be as thread lead in the bulb.
Pure Nickel Wire
99.6% purity, 99.8% purity
Diameter: 0.025mm to 3.0mm
3. Properties
Name |
Nickel wire |
Material |
Ni200, Ni201 |
Color |
bright, oxidized |
Size |
Dia 0.025mm-0.6mm Coil / Straight/Spool |
Standard |
ASTM B880-1988 |
Surface |
Polished |
Standard |
ASTM B160/B162, AISI,DIN,GB etc |
Application |
Electric apparatus, chemical, heating etc. |
Package |
Carton or wooden case as demanded |
Sample |
All in stock |
Certification |
Official Quality Certification and test report. |
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
0.03-0.05 |
±0.005 |
>0.50-1.00 |
±0.02 |
>0.05-0.10 |
±0.006 |
>1.00-3.00 |
±0.03 |
>0.10-0.20 |
±0.008 |
>3.00-6.00 |
±0.04 |
>0.20-0.30 |
±0.010 |
>6.00-8.00 |
±0.05 |
>0.30-0.50 |
±0.015 |
>8.00-12.0 |
±0.4 |
