Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001
Model Number: 1Cr13Al4, 0Cr25Al5, 0Cr23Al5
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton,Wooden case with plastic film according to custom's requirements
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YEAR
Nominal Composition: |
Chromium Ferro Aluminum |
Character: |
Corrosion Resistance, High Temperature Resistance |
Feature: |
Annealed Bright Surface |
Use: |
Precision Resistor, Industry Furnace Elements |
Color: |
Silver Grey |
Grade: |
1Cr13Al4, 0Cr21Al6Nb, 0Cr25Al5,0Cr23Al5, 0Cr27Al7Mo2... |
Nominal Composition: |
Chromium Ferro Aluminum |
Character: |
Corrosion Resistance, High Temperature Resistance |
Feature: |
Annealed Bright Surface |
Use: |
Precision Resistor, Industry Furnace Elements |
Color: |
Silver Grey |
Grade: |
1Cr13Al4, 0Cr21Al6Nb, 0Cr25Al5,0Cr23Al5, 0Cr27Al7Mo2... |

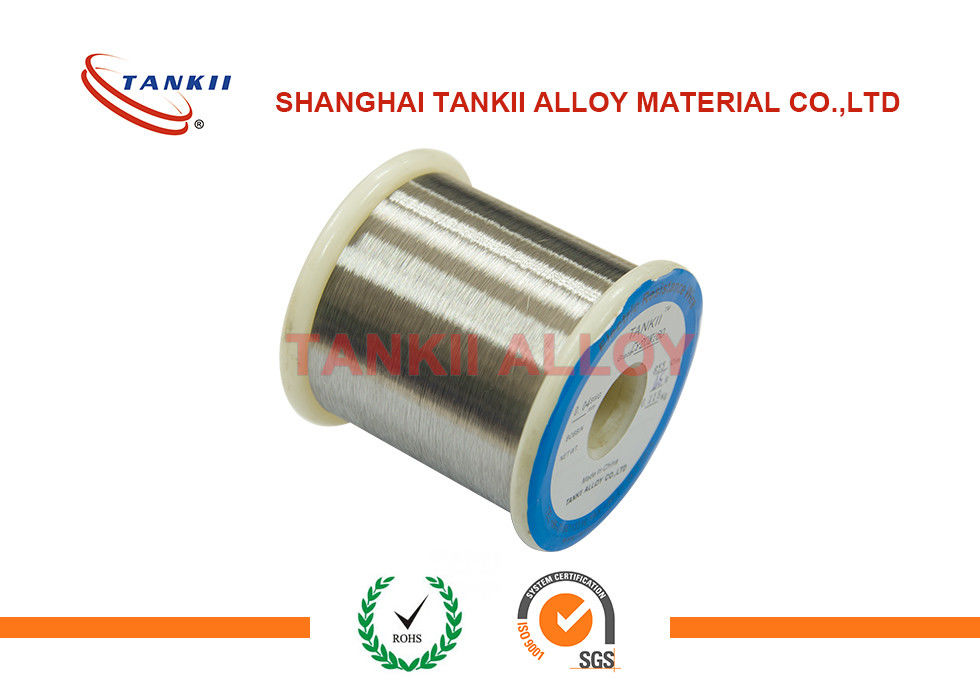

Glass Top Hobs Fecral Alloy Wire/ Strip Corrosion Resistant With Annealed Bright Surface
1) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.
2)Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm
3)Fisical Properties
| Grade | 1Cr13Al4 | 0Cr20Al6RE | 0Cr25Al5 | 0Cr23Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 |
| Resistivity(μΩm)(20°C) | 1.25±0.08 | 1.40±0.07 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 |
1.53±0.07 |
| Tensile Strength (N/mm²) | 588-735 | 588-735 | 634-784 | 634-784 | 634-784 | 686-784 |
| Elongation(%) | >16 | >16 | >12 | >12 | >12 | >12 |
| Bending Times | >6 | >6 | >5 | >5 | >5 | >5 |
| Max Continuous Seervice Temperature(℃) | 650 | 1000 | 1250 | 1250 | 1350 | 1400 |
| Density(g/cm3) | 7.4 | 7.1 | 7.1 | 7.25 | 7.1 | 7.1 |
4)Usage:
Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.
