Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 0Cr23Al5
Payment & Shipping Terms
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: Spool with plastic film, coil, carton wooden case
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YEAR
Color: |
Silver Grey |
Material: |
Ferro Chromium Alumnium |
Resistivity: |
1.35 |
Density: |
7.25 G/cm3 |
Conductor: |
Solid |
Condition: |
Soft, Half Hard, Hard |
Color: |
Silver Grey |
Material: |
Ferro Chromium Alumnium |
Resistivity: |
1.35 |
Density: |
7.25 G/cm3 |
Conductor: |
Solid |
Condition: |
Soft, Half Hard, Hard |

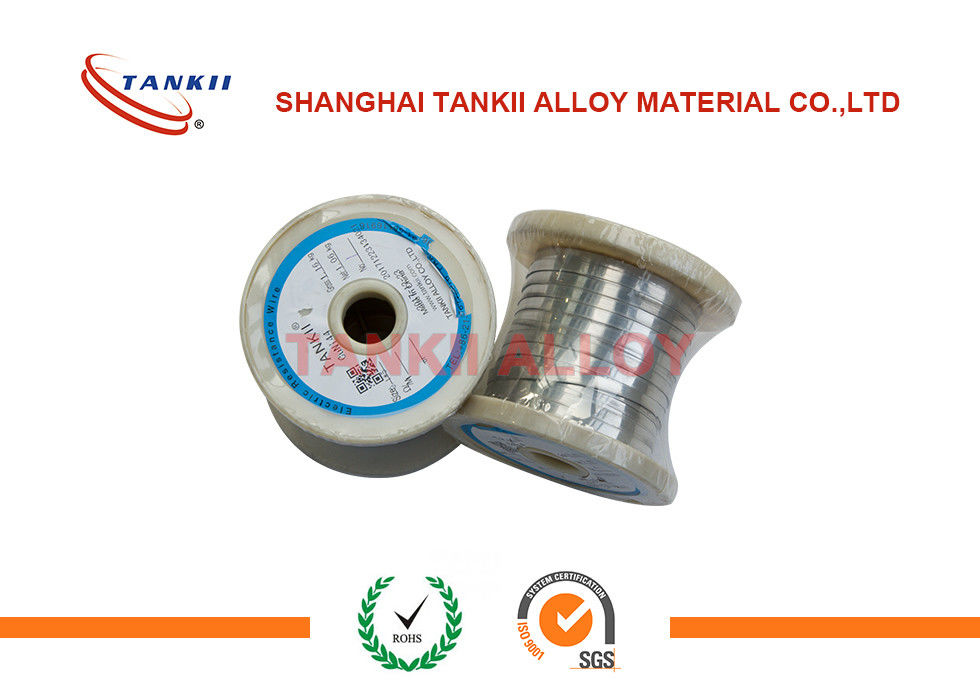

Industry Furnace Fecral Wire 0cr23al5 1.35 Resistivity Wire / Strip / Rod / Bar
1)Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm
2)Fisical Property
Max continuous work temperature: 1250℃
Resistivity 20℃: 1.35±6%
Density: 7.25g/cm3
Thermal Conductivity at 20℃: 3.46
Linear Expansion Coeffcient 20-100℃: 15
Aproximate Melting Point: 1500
Tensile Strength: 630-780
Elogation: >12
Section Variation Shrink: 65-75
Hardess(H.B.): 200-260
Magnetic Property: Magnetic
Micrografic Structure: Ferrite
3)High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.
4)Company Information
We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
Specification:
| Alloy Type | Diameter | Resistivity | Tensile | Elongation (%) |
Bending | Max. Continuous |
Working Life |
| (mm) | (μΩm)(20°C) | Strength | Times | Service | (hours) | ||
| (N/mm²) | Temperature (°C) |
||||||
| Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
| 0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| >3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
| ≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
| Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
| ≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
| Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
| ≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
| 1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
| 0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
| 0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
| 0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
| 0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
| 0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |
