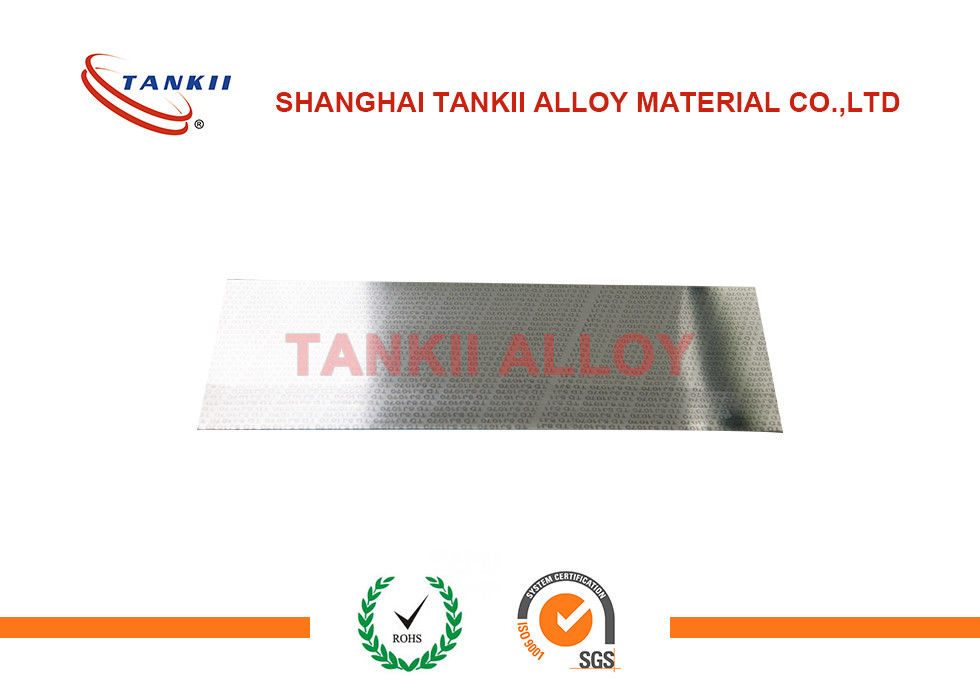

Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ROHS、SGS
Model Number: 36-10 6650 TM1
Payment & Shipping Terms
Minimum Order Quantity: 50KG
Price: negotiation
Packaging Details: Wooden Case
Delivery Time: 15~30 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 Tons Per Year
Than Bending: |
20.5 |
Resistivity: |
1.12 |
Density: |
7.7g/cm³ |
Allows The Use Of Temperature: |
-70~260 |
Linear Temperature: |
-20~200 |
Temperature Curvature: |
39.4 |
Modulus Of Elasticity: |
1.38 |
Use: |
Temperature Compensation Element |
Features: |
High Resistivity |
Name: |
36-10 6650 TM1 |
Than Bending: |
20.5 |
Resistivity: |
1.12 |
Density: |
7.7g/cm³ |
Allows The Use Of Temperature: |
-70~260 |
Linear Temperature: |
-20~200 |
Temperature Curvature: |
39.4 |
Modulus Of Elasticity: |
1.38 |
Use: |
Temperature Compensation Element |
Features: |
High Resistivity |
Name: |
36-10 6650 TM1 |
| shop sign | ||
| With brand | ||
| Composite layer alloybrand |
High expansion layer | Mn75Ni15Cu10(Mn72Ni10Cu18) |
| middle layer | -------- | |
| Low expansion layer | Ni36 | |
Chemical composition
| shop sign | Ni | Cr | Fe | Co | Cu | Zn | Mn | Si | C | S | P |
| ≤ | |||||||||||
| Ni36 | 35.0~37.0 | - | allowance | - | - | - | ≤0.6 | ≤0.3 | 0.05 | 0.02 | 0.02 |
| Mn72Ni10Cu18 | 8.0~11.0 | - | ≤0.8 | - | 17.0~19.0 | - | allowance | ≤0.5 | 0.05 | 0.03 | 0.02 |
| Mn75Ni15Cu10 | 14.0~16.0 | - | ≤0.8 | - | 9.0~11.0 | - | allowance | ≤0.5 | 0.05 | 0.02 | 0.03 |
performance
| Than bending K(20~135ºC) | Temperature curvature F/(greenhouse ~ 130 ºC) |
resistivity | Linear temperature / ºC |
Allows the use of temperature / ºC | Density (g/cm after) | |||
| Nominal value | Allowable deviation | Standard values | Allowable deviation | |||||
| Level 1 | Level 2 | |||||||
| 20.8 | ±5% | ±7% | 39.0%±5% | 1.13 | ±5% | -20~150 | -70~200 | 7.7 |
| Modulus of elasticity E/GPa |
Hardness (HV) | Tensile strength MPa |
Allow stress MPa | ||
| High expansion layer | Low expansion layer | minimum | biggest | ||
| 113~142 | 190~240 | 200~255 | 736~834 | 147 | 294 |
Overview
Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.
The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.
System of heat treatment: heat sensitive resistance, resistivity and elastic modulus of samples before the measurement must undergo heat treatment, to eliminate stress.
Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction
