Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: SGS
Model Number: Ni foil
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 tons per month
Material: |
Pure Nickel |
Color: |
Silver White |
Shape: |
Strip / Foil |
Width: |
1330 Max |
Thickness: |
5um-50um |
Material: |
Pure Nickel |
Color: |
Silver White |
Shape: |
Strip / Foil |
Width: |
1330 Max |
Thickness: |
5um-50um |

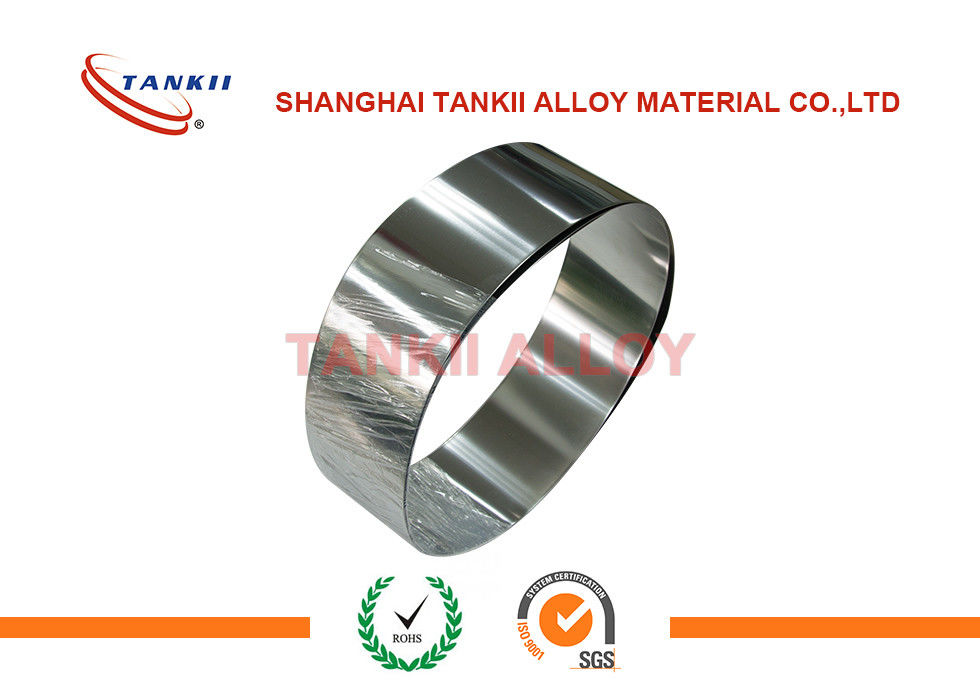

0.005mm-0050mm, Electrolytic Pure Iron Nickel Foil Invar36 / Ni200 Pure Foil Strip
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.2 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
Propertis
| Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity | |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C | 13.1µm/m °C(20-100°C) | 82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specification of Cold-drawing Strip Type
| Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
| 0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
| >0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
| >0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
| >0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
| >1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
| >1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
| >2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
Application:
Electromagnetic shielding, touch screen, special transformers, special batteries, lithium batteries, energy storage batteries, high-end speakers and other production areas
