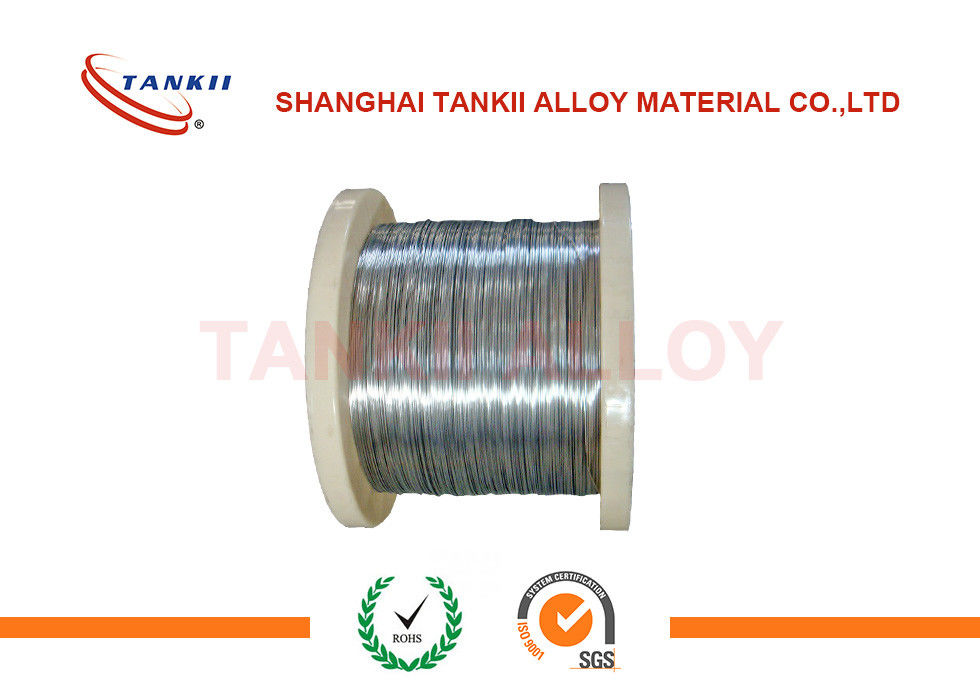

Pure Nickel Manganese Alloy Wire 0.25mm Din200 Spool Nimn2 / Ni212 / Ni200

Product Details

Place of Origin: Shanghai china,

Brand Name: TANKII

Certification: SGS

Model Number: NiMn2

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Spool+box+ wooden case

Delivery Time: 7-10days

Payment Terms: L/C, T/T, Western Union,paypal

Supply Ability: 200 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome resistance wire

Size::
0.01-6.0
Material:
Nickel Manganese Alloy
Shape:
Wire, Strip, Ribbon, Stranded Wire,Rod
Purity:
98%Ni
Size::
0.01-6.0
Material:
Nickel Manganese Alloy
Shape:
Wire, Strip, Ribbon, Stranded Wire,Rod
Purity:
98%Ni
Description
Pure Nickel Manganese Alloy Wire 0.25mm Din200 Spool Nimn2 / Ni212 / Ni200

1.Description
Manganese compounds have been used by man for thousands of years. The ancient Egyptians and Romans used manganese compounds

for dyeing in glass manufacture. In 1774 Johann Gottlieb Gahn succeeded in extracting pure manganese from brownstone. In the structure

of the earth's crust manganese is the second most common heavy metal after iron.
Important manganese ore deposits are to be found in South Africa, Australia, India, China, Mexico, Ukraine and Russia amongst others.
"Manganese nodules" can also be found in the deep sea.


2.Properties

Chemical Content

  Ni Mn Si
Chemical Content( %) Bal. 1.5~2.2 0.1Max


Mechanical Properties

Resisivity at 20ºC 11.5 microhm cm
Density 8.81 g/cm3
Thermal Conductivity at 100ºC 41 Wm-1 ºC-1
Linear Expansion Coefficient(20~100ºC) 13×10-6/ ºC
Melting Point(Approx.) 1435ºC/2615ºF
Tensile Strength 390~930 N/mm2
Elongation Min 20%
Temperature Coefficient of Resistance(Km, 20~100ºC) 4500 x 10-6 ºC
Specific Heat(20ºC) 460 J Kg-1 ºC-1
Yield Point 160 N/mm2



3. Specification
diameter:0.01mm-6.0mm


4.Usage
The nickel-based electric vacuum material produced by Ualloy has below
advantages: excellent electrical conductivity, weldability (welding, brazing), can be
electroplated, and a suitable linear expansion coefficient of the alloy inclusions,
volatile elements and gases content is low. Processing performance, surface quality,
corrosion resistance, and can be used to make the anode, spacers, electrode holder, etc., but also can lead filament bulbs, fuses.


5. Features
The company electrode material (conductive material) having a low resistivity, high temperature strength, the smaller the arc melting

under the action of evaporation and so on.


6. Products and services
1). Fine after-sale services;
2). Small order accepted;
3). Fast delivery;



Pure Nickel 200



Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical

properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment.

Nickel 200 is useful in any environment below 600℉(315℃). It has highly resistance to neutral and alkaline salt solutions.

Nickel 200 also has low corrosion rates in neutral and distilled water.

The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries,

computers, cellular Phone, power tools, camcorders and so on.



Chemical Composition

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 200 Min 99.2 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.15 Max 0.01

Physical Data

Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.℃)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446℃
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.℃



Pure Nickel Manganese Alloy Wire 0.25mm Din200 Spool Nimn2 / Ni212 / Ni200 0
