1J85 Permalloy Wire Magnifer 7904 Soft Magnetic Alloy Wire Ni80Mo5 Feni 85 For Magnetic Head

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: Rosh, SGS

Model Number: Magnifer 7904

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiable

Packaging Details: Wooden case, Pallet

Delivery Time: 7~30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 Tons/year

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

kovar alloy

Type:
Wire
Material:
FeNi
Condition:
Soft / Hard
Diameter:
0.03~5mm
Curie Point:
400
Density:
8.75
Resistivity:
0.56
Type:
Wire
Material:
FeNi
Condition:
Soft / Hard
Diameter:
0.03~5mm
Curie Point:
400
Density:
8.75
Resistivity:
0.56
Description
1J85 Permalloy Wire Magnifer 7904 Soft Magnetic Alloy Wire Ni80Mo5 Feni 85 For Magnetic Head

Soft magnetic alloys 1J85 / FeNi 85 / Ni80Mo5:

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.

The following are details of our products 1J85:

Chemical composition

composition C P S Mn Si
Content(%) 0.03 0.02 0.02 0.3~0.6 0.15~0.3



composition Ni Cr Mo Cu Fe
Content(%) 79.0~81.0 - 4.8~5.2 ≤0.2 Bal

Heat treatment system

shop sign Annealing medium heating temperature Keep the temperature time/h Cooling rate

1j85
Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa Along with the furnace heating up 1100~1150ºC
3~6
In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge


Permalloy magnetic shielding to do: In order to prevent interference of external magnetic field, often in CRT, an external CRT electron beam focusing section plus the magnetic shield, you can play the role of magnetic shielding.

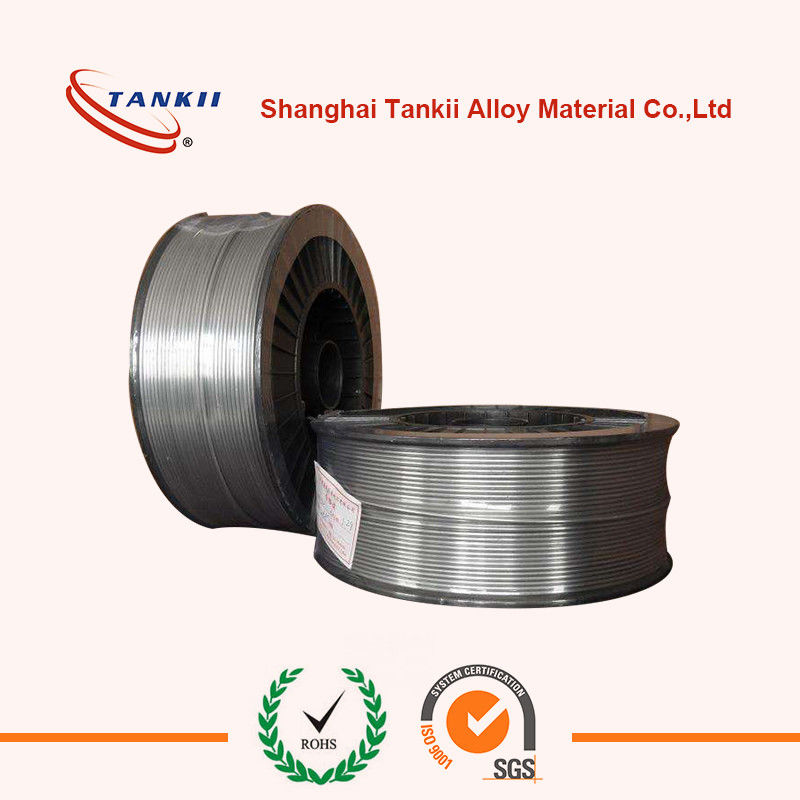

1J85 Permalloy Wire Magnifer 7904 Soft Magnetic Alloy Wire Ni80Mo5 Feni 85 For Magnetic Head 01J85 Permalloy Wire Magnifer 7904 Soft Magnetic Alloy Wire Ni80Mo5 Feni 85 For Magnetic Head 1
