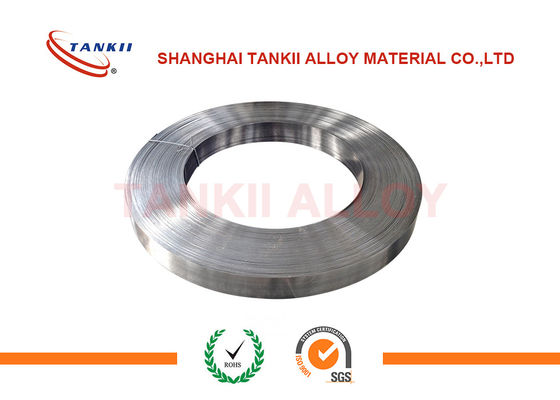

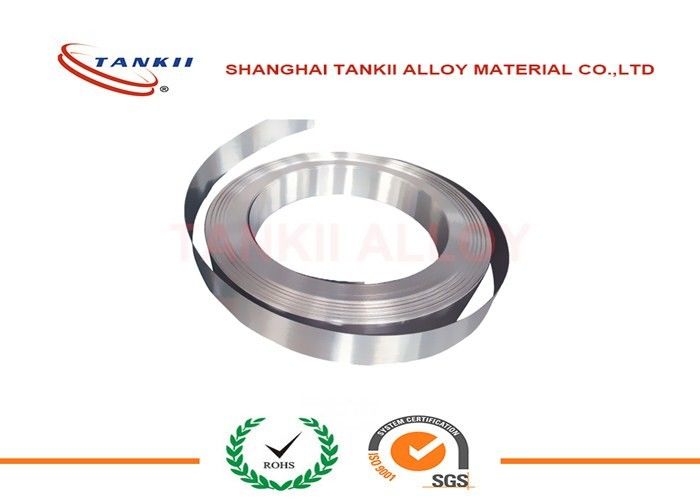

Precision Alloy Thermal Bimetal Strip 5J1325B For Fuseless Breakers

Product Details

Place of Origin: shanghai

Brand Name: TANKII

Certification: iso

Model Number: 5J1325B

Payment & Shipping Terms

Minimum Order Quantity: 80

Price: Negotiable

Packaging Details: wooden case

Delivery Time: 20 days

Payment Terms: T/T, D/A, L/C

Supply Ability: 50 + Tons + month

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

precision tubing

Use:
Fuseless Breakers
Density:
8.3
Resistivity:
0.2
Bending:
12.3
Temperature Curvature:
23.6±5%
Shop Sign:
5J1325B
Flexivity(10~90℃×10-6/℃):
24.7
Flexivity(40~150℃×10-6/℃):
23.9
Specific Deflection:
13.1
Use:
Fuseless Breakers
Density:
8.3
Resistivity:
0.2
Bending:
12.3
Temperature Curvature:
23.6±5%
Shop Sign:
5J1325B
Flexivity(10~90℃×10-6/℃):
24.7
Flexivity(40~150℃×10-6/℃):
23.9
Specific Deflection:
13.1
Description
Precision Alloy Thermal Bimetal Strip 5J1325B For Fuseless Breakers

Thermal Bimetal Strip 5J1325B for Fuseless breakers



Thermal bimetal yuan layer with low thermal expansion coefficient, the passive layer;Another group of yuan layer with high thermal expansion coefficient, to active layer.Sometimes, in order to obtain special properties of thermal bimetal, can also join the third or fourth layer metal or alloy.Usually, the passive layer are type invar alloy containing Ni34 ~ 50%;Active layer, the brass, Ni, Fe - Ni - Cr, Fe - Ni - Mn and Mn - Ni - Cu alloy, etc.Through different combination of active and passive layer material, you can get different kinds of thermal bimetal, such as high temperature, medium temperature, low temperature, high sensitive, corrosion resistant, resistance and quick action, etc.



The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.


Main features: Linear temperature range is higher, low thermal performance, can be used at high temperature.



shop sign 5J1325B
With brand
Composite layer
alloybrand
High expansion layer Ni22Cr3
middle layer Ni
Low expansion layer Ni36



Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.60 ≤0.3 0.05 0.02 0.02
Ni ≥99.3 - ≤0.15 - ≥0.15   - - 0.15 - 0.015
Ni22Cr3 21.0~23.0 2.0~4.0 allowance - - - 0.3~0.6 0.15~0.30 0.25~0.35 0.02 0.02

production process


Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip



Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.
