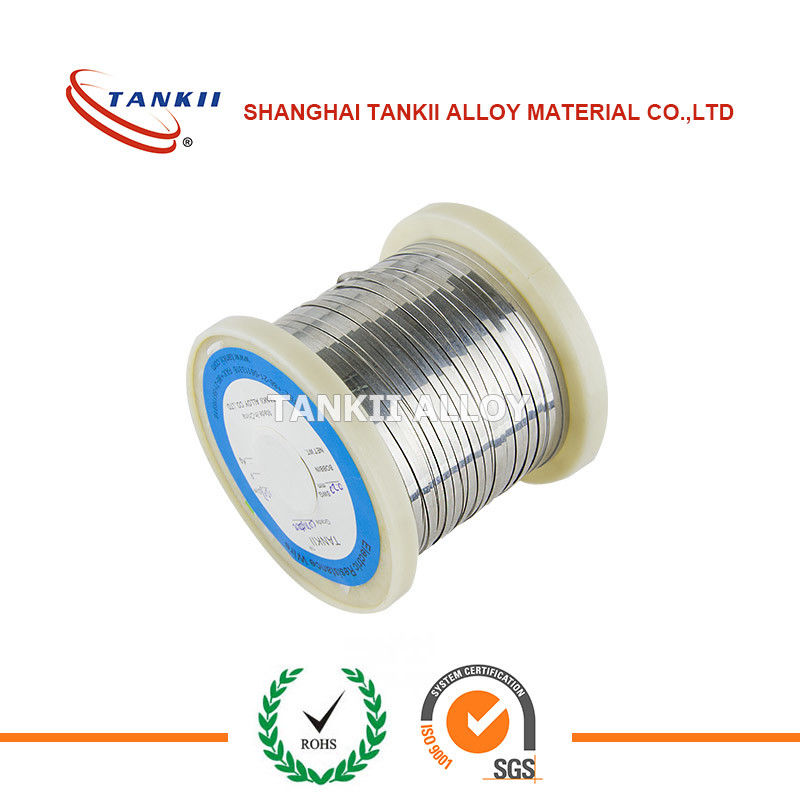

Alloy 294 Cuprothal 294 MWS-294 Cupron Nicr Alloy cupro nickel Cuprothal Eureca Flat Wire

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: SGS

Model Number: CuNi44Mn1

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: USD 15- 25 KG

Packaging Details: Spool+ Box+ Wooden Case

Delivery Time: 7-12 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome resistance wire

Sample:
Free
Purity:
44%Ni
Surface:
Bright
Standard:
GB/ASTM
Size:
0.79x0.2mm
Application:
Heating / Resistance / Resistor
Resistivity 20C:
0.49+/-3%
HS Code:
7409400000
Sample:
Free
Purity:
44%Ni
Surface:
Bright
Standard:
GB/ASTM
Size:
0.79x0.2mm
Application:
Heating / Resistance / Resistor
Resistivity 20C:
0.49+/-3%
HS Code:
7409400000
Description
Alloy 294 Cuprothal 294 MWS-294 Cupron Nicr Alloy cupro nickel Cuprothal Eureca Flat Wire

cupro nickel Cuprothal, Alloy 294, Cuprothal 294, MWS-294, Cupron, Copel, Alloy 45, Eureca Flat Wire



Introduction


Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.


Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %


Ni

Mn

Fe

Si

Cu

Other

ROHS Directive

Cd

Pb

Hg

Cr

44

1.50%

0.5

-

Bal

-

ND

ND

ND

ND



Size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm




Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy
PropertiesGrade CuNi1 CuNi2 CuNi6 CuNi8 CuMn3 CuNi10
Main Chemical Composition Ni 1 2 6 8 _ 10
Mn _ _ _ _ 3 _
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service Temperature(ºC) 200 200 200 250 200 250
Resisivity at 20ºC (Ω*mm²/m) 0.03 0.05 0.1 0.12 0.12 0.15
Density(g/cm³) 8.9 8.9 8.9 8.9 8.8 8.9
Thermal Conductivity(α×10-6ºC) <100 <120 <60 <57 <38 <50
Tensile Strength(Mpa) ≥210 ≥220 ≥250 ≥270 ≥290 ≥290
EMF vs Cu(μVºC)(0~1000ºC) -8 -12 -12 -22 _ -25
Approximate Melting Point(ºC) 1085 1090 1095 1097 1050 1100
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non non

PropertiesGrade CuNi14 CuNi19 CuNi23 CuNi30 CuNi34 CuNi44
Main Chemical Composition Ni 14 19 23 30 34 44
Mn 0.3 0.5 0.5 1 1 1
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service TemperatureºC) 300 300 300 350 350 400
Resisivity at 20ºC (Ω*mm²/m) 0.2 0.25 0.3 0.35 0.4 0.49
Density(g/cm³) 8.9 8.9 8.9 8.9 8.9 8.9
Thermal Conductivity(α×10-6ºC) <30 <25 <16 <10 <0 <-6
Tensile Strength(Mpa) ≥310 ≥340 ≥350 ≥400 ≥400 ≥420
EMF vs Cu(μVºC)(0~1000ºC) -28 -32 -34 -37 -39 -43
Approximate Melting Point(ºC) 1115 1135 1150 1170 1180 1280
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non non



 Applications
It is suilable for electrical resistors, potentiometers, heating wires, heating cables and underground heating mesh; braiding and shielding in flexible coaxial cable and communication cable, a variety of

audio and video cable, vehicle signal cable, network cable, data transmission cables ang so on.



OTHER Chemical Composition And Main Properties

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
