C17200 TM04 Aging hardening treatment Beryllium Copper Strip 300HV

Product Details

Place of Origin: SHANGHAI

Brand Name: Tankii

Certification: SGS,ROHS

Model Number: C17200 QBe2

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: usd + 24.7 + kg

Packaging Details: Wooden case

Delivery Time: 10-15 day

Payment Terms: L/C, T/T

Supply Ability: 50 + Ton + Month

Get Best Price
Contact Now
Specifications
Highlight:

copper metal sheet

,

thin copper sheet

Density:
8.36 G/cm3
Elastic Modulus:
13.4 Kg/mm2 (103)
Thermal Expansion Coefficient:
17 X 10-6
Melting Range:
870-980 °C
Density:
8.36 G/cm3
Elastic Modulus:
13.4 Kg/mm2 (103)
Thermal Expansion Coefficient:
17 X 10-6
Melting Range:
870-980 °C
Description

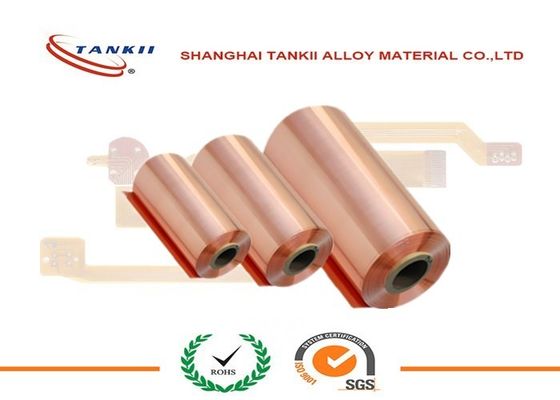

C17200 TM04 Aging hardening treatment Beryllium Copper Strip 300HV
C17200 TM04 Aging hardening treatment Beryllium Copper Strip,300HV hardnessQBe2

Product Description
copper beryllium manufacturer
Unusual wear resistance
High property levels
High yield strength
High hardness values


C17200 TM04 beryllium copper strip

Beryllium Copper Chemical Composition
ASTM Cu Ni Co Be
C17200 Balance 0.1 0.1 1.80-2.10
C17000 Balance 1 1 1.60-1.85
C17300 Balance 1 1 1.85-2.10
ASTM Cu Ni Co Be
C17500 Balance - 2.4-2.7 0.4-0.7
C17510 Balance 1.4-2.2 0.3 0.2-0.6

beryllium copper C17200

Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

Chemical Composition
Element Component
Be 1.85-2.10%
Co+Ni 0.20% Min
Co+Ni+Fe 0.60% Max.
Cu Balance

Typical Physical Properties
Density (g/cm3) 8.36
Density before age hardening (g/cm3 8.25
Elastic Modulus (kg/mm2 (103)) 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)) 0.25
Melting Range (°C) 870-980

Mechanical property (Before Hardening treatment) :
status Tensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
( IACS%)
Elongation
(%)
H 70-85 210-240 22 2-8
1/2H 60-71 160-210 22 5-25
0 42-55 90-160 22 35-70

After Hardening treatment
Brand Tensile strength
(Kg/mm3)
Hardness
(HV)
Conductivity
(IACS%)
Elongation
(%)
C17200-TM04 93-1030 280-340 ≥17 ≥9

Features

1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

Our product are in the form of wire, ribbon, strip, coil.

Round wire
Ribbon (flat wire)
Strip / foil
Stranded wire
Sheet / plate
Features


1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

PRODUCT APPLICATION

Applications

Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting

machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,

stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,

worm gear etc.

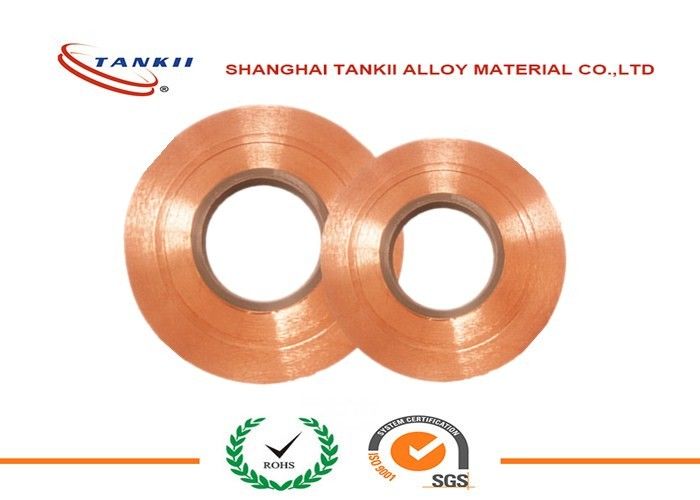

C17200 TM04 Aging hardening treatment Beryllium Copper Strip 300HV 0
